Speed ZTR 54 (967035101) - Dixon 54" Speed ZTR Zero-Turn Mower (2012-03) WHEELS TIRES Parts Diagram

54" SpeedZTR Zero-Turn Mower

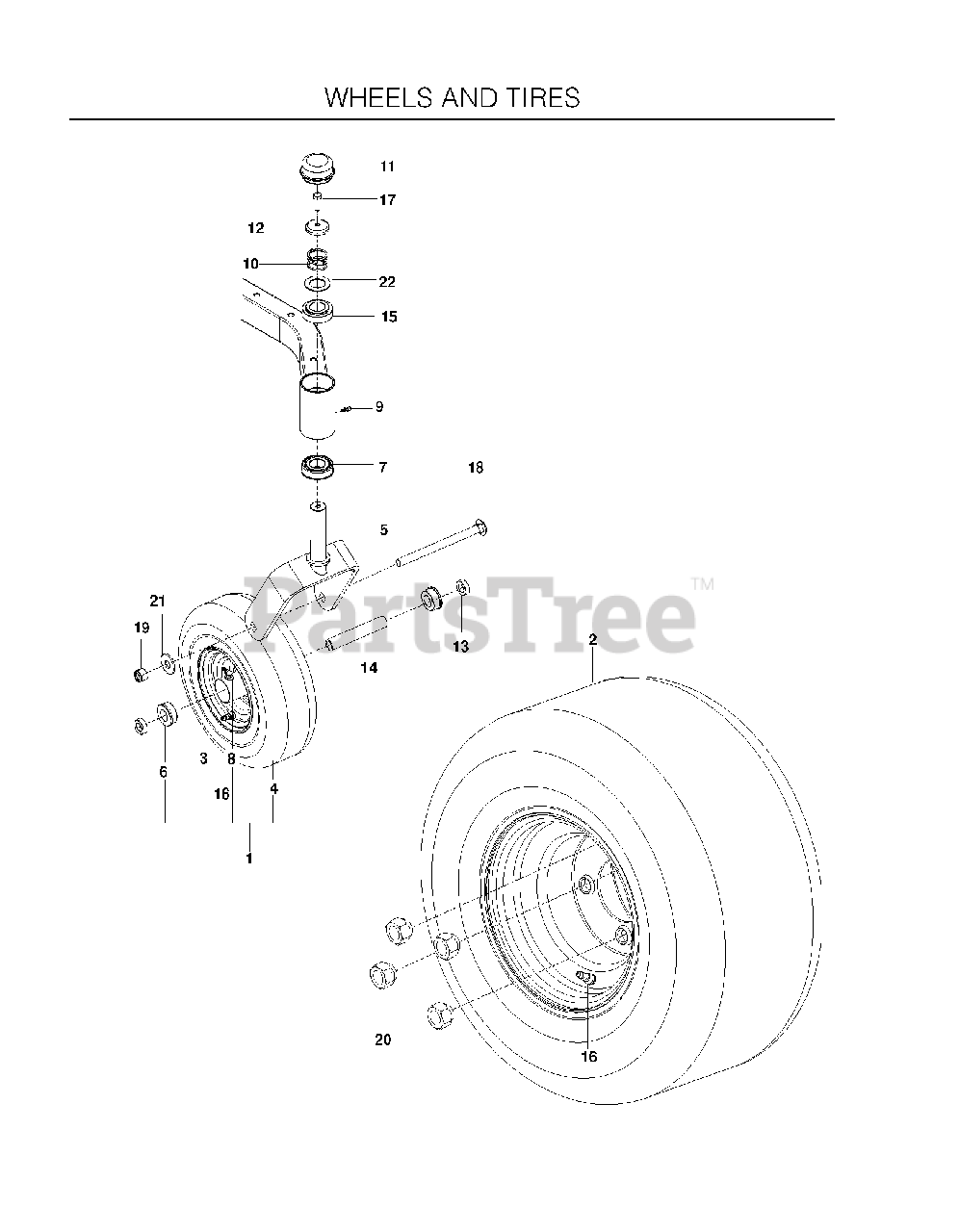

WHEELS TIRES Parts Diagram

  • Title

1

Dixon 576588601

WHEEL ASSY, WIDE, RZ
(Superseded to 576588602)

$125.99

$

In Stock, Qty 20+

0

2

Dixon 539130820

TIRE/WHEEL ASM 18X9.5-8
(Superseded to 579753401)

$265.99

$

Usually ships in 3-10 days

0

3

Dixon 577429001

WHEEL 3.0 X 5.0

$

$

Not available

4

Dixon 577428901

TIRE 11X6-5, 4 PLY

$

$

Not available

5

Dixon 539123593

CASTER DK BLUE

$103.99

$

Usually ships in 3-10 days

0

6

Dixon 576617801

BUSHING, WHEEL, 3/4"

$6.49

$

In Stock, only 4 left!

0

7

Dixon 539112660

BEARING FLANGED

$34.99

$

In Stock, Qty 20+

0

8

Dixon 539103300

ZERK
(Superseded to 542164296)

$3.49

$

Usually ships in 3-10 days

0

9

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

Usually ships in 3-10 days

0

10

Dixon 539115747

SPRING, CASTER

$

$

Not available

11

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

In Stock, Qty 20+

0

12

Dixon 539115749

CASTER.PLUG

$

$

Not available

13

Dixon 539114805

SPACER, 5/16"

$13.99

$

In Stock, Qty 17

0

14

Dixon 539105543

SPACER

$11.99

$

In Stock, Qty 20+

0

15

Dixon 539117901

BUSHING, CASTER

$11.99

$

In Stock, Qty 20+

0

16

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

17

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

18

Dixon 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$24.99

$

Usually ships in 3-10 days

0

19

Dixon 539200100

NUT 1/2-13 HEX CNTRLK GR 5 ZD

$6.49

$

In Stock, Qty 10

0

20

Dixon 539101173

LUG NUT 1/2F

$

$

Not available

21

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

22

Dixon 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available
