Speed ZTR 54 (967035101) - Dixon 54" Speed ZTR Zero-Turn Mower (2012-03) SEAT Parts Diagram

54" SpeedZTR Zero-Turn Mower

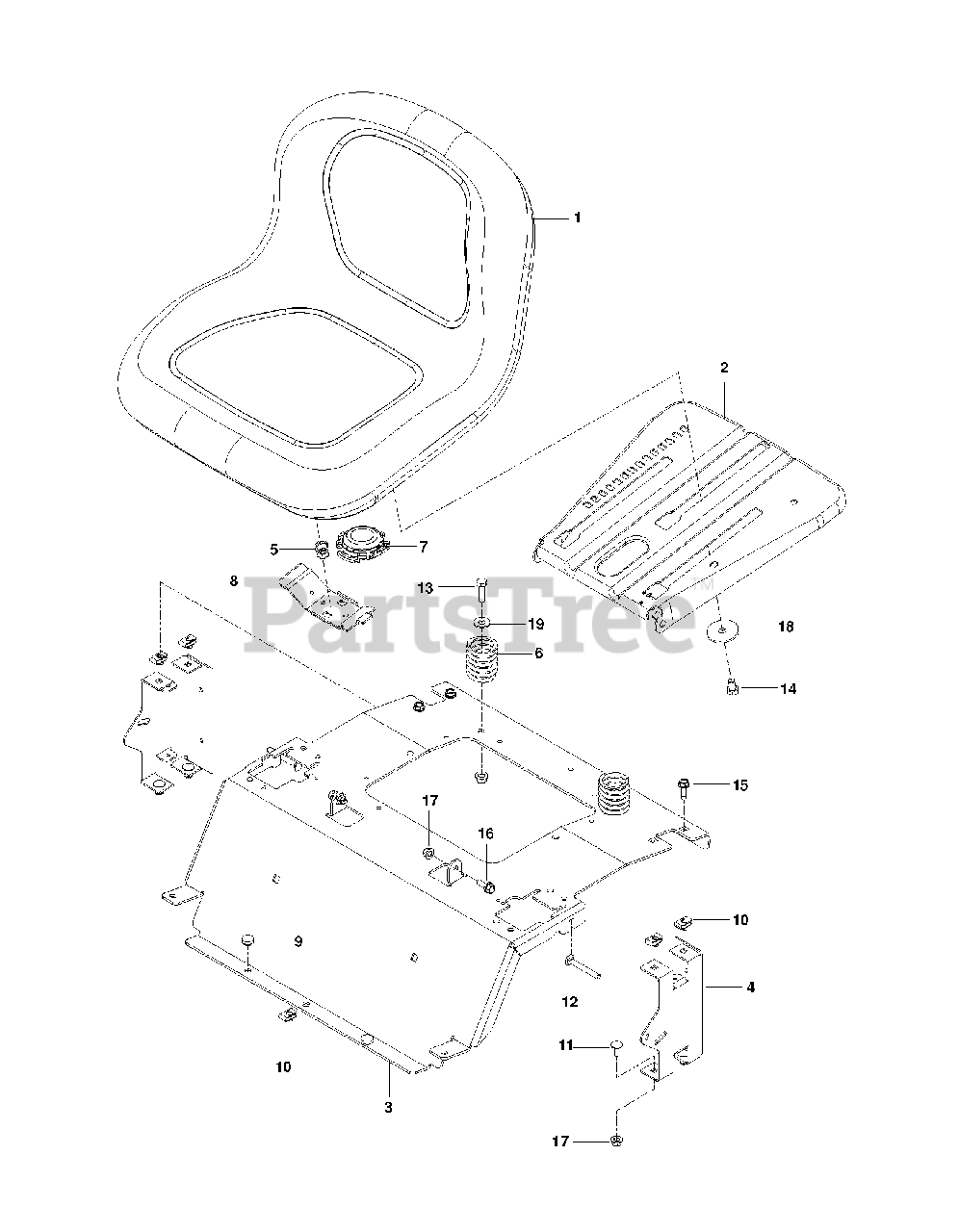

SEAT Parts Diagram

  • Title

1

Dixon 532406625

SEAT.TG150.BLK.NLOGO.

$265.99

$

Usually ships in 3-10 days

0

2

Dixon 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

3

Dixon 577260504

SUPPORT SEAT BLUE

$103.99

$

Usually ships in 3-10 days

0

4

Dixon 574522702

No Description Available
(Superseded to 580308202)

$22.99

$

Usually ships in 3-10 days

0

5

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

6

Dixon 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

7

Dixon 539132140

SWITCH, SEAT N/C

$14.99

$

In Stock, only 2 left!

0

8

Dixon 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

9

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

10

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

11

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

14

Dixon 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

16

Dixon 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

17

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

18

Dixon 539111897

WASHER, 3/8 SPEC

$

$

Not available

19

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0
