Speed ZTR 54 (967035101) - Dixon 54" Speed ZTR Zero-Turn Mower (2012-03) MOWER DECK / CUTTING DECK Parts Diagram

54" SpeedZTR Zero-Turn Mower

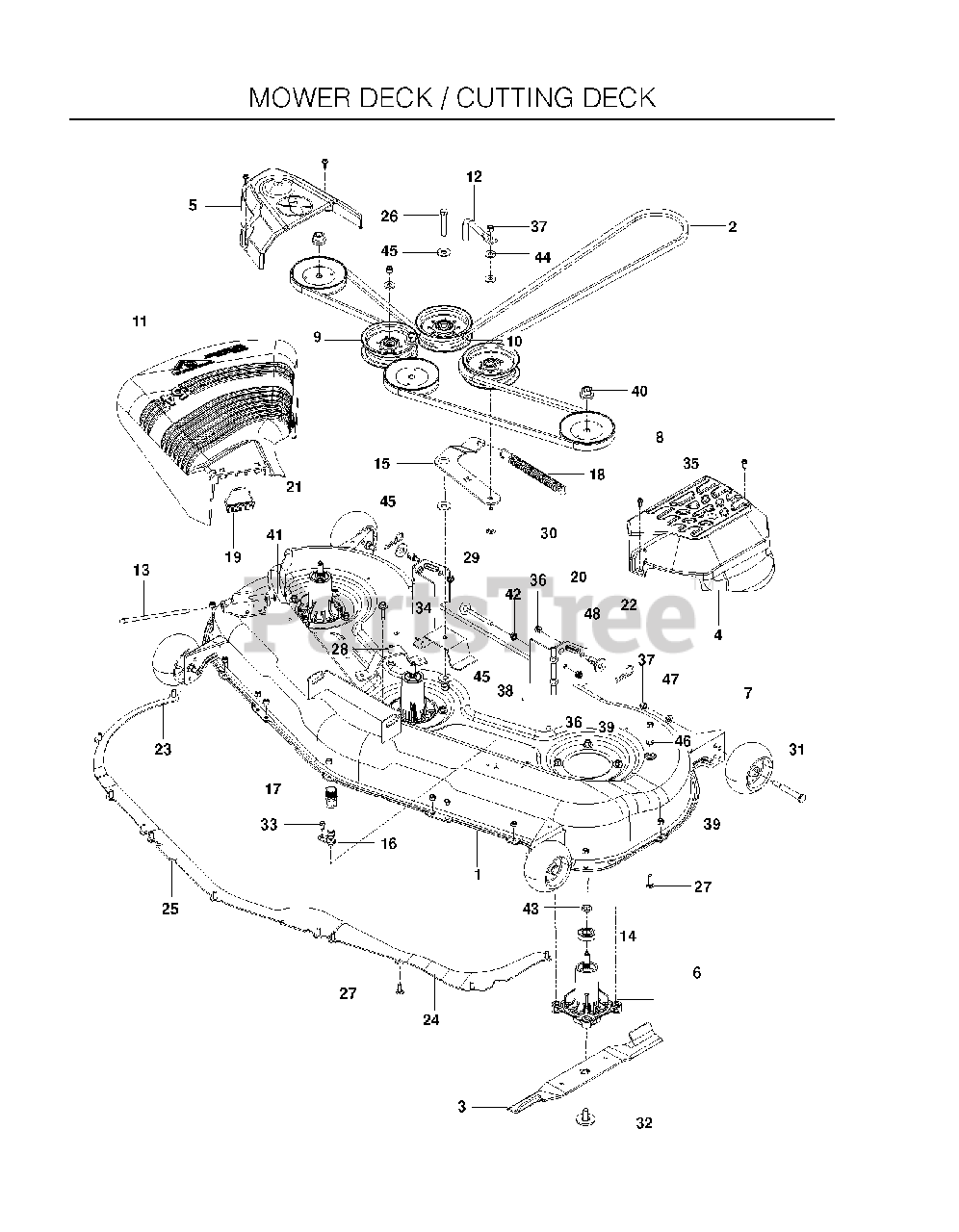

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Dixon 522745601

DECK W/DECALS - SZ54
(Superseded to 522745602)

Note: w / SAFETY DECALS

$667.99

$

Usually ships in 3-10 days

0

2

Dixon 539114557

BELT-DECK, 52

$91.99

$

In Stock, only 3 left!

0

3

Dixon 532187256

BLADE, BAGGING 54"
(Superseded to 594892901)

$22.99

$

In Stock, Qty 10

0

4

Dixon 532187297

COVER.MANDREL.LH.DECK.54"

$37.99

$

In Stock, only 1 left!

0

5

Dixon 532188187

COVER.MANDREL.RH.DECK.54"

$37.99

$

In Stock, only 1 left!

0

6

Dixon 539112057

OBSOLETE - MANDREL GREASABLE
(Superseded to 587820301)

$56.99

$

In Stock, Qty 11

0

7

Dixon 539107610

OBSOLETE - GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

8

Dixon 539112171

OBSOLETE - PULLEY
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

9

Dixon 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 10

0

10

Dixon 532196104

PULLEY.IDLER.MWR.STATI

$43.99

$

In Stock, Qty 14

0

11

Dixon 539112054

OBSOLETE - DEFLECTOR, 54"
(Superseded to 532187257)

$80.99

$

In Stock, Qty 8

0

12

Dixon 522629701

BELT KEEPER 5"

$

$

Not available

13

Dixon 539110462

OBSOLETE - ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

14

Dixon 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

15

Dixon 510220002

ARM, IDLER, BLACK

$17.99

$

Usually ships in 3-10 days

0

16

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

17

Dixon 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

18

Dixon 539120920

SPRING, DECK BELT

$

$

Not available

19

Dixon 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

20

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

21

Dixon 539107627

OBSOLETE - CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

22

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539112059

OBSOLETE - BAFFLE, RIGHT 54"
(Superseded to 532187342)

$12.99

$

Usually ships in 3-10 days

0

24

Dixon 539112060

OBSOLETE - BAFFLE LEFT 54
(Superseded to 532187344)

$

$

Not available

25

Dixon 539112062

OBSOLETE - BAFFLE, CENTER, 54"
(Superseded to 532187607)

$

$

Not available

26

Dixon 539104870

BOLT 7/16-14 X 2-1/2 GR 5 ZD
(Superseded to 874780740)

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

29

Dixon 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

30

Dixon 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

31

Dixon 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

32

Dixon 539107522

OBSOLETE - BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

33

Dixon 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 5

0

34

Dixon 539107630

OBSOLETE - WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

35

Dixon 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

36

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

37

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

38

Dixon 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

39

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

40

Dixon 539107590

OBSOLETE - LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

41

Dixon 539107626

OBSOLETE - PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

43

Dixon 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

44

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

46

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

47

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

48

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available
