Speed ZTR 54 (967035101) - Dixon 54" Speed ZTR Zero-Turn Mower (2012-03) ENGINE PLATE Parts Diagram

54" SpeedZTR Zero-Turn Mower

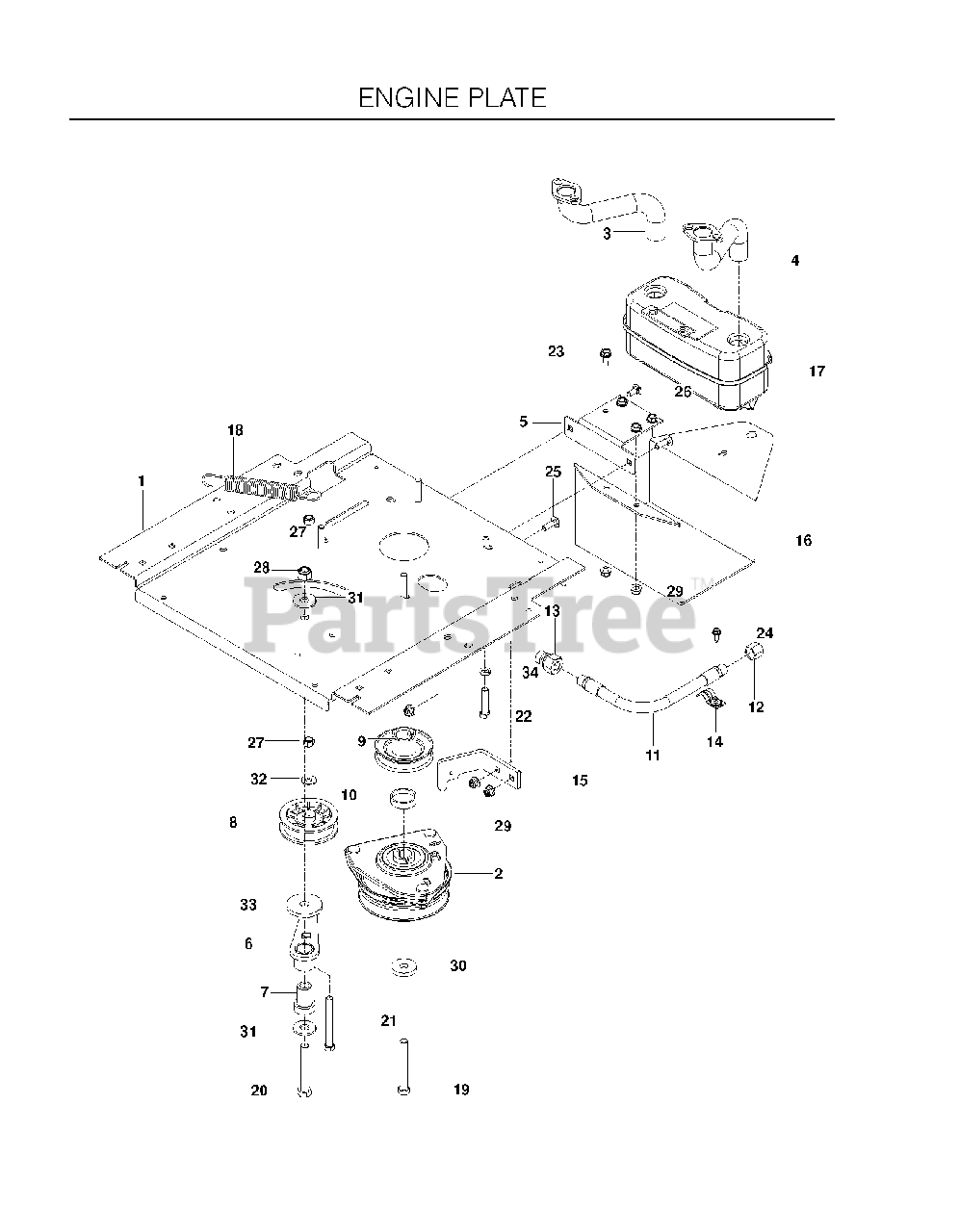

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 575327002

PLATE, ENGINE BLK
(Superseded to 532448161)

$66.99

$

Usually ships in 3-10 days

0

2

Dixon 532400008

OBSOLETE - CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

3

Dixon 532424765

TUBE.EXHAUST
(Superseded to 583955601)

$37.99

$

Usually ships in 3-10 days

0

4

Dixon 532424766

TUBE.EXHAUST
(Superseded to 583955701)

$37.99

$

Usually ships in 3-10 days

0

5

Dixon 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

6

Dixon 539112092

IDLER ARM
(Superseded to 583593901)

$13.99

$

In Stock, only 4 left!

0

7

Dixon 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

8

Dixon 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

9

Dixon 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

10

577094301

No Description Available

$

$

Not available

11

Dixon 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

12

Dixon 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

13

Dixon 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

14

Dixon 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

15

Dixon 522442506

CLUTCH STOP OGR BLK
(Superseded to 587633302)

$9.49

$

In Stock, only 1 left!

0

16

Dixon 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

17

Dixon 539131604

MUFFLER ASM TWIN

$45.99

$

Usually ships in 3-10 days

0

18

Dixon 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 8

0

19

Dixon 576968001

HCS 7/16-20 X 2.5 GR8

$4.99

$

In Stock, only 1 left!

0

20

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

21

Dixon 539109389

HCS 3/8-16X3 1/2 GR5

$5.99

$

In Stock, only 3 left!

0

22

Dixon 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

24

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

25

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

29

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Dixon 539110064

OBSOLETE - CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

31

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

32

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

33

Dixon 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0

34

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 17

0
