Speed ZTR 48 (966698602) - Dixon 48" Speed ZTR Zero-Turn Mower (2012-12) WHEELS TIRES Parts Diagram

48" SpeedZTR Zero-Turn Mower

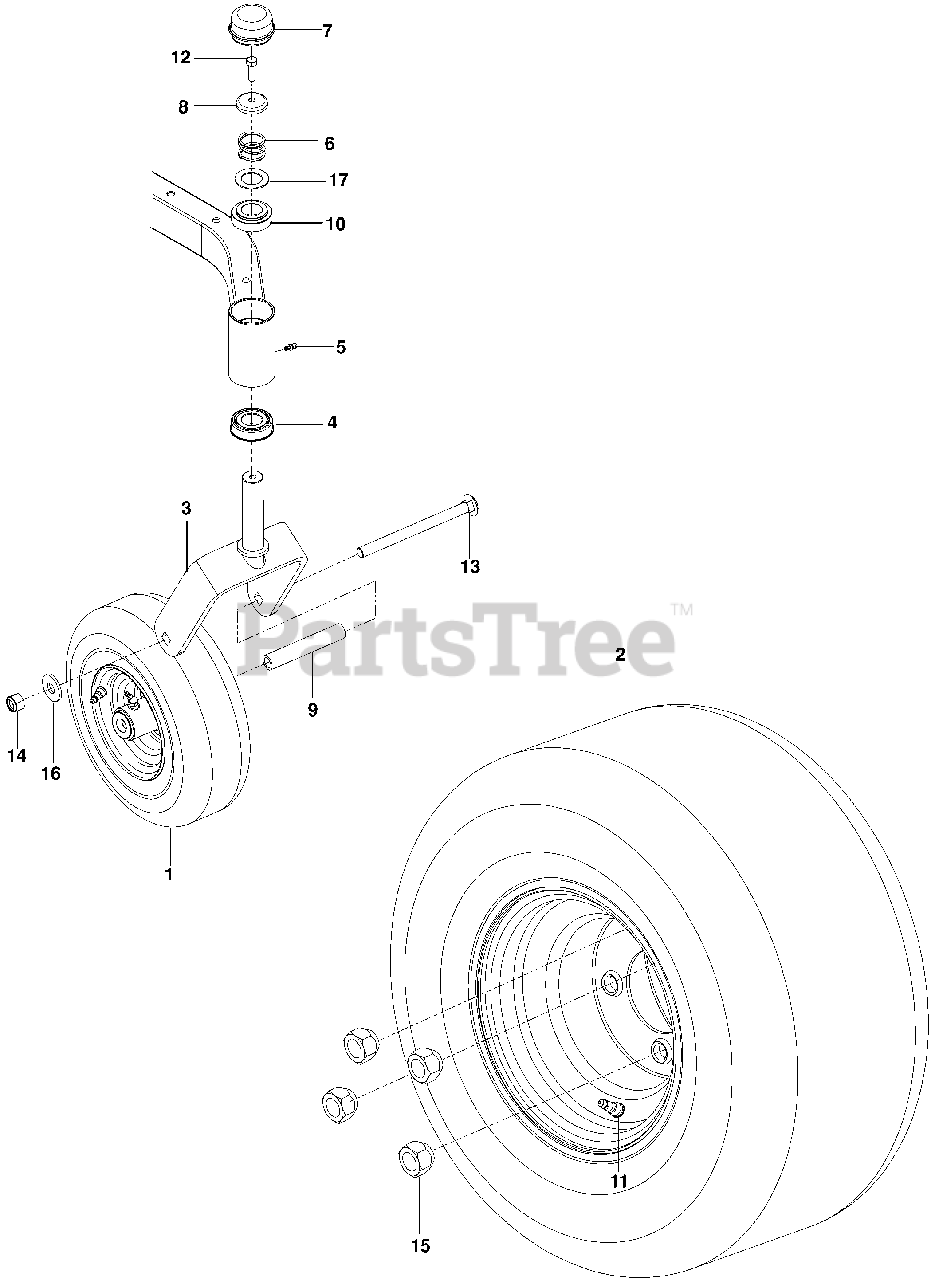

WHEELS TIRES Parts Diagram

  • Title

1

Dixon 580830801

No Description Available

$157.99

$

In Stock, only 2 left!

0

2

Dixon 580830701

No Description Available

$302.99

$

Usually ships in 3-10 days

0

3

576588801

No Description Available

$

$

Not available

4

Dixon 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

5

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

6

Dixon 539115747

SPRING, CASTER

$

$

Not available

7

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

8

Dixon 539115749

CASTER.PLUG

$

$

Not available

9

Dixon 576588901

SPACER, PIVOT

$14.99

$

Usually ships in 3-10 days

0

10

Dixon 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

11

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

12

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

13

Dixon 576601501

RHSNB 1/2-13 X 7.5
(Superseded to 576601503)

$11.99

$

In Stock, Qty 11

0

14

Dixon 539200100

NUT 1/2-13 HEX CNTRLK GR 5 ZD

$6.49

$

In Stock, only 4 left!

0

15

Dixon 539101173

LUG NUT 1/2F

$

$

Not available

16

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

17

Dixon 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available
