Speed ZTR 48 (966698602) - Dixon 48" Speed ZTR Zero-Turn Mower (2012-12) HYDRAULIC PUMP- MOTOR Parts Diagram

48" SpeedZTR Zero-Turn Mower

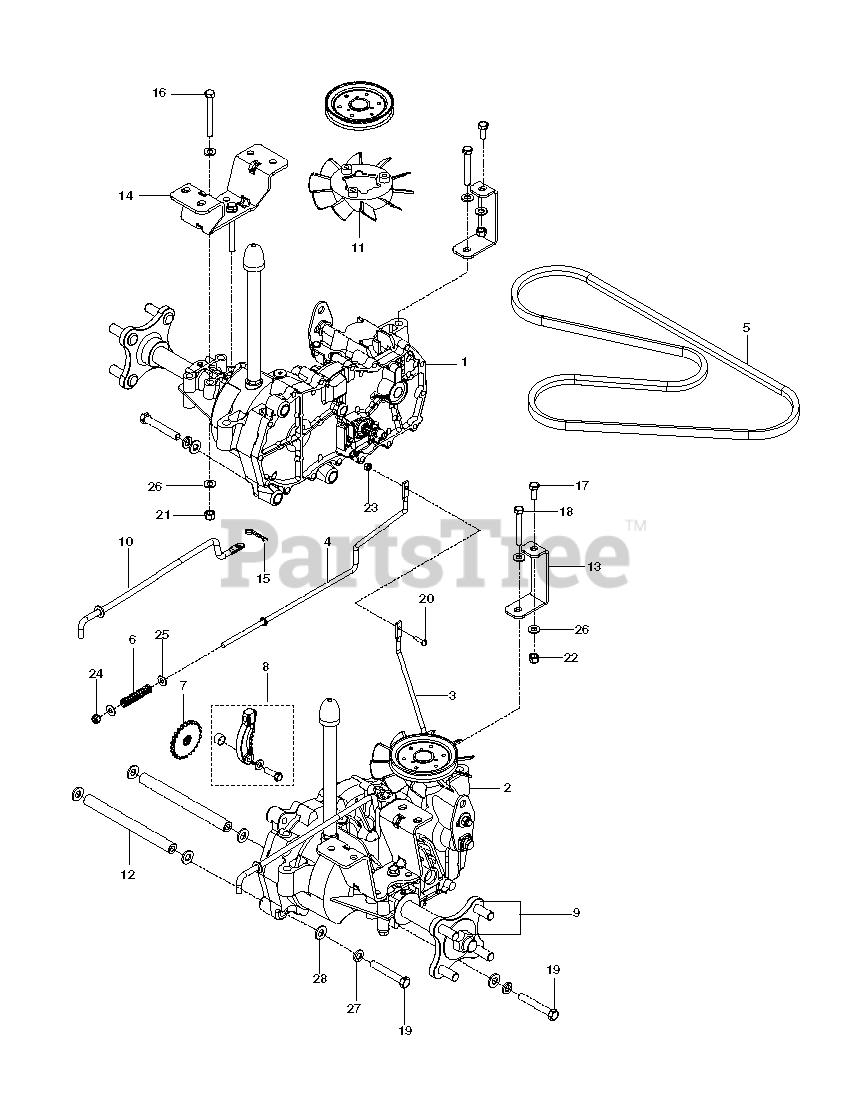

HYDRAULIC PUMP- MOTOR Parts Diagram

  • Title

1

Dixon 510375601

HG_EZT, LT

$1091.99

$

Usually ships in 3-10 days

0

2

Dixon 510375602

HG_EZT, RT

$1091.99

$

Usually ships in 3-10 days

0

3

Dixon 574030501

LINKAGE.BRAKE.LT

$

$

Not available

4

Dixon 574030502

LINKAGE, BRAKE RT

$

$

Not available

5

Dixon 539110411

BELT, HYDRO PUMP

$31.99

$

In Stock, Qty 5

0

6

Dixon 539110342

SPRING

$

$

Not available

7

Dixon 539120080

HG_DISC COG BRAKE

$34.99

$

In Stock, only 1 left!

0

8

Dixon 539120079

HG_KIT BRAKE ARM (EZT)

$37.99

$

In Stock, only 2 left!

0

9

Dixon 575507001

HG_KIT, HYDRO-GEAR HUB

$319.99

$

Usually ships in 3-10 days

0

10

Dixon 522941101

LINKAGE, BYPASS, EZT

$14.99

$

Usually ships in 3-10 days

0

11

Dixon 539120785

HG_HYDRO FAN

$37.99

$

In Stock, only 1 left!

0

12

Dixon 510184101

SPACER TUBE, EZT
(Superseded to 510184104)

$

$

Not available

13

Dixon 522460702

SUPPORT FRT TRANS, BLK
(Superseded to 580806502)

$6.99

$

In Stock, only 2 left!

0

14

Dixon 510185102

EZT MOUNT, REAR, BLACK

$37.99

$

In Stock, only 2 left!

0

15

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

17

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

18

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

19

Dixon 539990637

HCS 3/8C X 2 1/2
(Superseded to 596434201)

$4.99

$

In Stock, only 2 left!

0

20

Dixon 539108535

SCR #10-24 X 3/4

$4.99

$

In Stock, Qty 6

0

21

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539115617

5/16-18 THIN PROF NY

$

$

Not available

23

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

24

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

25

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

26

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

27

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

28

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0
