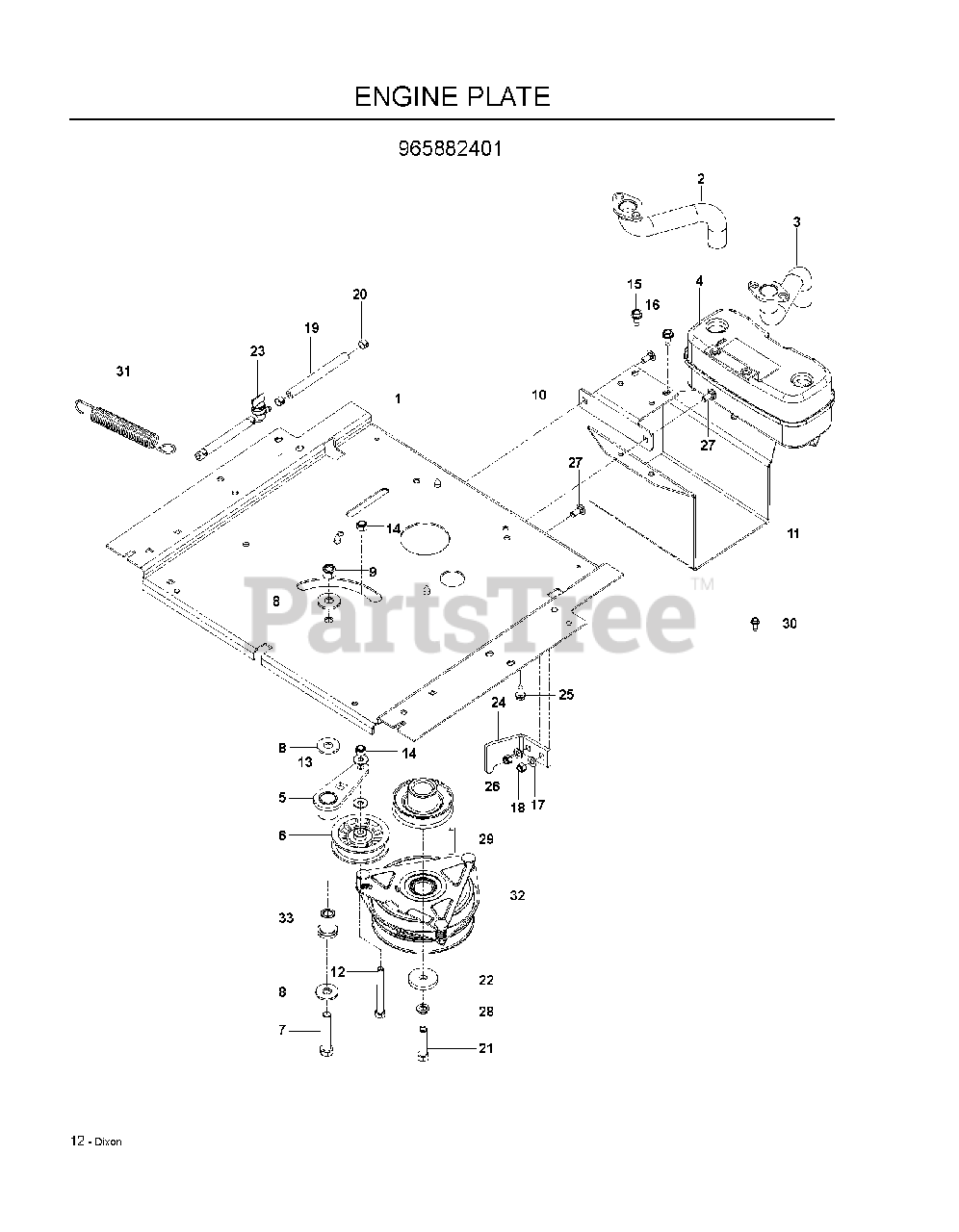

Speed ZTR 48 (965882401) - Dixon 48" Speed ZTR Zero-Turn Mower (2009-05) ENGINE Parts Diagram

48" SpeedZTR Zero-Turn Mower

ENGINE Parts Diagram

  • Title

1

Dixon 510172002

PLATE ENGINE, BLACK
(Superseded to 575327002)

$66.99

$

Usually ships in 3-10 days

0

2

Dixon 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

Note: RT

$22.99

$

In Stock, only 1 left!

0

3

Dixon 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

Note: LT

$20.99

$

In Stock, only 1 left!

0

4

Dixon 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 3 left!

0

5

Dixon 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, only 2 left!

0

6

Dixon 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

7

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

8

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

9

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

10

Dixon 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

11

Dixon 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

12

Dixon 539109389

HCS 3/8-16X3 1/2 GR5

Note: TPBLT

$5.99

$

In Stock, only 3 left!

0

13

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

Note: STD FLT

$3.49

$

Usually ships in 3-10 days

0

14

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

16

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

Note: SAE FLT

$3.99

$

In Stock, Qty 11

0

18

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Dixon 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

20

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

21

Dixon 539111990

HCS 7/16-20 X 2 G8 ZN

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539106504

SPINDLE WASHER

$

$

Not available

23

Dixon 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

24

Dixon 522442502

STOP, CLUTCH OGURA BLK

Note: OGURA

$

$

Not available

25

Dixon 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

26

Dixon 539113436

PULLEY, DRIVE
(Superseded to 525435002)

$

$

Not available

27

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539990247

WASHER 7/16 LOCK

Note: SLW

$

$

Not available

29

Dixon 539910210

KEY 1/4 SQ X 2

$7.49

$

In Stock, only 1 left!

0

30

Dixon 539990362

SCREW 1/4 X 5/8

Note: SLF TAP

$4.99

$

In Stock, Qty 12

0

31

Dixon 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 6

0

32

Dixon 539113437

CLUTCH, 150 FT/LBS

Note: 150FT /LBS

$484.99

$

Usually ships in 3-10 days

0

33

Dixon 522432501

PIVOT, IDLER

$

$

Not available
