Speed ZTR 48 (965882401) - Dixon 48" Speed ZTR Zero-Turn Mower (2008-10) WHEELS & TIRES Parts Diagram

48" SpeedZTR Zero-Turn Mower

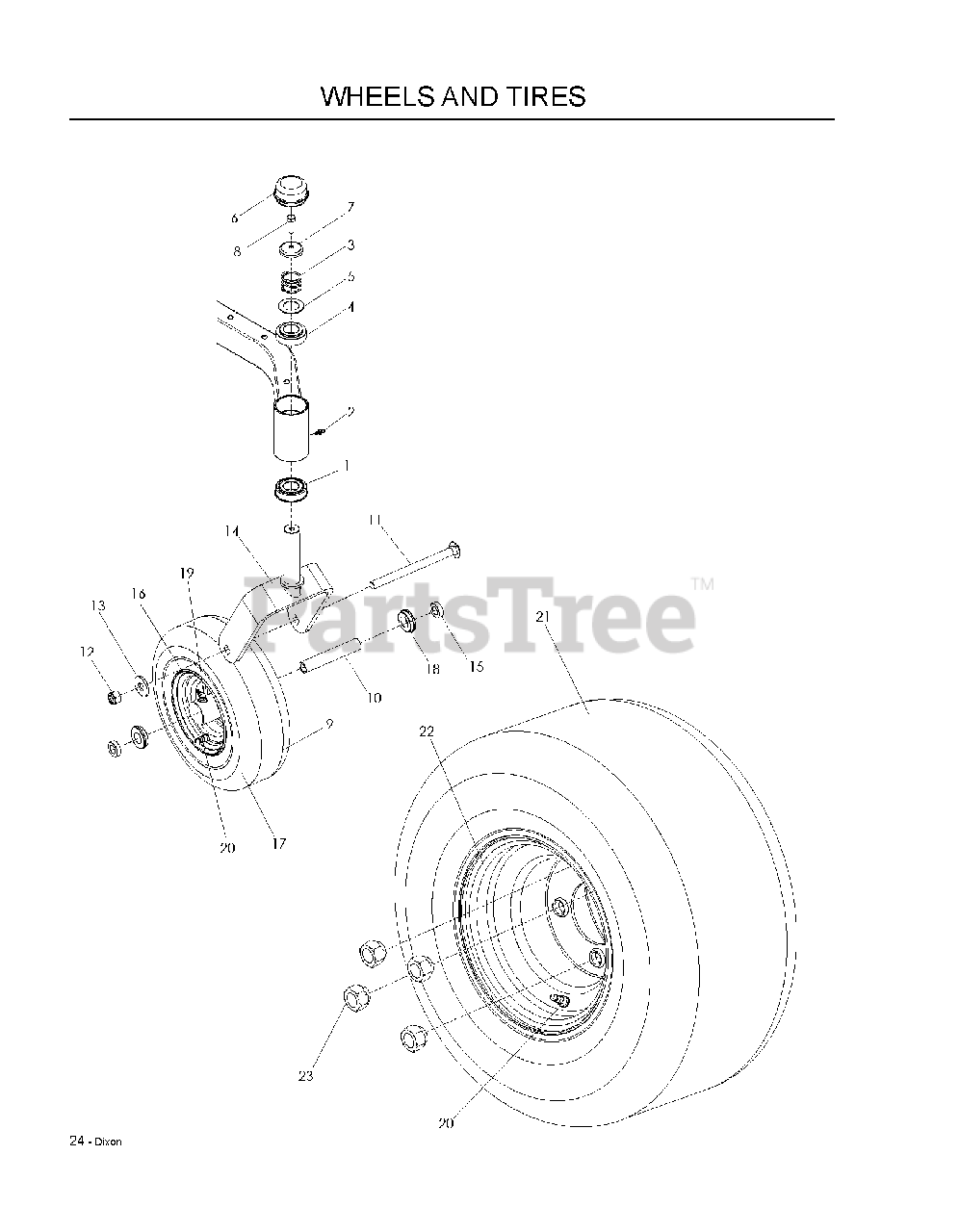

WHEELS & TIRES Parts Diagram

  • Title

1

Dixon 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

2

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 4 left!

0

3

Dixon 539115747

SPRING, CASTER

$

$

Not available

4

Dixon 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

5

Dixon 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

6

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

7

Dixon 539115749

CASTER.PLUG

$

$

Not available

8

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

9

Dixon 539110333

TIRE COMPLETE
(Superseded to 590486802)

$87.99

$

In Stock, only 1 left!

0

10

Dixon 539105543

SPACER

$10.99

$

In Stock, only 2 left!

0

11

Dixon 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$24.99

$

In Stock, only 2 left!

0

12

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

13

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

14

Dixon 539123593

CASTER DK BLUE

$103.99

$

Usually ships in 3-10 days

0

15

Dixon 539114805

SPACER, 5/16"

$12.99

$

In Stock, Qty 8

0

16

Dixon 539106994

RIM

$

$

Not available

17

Dixon 539106995

TIRE - 410/350-5
(Superseded to 539114697)

Note: 4 PLY

$

$

Not available

18

Dixon 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

19

Dixon 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

20

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

21

Dixon 539112212

TIRE ASM 18 X 8.5-8
(Superseded to 581197601)

Note: 968881001 965882001 965882301 965882401

$

$

Not available

21

Dixon 539112213

TIRE, 18 X 8.5, TURF RIDER

$133.99

$

Usually ships in 3-10 days

0

21

Dixon 539131997

TIRE, 20 X 10-8

$157.99

$

Usually ships in 3-10 days

0

22

Dixon 539112214

RIM, 8 X 7

$78.99

$

Usually ships in 3-10 days

0

23

Dixon 539101173

LUG NUT 1/2F

$

$

Not available
