Speed ZTR 48 (965882401) - Dixon 48" Speed ZTR Zero-Turn Mower (2008-10) SEAT Parts Diagram

48" SpeedZTR Zero-Turn Mower

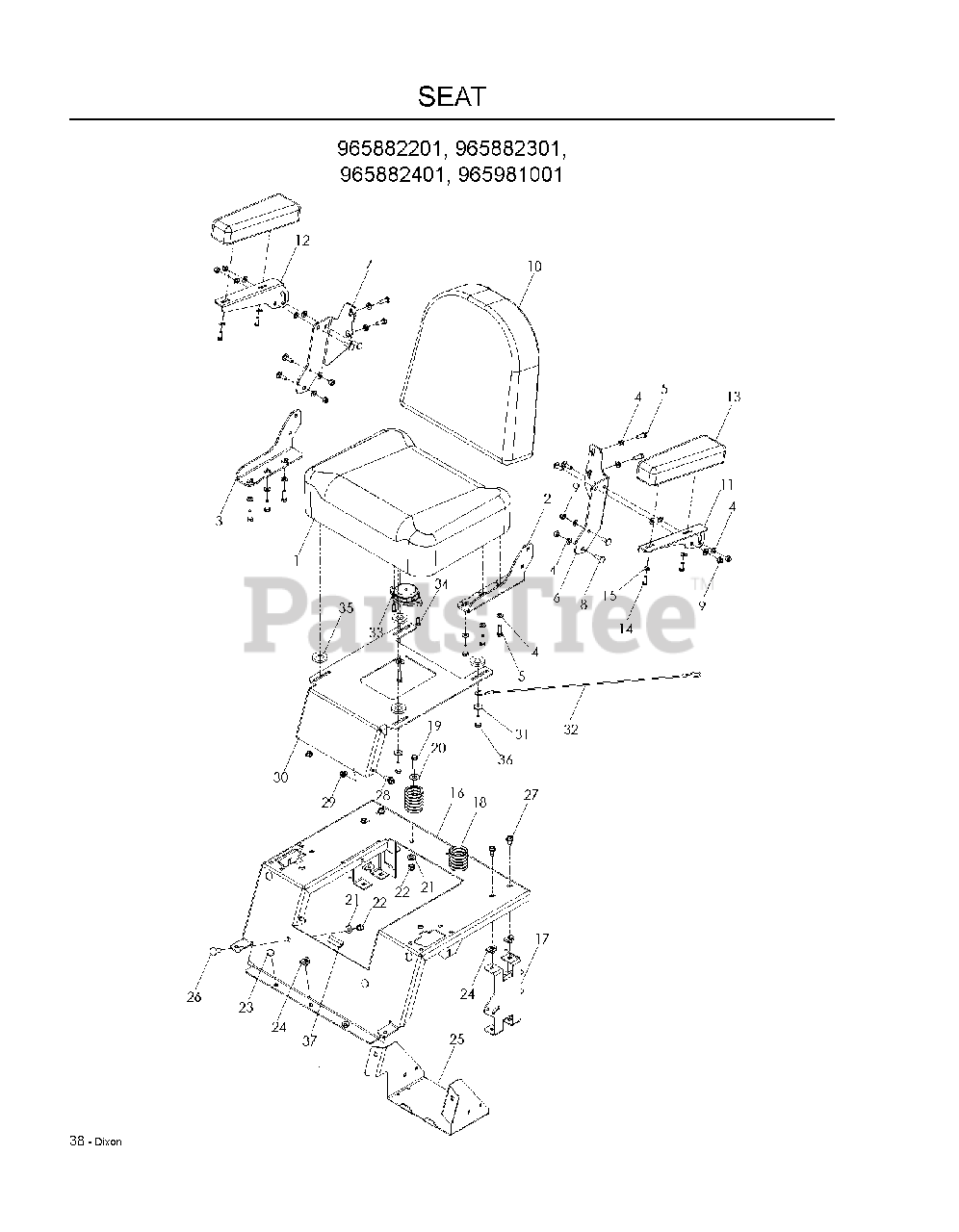

SEAT Parts Diagram

  • Title

1

Dixon 539121382

CORDURA SEAT CUSHION
(Superseded to 539122381)

$

$

Not available

2

Dixon 539118627

SEAT BOTTOM BRKT LH

Note: LH

$72.99

$

Usually ships in 3-10 days

0

3

Dixon 539118628

SEAT BOTTOM BRKT RH

Note: RH

$78.99

$

Usually ships in 3-10 days

0

4

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

5

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

6

Dixon 539118629

SEAT BACK BRKT LH

Note: LH

$35.99

$

Usually ships in 3-10 days

0

7

Dixon 539118630

SEAT BACK BRKT RH

Note: RH

$35.99

$

Usually ships in 3-10 days

0

8

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

9

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

10

Dixon 539118727

SEAT BACK
(Superseded to 539122380)

$

$

Not available

11

Dixon 539121713

ARM REST BRACKET LH

Note: LH

$

$

Not available

12

Dixon 539121714

ARM REST BRACKET RH

Note: RH

$

$

Not available

13

Dixon 539121719

ARMREST

$

$

Not available

14

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

16

Dixon 522506902

SUPPORT, SEAT MED FLAT, BLUE

$242.99

$

Usually ships in 3-10 days

0

17

Dixon 510182902

SUPPORT, REAR SEAT, BLACK

Note: RR

$66.99

$

Usually ships in 3-10 days

0

18

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

19

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

20

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

23

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

24

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

25

Dixon 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

26

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

27

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

28

Dixon 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

29

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Dixon 522756804

PAN, SEAT, BLUE
(Superseded to 525811504)

$122.99

$

Usually ships in 3-10 days

0

31

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

32

Dixon 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

33

Dixon 539117398

SEAT SWITCH MILSCO

$34.99

$

Usually ships in 3-10 days

0

34

Dixon 539108388

SCR 1/4-20X3/4 SLTD RDHD GR2ZD

$2.49

$

Usually ships in 3-10 days

0

35

Dixon 539115789

WASHER NYLON

$3.99

$

Usually ships in 3-10 days

0

36

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

37

Dixon 539118102

CLIP-1.06

$7.49

$

Usually ships in 3-10 days

0

539

Dixon TBD

TBD

Note: NOT SHOWN

$

$

Not available
