Speed ZTR 48 (965882401) - Dixon 48" Speed ZTR Zero-Turn Mower (2008-10) MOWER DECK / CUTTING DECK Parts Diagram

48" SpeedZTR Zero-Turn Mower

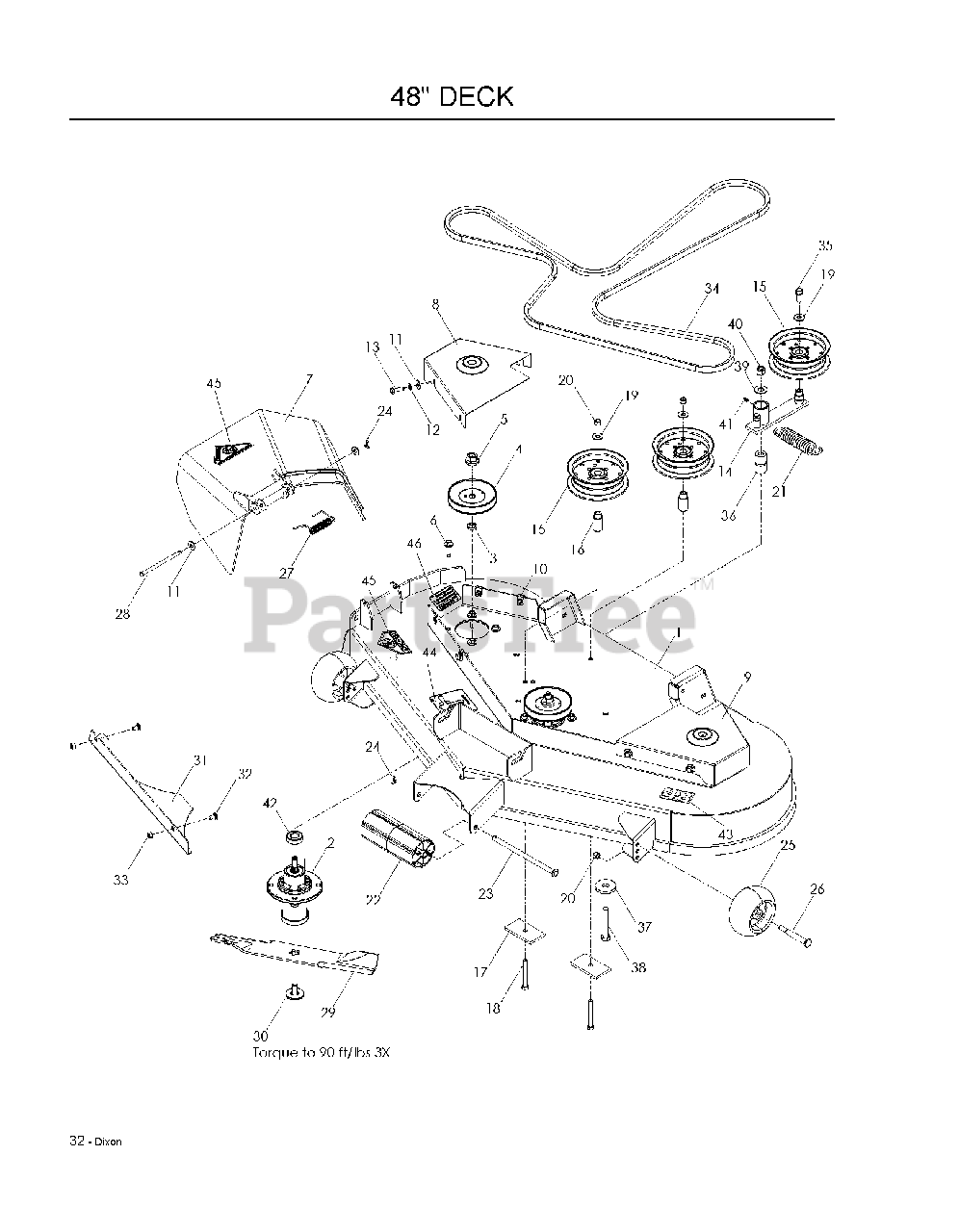

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 522745501

DECK W/DECALS - SZ48

$1092.99

$

Usually ships in 3-10 days

0

2

Dixon 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

3

Dixon 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

4

Dixon 539110315

PULLEY MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

5

Dixon 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

6

Dixon 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

7

Dixon 539110732

DISCHARGE CHUTE 48"

$53.99

$

In Stock, only 2 left!

0

8

Dixon 521953401

BELTSHIELD - R.H. BLUE

Note: RT

$

$

Not available

9

Dixon 521953501

BELTSHIELD - L.H. BLUE

Note: LT

$78.99

$

Usually ships in 3-10 days

0

10

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

11

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

12

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

13

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

14

Dixon 539131148

PULLEY - IDLER, NYLON
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

15

Dixon 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

16

Dixon 539112169

IDLER BUSHING

$

$

Not available

17

Dixon 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

18

Dixon 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

19

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Dixon 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

22

Dixon 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

23

Dixon 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

24

Dixon 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

25

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 18

0

26

Dixon 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

27

Dixon 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 3 left!

0

28

Dixon 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

29

Dixon 539113425

BLADE, 16-1/4"

$22.99

$

In Stock, Qty 13

0

30

Dixon 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

31

Dixon 539113427

Confinement Plate, 48" Black

$

$

Not available

32

Dixon 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

33

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

34

Dixon 539103013

BELT, DECK

$109.99

$

In Stock, only 1 left!

0

35

Dixon 539990582

HCS 3/8C X 1 SERRATED HEAD

$

$

Not available

36

Dixon 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

37

Dixon 539102243

WASHER, SUPPORT

$

$

Not available

38

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

39

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

40

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

41

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

42

Dixon 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

43

Dixon 522443401

DECAL, 48"

$

$

Not available

44

Dixon 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

45

Dixon 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

46

Dixon 539113224

DECAL, CAUTION

$9.99

$

Usually ships in 3-10 days

0
