Speed ZTR 48 (965882401) - Dixon 48" Speed ZTR Zero-Turn Mower (2008-10) IGNITION SYSTEM Parts Diagram

48" SpeedZTR Zero-Turn Mower

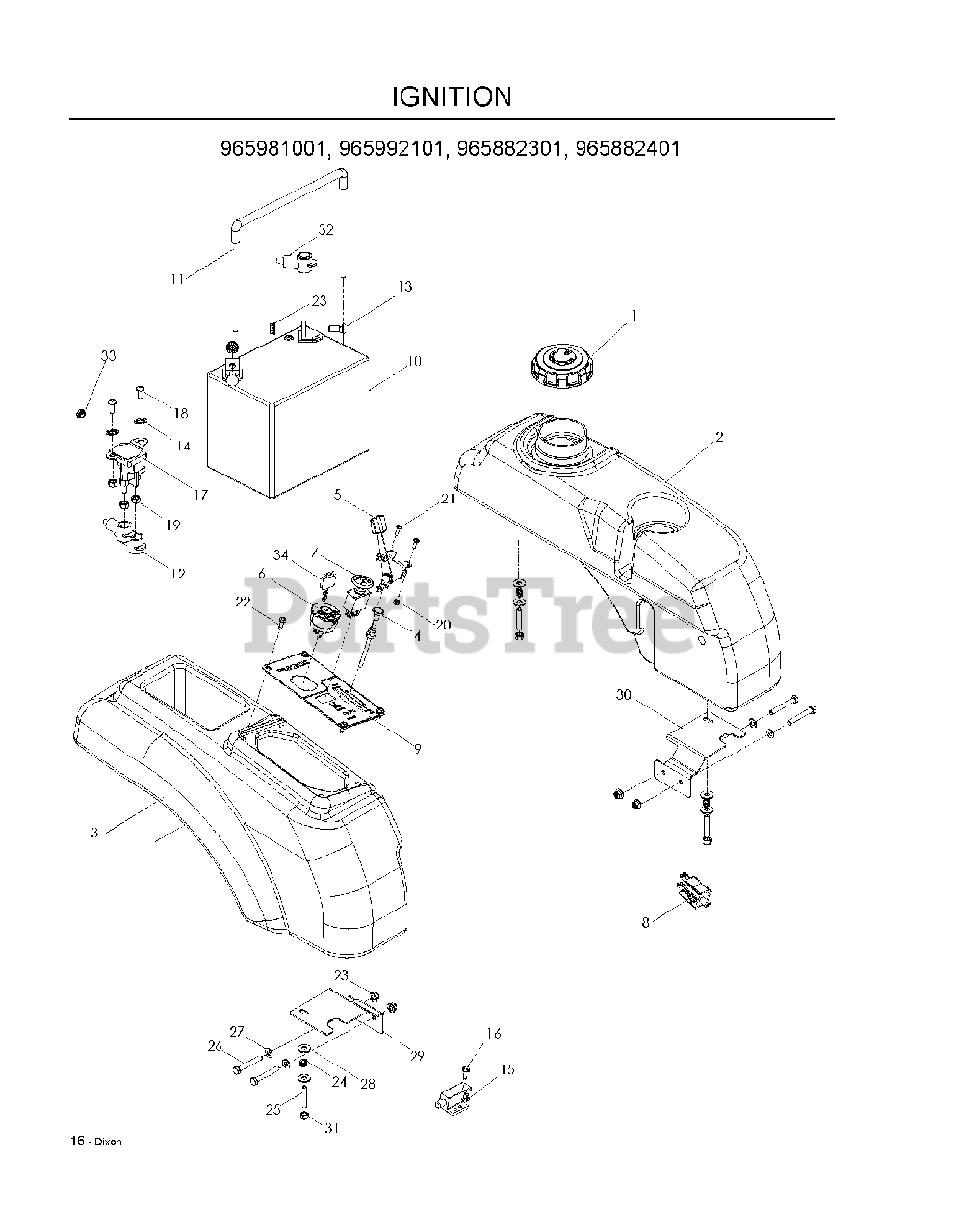

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon TBD

TBD

$

$

Not available

2

539120904

FUEL TANK ASM LH

Note: LT

$

$

Not available

3

Dixon 539120906

FENDER RH

Note: RT

$

$

Not available

4

Dixon 539113458

CABLE, CHOKE

Note: 965882401

$47.99

$

Usually ships in 3-10 days

0

5

Dixon 539127011

THROTTLE

Note: 965882401

$

$

Not available

6

Dixon 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

7

Dixon 539101768

SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

8

Dixon 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

9

Dixon 521971501

DECAL, CONTROL PANEL SPDZTR

$

$

Not available

10

Dixon 539102436

BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

11

Dixon 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

In Stock, Qty 5

0

12

Dixon 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

15

Dixon 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

16

Dixon 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

18

Dixon 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

20

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

21

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

22

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

23

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

24

Dixon 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

25

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

26

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

27

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

29

Dixon 522629404

SUPPORT, TANK LT BLK

Note: RT

$

$

Not available

30

Dixon 522629402

SUPPORT, TANK, RT BLK

Note: LT

$

$

Not available

31

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

32

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

33

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

34

Dixon 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

Dixon 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$10.99

$

In Stock, only 2 left!

0

Dixon 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$9.49

$

Usually ships in 3-10 days

0

Dixon 515980501

WIRING HARNESS
(Superseded to 580798101)

Note: NOT SHOWN

$145.99

$

Usually ships in 3-10 days

0

Dixon 539105637

CLUTCH HARNESS

Note: NOT SHOWN

$26.99

$

In Stock, Qty 6

0

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0
