Speed ZTR 4619 CA (966503601) - Dixon 46" Speed ZTR Zero-Turn Mower (2010-01) WHEELS & TIRES Parts Diagram

46" SpeedZTR Zero-Turn Mower

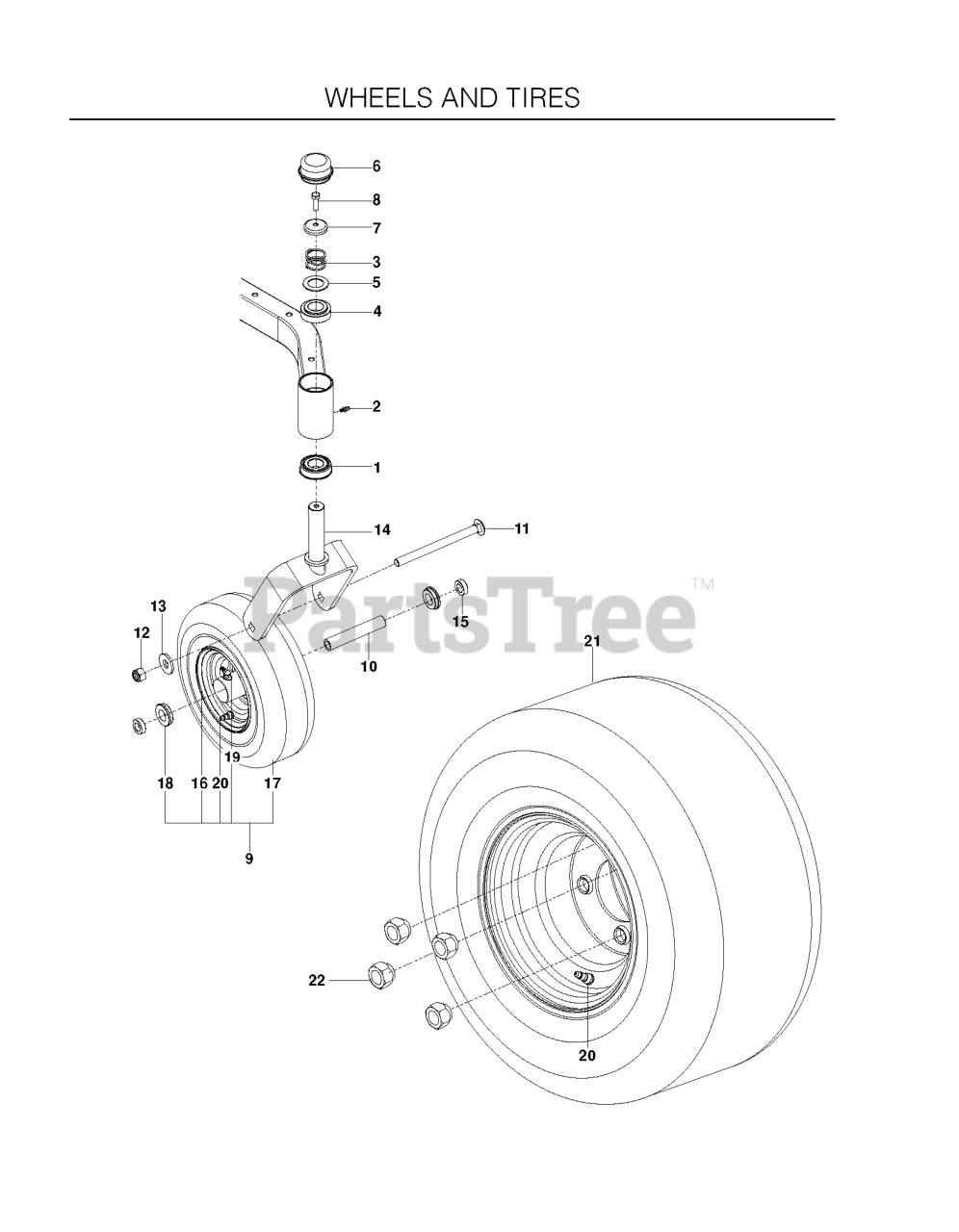

WHEELS & TIRES Parts Diagram

  • Title

1

Dixon 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

2

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 4 left!

0

3

Dixon 539115747

SPRING, CASTER

$

$

Not available

4

Dixon 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

5

Dixon 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

6

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

7

Dixon 539115749

CASTER.PLUG

$

$

Not available

8

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

9

Dixon 516001901

TIRE.CASTER.ASSEM.11X4-5.GREY
(Superseded to 590486802)

$87.99

$

In Stock, only 1 left!

0

10

Dixon 539105543

SPACER

$10.99

$

In Stock, only 2 left!

0

11

Dixon 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$24.99

$

In Stock, only 2 left!

0

12

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

13

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

14

Dixon 539123593

CASTER DK BLUE

$103.99

$

Usually ships in 3-10 days

0

15

Dixon 539114805

SPACER, 5/16"

$12.99

$

In Stock, Qty 8

0

16

Dixon 539106994

RIM

$

$

Not available

17

Dixon 539114697

TIRE.11"X4"-5.4PLY.SMOOTH.KEND

$

$

Not available

18

Dixon 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

19

Dixon 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

20

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

21

Dixon 539110470

RP.WHEEL.ASSEM.18X8.5-8.KENDA.
(Superseded to 581197301)

$194.99

$

In Stock, only 1 left!

0

22

Dixon 539101173

LUG NUT 1/2F

$

$

Not available
