Speed ZTR 4619 CA (966503601) - Dixon 46" Speed ZTR Zero-Turn Mower (2010-01) SEAT Parts Diagram

46" SpeedZTR Zero-Turn Mower

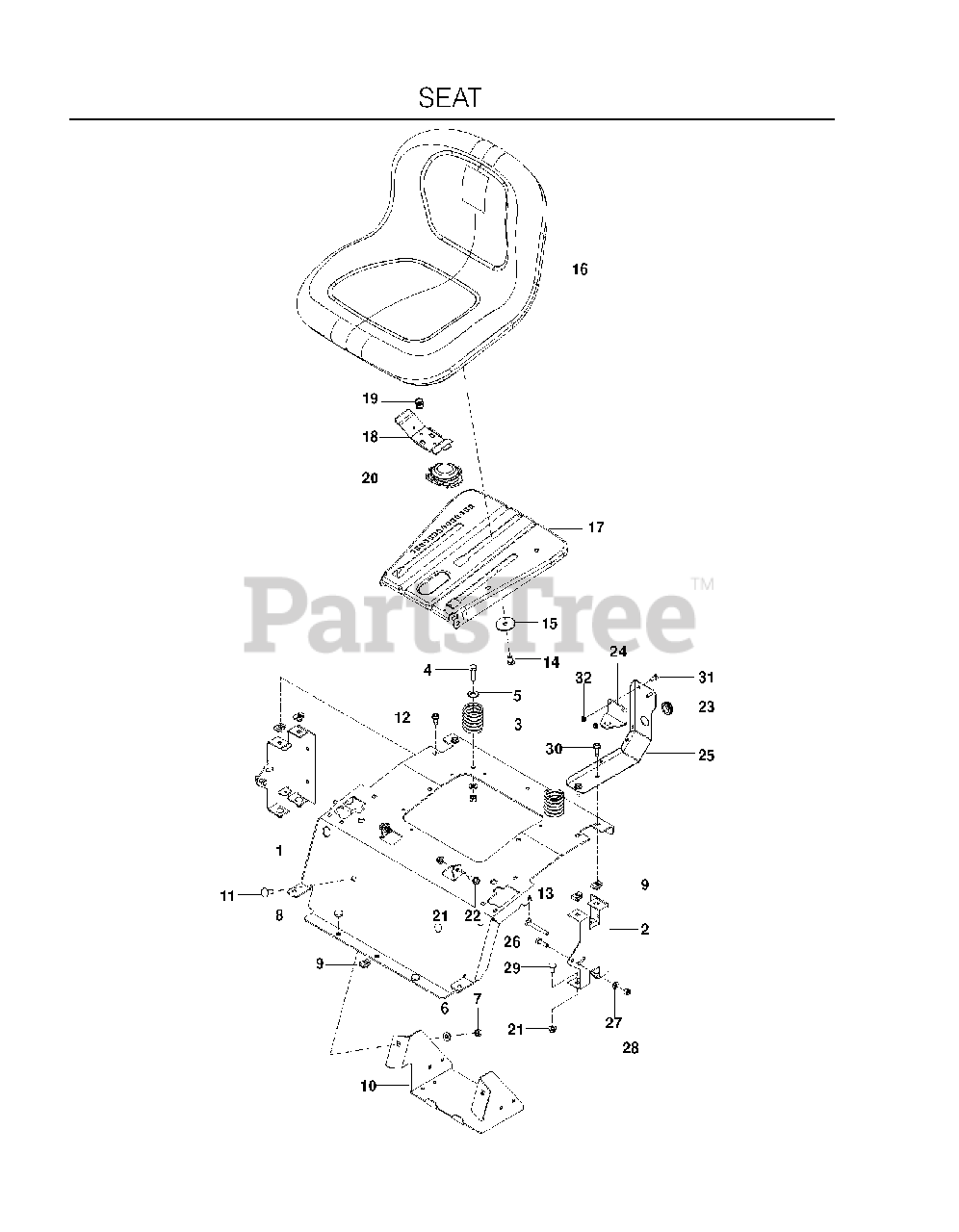

SEAT Parts Diagram

  • Title

1

Dixon 510171904

SUPPORT, SEAT, BLUE

$132.99

$

Usually ships in 3-10 days

0

2

Dixon 574522702

SUPPORT REAR SEAT BLA
(Superseded to 580308202)

$22.99

$

Usually ships in 3-10 days

0

3

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

4

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

5

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

8

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

9

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

10

Dixon 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

11

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

12

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

13

Dixon 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 539111897

WASHER, 3/8 SPEC

$

$

Not available

16

Dixon 522598901

SEAT,BLACK W/ARMREST PROVISION
(Superseded to 532406625)

$265.99

$

Usually ships in 3-10 days

0

17

Dixon 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

18

Dixon 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

19

Dixon 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

20

Dixon 539132140

SWITCH, SEAT N/C

$14.99

$

In Stock, only 2 left!

0

21

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

22

Dixon 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

23

Dixon 539110433

GROMMET, FUEL LINE

$4.99

$

Usually ships in 3-10 days

0

24

Dixon 575296902

BRACKET, VALVE BLK

$

$

Not available

25

Dixon 575328002

MOUNT, VALVE BLK

$

$

Not available

26

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

27

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

30

Dixon 539113226

Hex Washer Head Bolt, 5/16-18 X 3/4 Thread Forming
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539108499

HCS 1/4-20 X 5/8 COATED GR5 ZD

$1.99

$

Usually ships in 3-10 days

0

32

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0
