Speed ZTR 46 (966658101) - Dixon 46" Speed ZTR Zero-Turn Mower (2013-11) IGNITION SYSTEM Parts Diagram

46" SpeedZTR Zero-Turn Mower

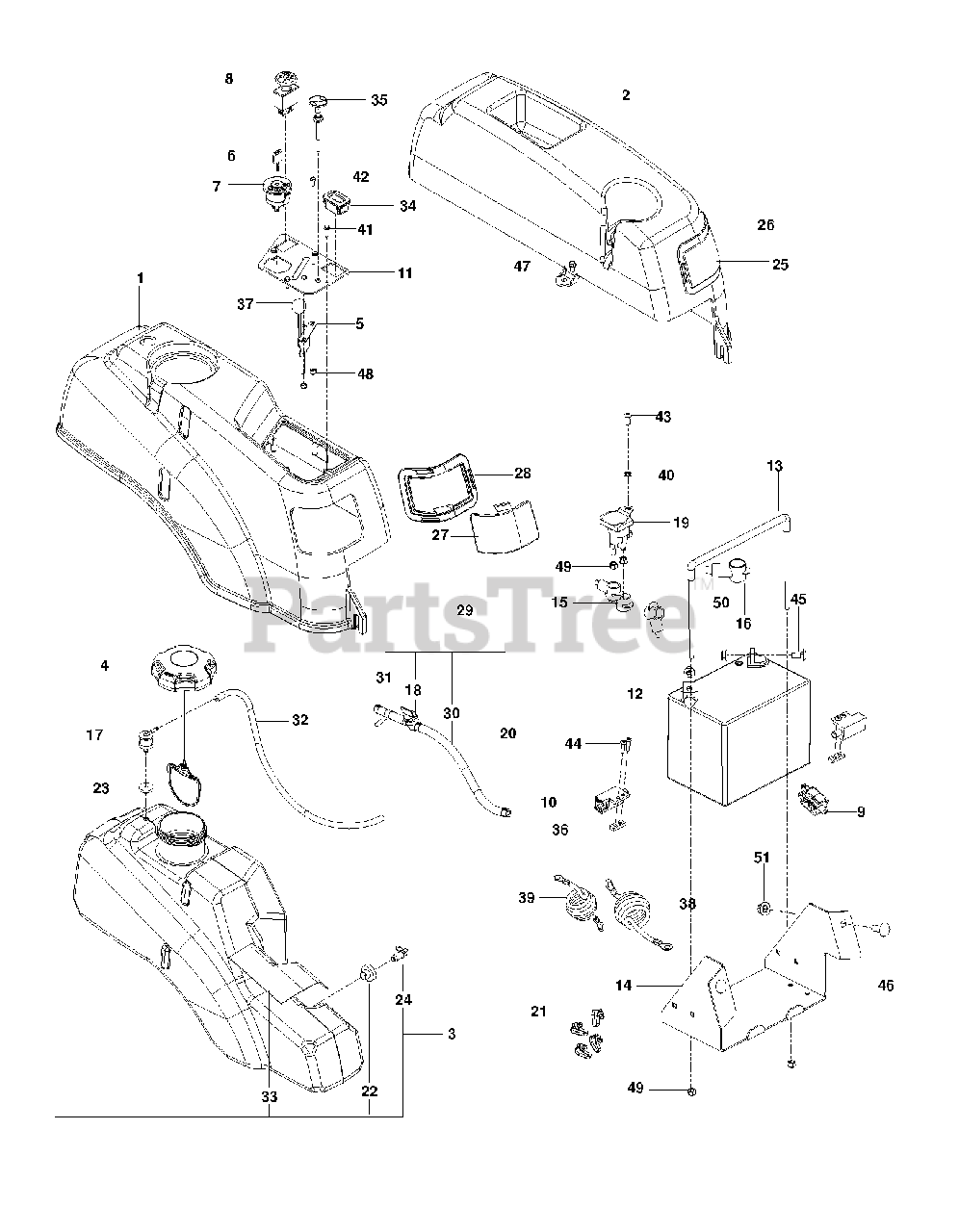

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon 578179001

FENDER RT, BLACK

$

$

Not available

2

Dixon 576370501

FENDER, LT, BLK

Note: FENDER LT

$85.99

$

In Stock, only 1 left!

0

3

Dixon 578180601

FUEL TANK ASM, LARGE
(Superseded to 589924706)

Note: . 4 22 23 24 33

$157.99

$

Usually ships in 3-10 days

0

4

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

5

Dixon 539112734

THROTTLE CABLE

$34.99

$

In Stock, Qty 11

0

6

Dixon 532140401

No Description Available

$6.99

$

In Stock, Qty 7

0

7

Dixon 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

8

Dixon 532174652

No Description Available
(Superseded to 582107602)

$28.99

$

In Stock, Qty 8

0

9

Dixon 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

10

Dixon 532109553

No Description Available
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

11

Dixon 584254602

No Description Available

$4.99

$

Usually ships in 3-10 days

0

12

Dixon 539102436

OBSOLETE - BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

13

Dixon 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

In Stock, Qty 5

0

14

Dixon 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

15

Dixon 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

17

Dixon 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 16

0

18

Dixon 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

19

Dixon 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$26.99

$

In Stock, Qty 16

0

20

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

21

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 11

0

23

Dixon 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

24

Dixon 539110432

OBSOLETE - STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, only 1 left!

0

25

Dixon 576371101

PANEL, LT

$6.49

$

In Stock, only 1 left!

0

26

Dixon 576370901

RING, LT BLK

$4.99

$

In Stock, only 1 left!

0

27

Dixon 576371201

PANEL, RT, BLK

$6.49

$

In Stock, only 1 left!

0

28

Dixon 576371001

RING, TRIM, RT-BLK

$4.99

$

In Stock, Qty 6

0

29

Dixon 576660701

FUEL LINE ASSY

Note: . 18 20 30 31

$27.99

$

Usually ships in 3-10 days

0

30

Dixon 539932956

GAS LINE 10"

$

$

Not available

31

Dixon 505215101

FUEL LINE 2.5"

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 574521305

HOSE, FUEL, 3/16" X 20"

$11.99

$

Usually ships in 3-10 days

0

33

Dixon 522559101

No Description Available

$37.99

$

Usually ships in 3-10 days

0

34

Dixon 532401763

No Description Available
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0

35

Dixon 539112439

CHOKE CABLE

$34.99

$

In Stock, only 1 left!

0

36

Dixon 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

37

Dixon 539133049

KNOB ROUND BALL

$18.99

$

In Stock, Qty 20+

0

38

Dixon 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$10.99

$

In Stock, only 2 left!

0

39

Dixon 539110068

BATTERY CABLE, NEGATIVE

$9.49

$

Usually ships in 3-10 days

0

40

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

41

Dixon 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

42

Dixon 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

43

Dixon 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

44

Dixon 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

45

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

46

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

47

Dixon 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 5

0

48

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

49

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

50

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

51

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

Dixon 581091901

No Description Available

Note: NOT SHOWN

$100.99

$

Usually ships in 3-10 days

0
