Speed ZTR 46 (965883101) - Dixon 46" Speed ZTR Zero-Turn Mower (2009-12) MOWER DECK / CUTTING DECK Parts Diagram

46" SpeedZTR Zero-Turn Mower

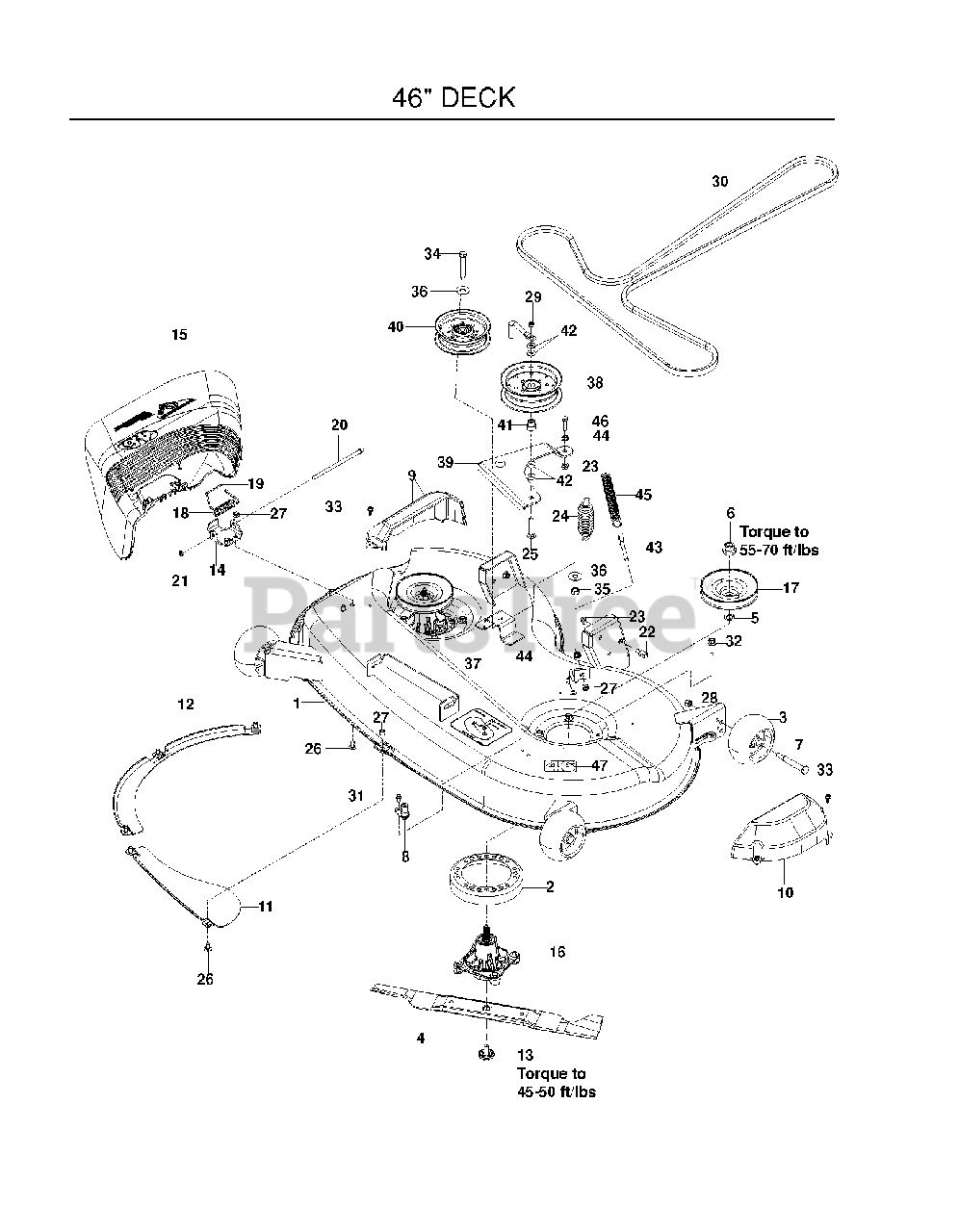

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Dixon 522745401

DECK.STAMPED.46".W/DECALS.BLUE
(Superseded to 522745402)

Note: w / SAFETY DECALS

$

$

Not available

2

Dixon 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

3

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 18

0

4

Dixon 777405380

BLADE, 46" HI-LIFT
(Superseded to 532405380)

$

$

Not available

5

Dixon 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

6

Dixon 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

7

Dixon 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

8

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

9

Dixon 532405506

COVER.MANDREL.RH.46"

Note: RT

$47.99

$

In Stock, only 4 left!

0

10

Dixon 532405507

COVER.MANDREL.LH.46"

Note: LT

$47.99

$

In Stock, only 3 left!

0

11

Dixon 532403149

BAFFLE CENTER FRONT

$

$

Not available

12

Dixon 532403150

BAFFLE FRONT RH

$

$

Not available

13

Dixon 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

14

Dixon 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

15

Dixon 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 7

0

16

Dixon 539107515

CUTTER HOUSING
(Superseded to 587125201)

$56.99

$

In Stock, only 4 left!

0

17

Dixon 539113962

PULLEY, DECK
(Superseded to 588586601)

$34.99

$

In Stock, Qty 11

0

18

Dixon 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

19

Dixon 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

20

Dixon 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

21

Dixon 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

23

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

24

$

$

Not available

25

Dixon 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

26

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

30

$66.99

$

In Stock, Qty 5

0

31

Dixon 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 6

0

32

Dixon 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

33

Dixon 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

34

Dixon 539104870

BOLT 7/16-14 X 2-1/2 GR 5 ZD
(Superseded to 874780740)

$3.99

$

Usually ships in 3-10 days

0

35

Dixon 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

36

Dixon 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 510240201

DECAL, BELT ROUTING

$3.99

$

In Stock, Qty 8

0

38

Dixon 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

39

Dixon 574689002

ARM, IDLER BLK

$93.99

$

In Stock, only 2 left!

0

40

Dixon 532196104

PULLEY.IDLER.MWR.STATIONARY.LH

$43.99

$

In Stock, Qty 18

0

41

Dixon 539112076

IDLER BUSHING

$

$

Not available

42

Dixon 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 15

0

43

Dixon 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

44

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539120920

SPRING, DECK BELT

$

$

Not available

46

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

47

Dixon 521967401

DECAL, 46"

$10.99

$

Usually ships in 3-10 days

0
