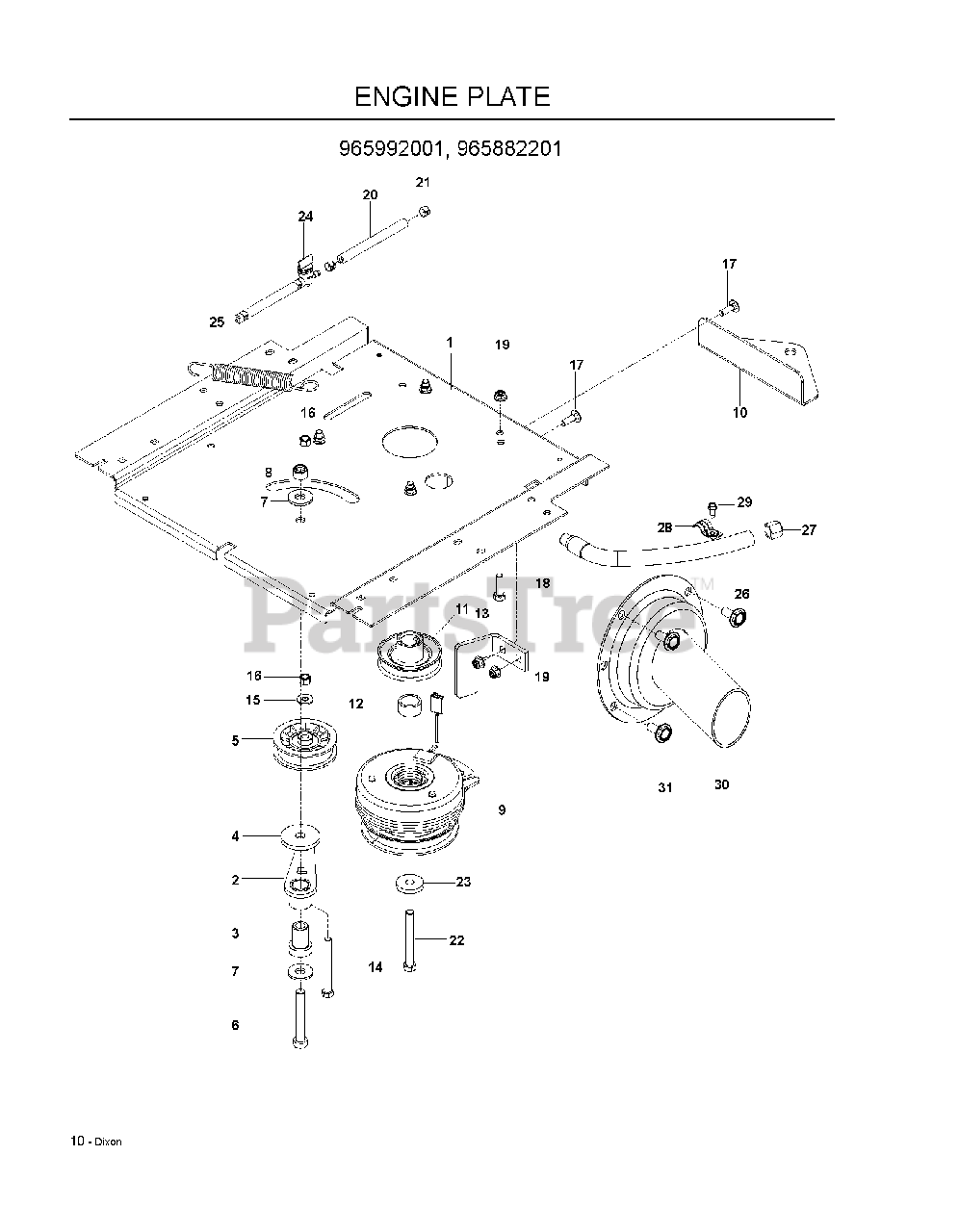

Speed ZTR 46 (965882001) - Dixon 46" Speed ZTR Zero-Turn Mower (2009-05) ENGINE Parts Diagram

46" SpeedZTR Zero-Turn Mower

ENGINE Parts Diagram

  • Title

1

Dixon 510172002

PLATE ENGINE, BLACK
(Superseded to 575327002)

$66.99

$

Usually ships in 3-10 days

0

2

Dixon 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, only 2 left!

0

3

Dixon 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

4

Dixon 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 9

0

5

Dixon 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

6

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

7

Dixon 539109554

WASH USS FLAT 1/2

Note: FLT

$

$

Not available

8

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

9

Dixon 505287301

CLUTCH, 105 FT-LBS

$284.99

$

Usually ships in 3-10 days

0

10

Dixon 516011802

HITCH, BLACK

$6.99

$

In Stock, Qty 13

0

11

Dixon 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

12

Dixon 539112252

T & B SPACER

$

$

Not available

13

Dixon 510246002

STOP, CLUTCH, BLACK

$27.99

$

Usually ships in 3-10 days

0

14

Dixon 539109389

HCS 3/8-16X3 1/2 GR5

Note: TPBLT

$5.99

$

In Stock, only 3 left!

0

15

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

Note: STD FLT

$3.49

$

Usually ships in 3-10 days

0

16

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

19

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Dixon 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

21

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

22

Dixon 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$7.99

$

In Stock, only 2 left!

0

23

Dixon 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

24

Dixon 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

25

Dixon 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 6

0

26

Dixon 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

27

Dixon 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

28

Dixon 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

29

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

30

Dixon 539131601

MUFFLER EXTENSION

$40.99

$

Usually ships in 3-10 days

0

31

Dixon 539115507

3/8-16X3/4 CARR BOLT
(Superseded to 539111785)

$3.99

$

Usually ships in 3-10 days
