Speed ZTR 44 - Dixon 44" Speed ZTR Zero-Turn Mower (2005) MOWER DECK Parts Diagram

44" SpeedZTR Zero-Turn Mower

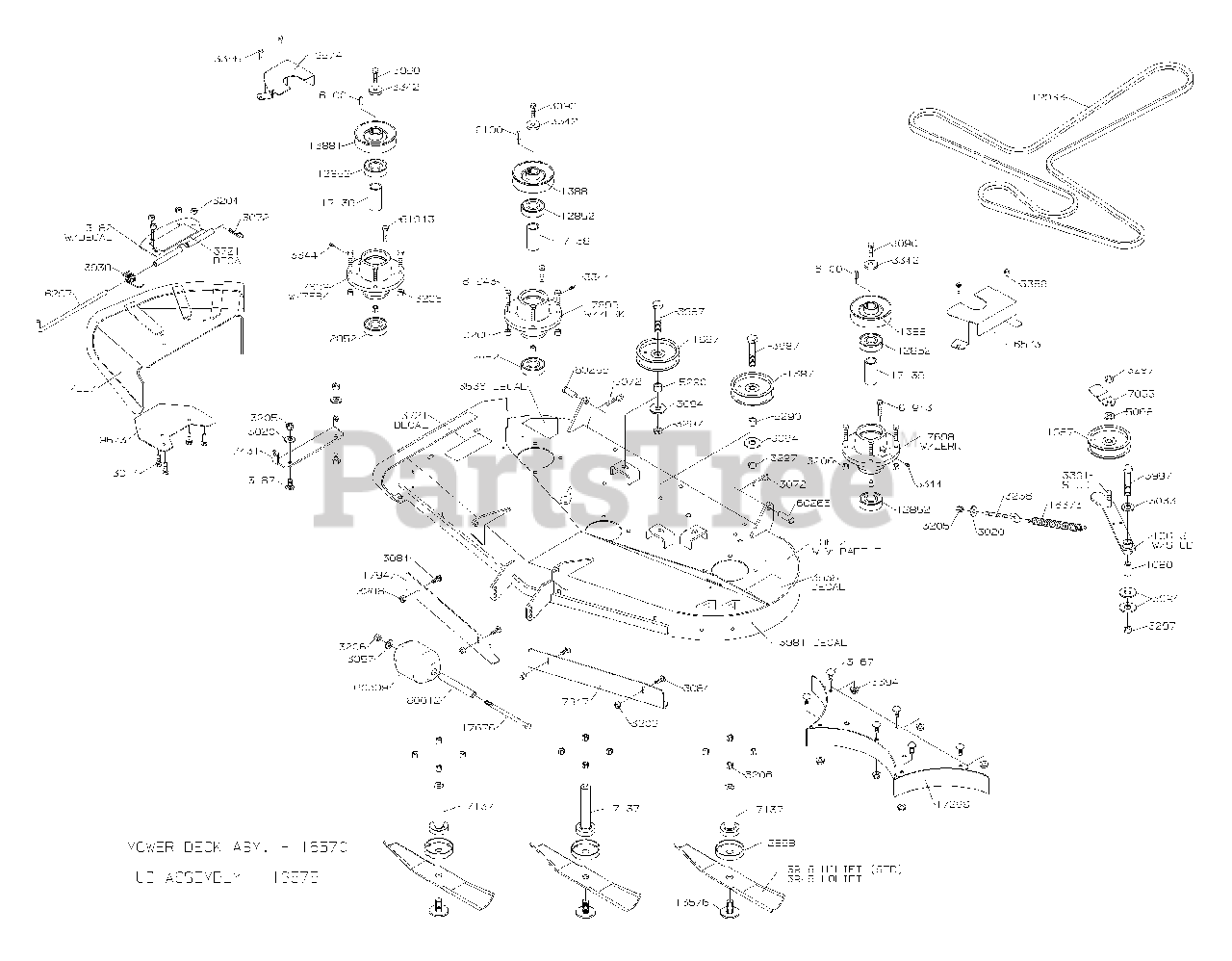

MOWER DECK Parts Diagram

  • Title

1080

1080

BUSHING

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3236

3236

EYE BOLT 5/16 X 3.50

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

5068

5068

HD PULLEY SPACER

$

$

Not available

5290

5290

BUSHING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

7033

7033

BELT GUARD BLK

$

$

Not available

9673

9673

DEFLECTOR BRKT

$

$

Not available

10612

10612

DECK W/W BAFFLE DIX

$

$

Not available

10613

10613

IDLER ARM W/STUD

$

$

Not available

12033

12033

BELT-72` SERP.

$

$

Not available

12852

12852

BEARING - 6305 - 2RS

$

$

Not available

12858

12858

TRASH GUARD

$

$

Not available

13182

13182

DEFLECTOR MT BRKT

$

$

Not available

13576

13576

BLADE BOLT

$

$

Not available

13881

13881

V-PULLEY

$

$

Not available

13918

13918

BLD 44" HI LIFT FUS

$

$

Not available

13945

13945

BLD 44" STD LIFT FUS

$

$

Not available

13981

13981

DECAL, DECK 44"

$

$

Not available

16373

16373

SPRING DECK BELT

$

$

Not available

16570

16570

DECK ASM SPDZTR 44

$

$

Not available

16573

16573

PULLEY GUARD

$

$

Not available

16574

16574

PULLEY GUARD

$

$

Not available

16575

16575

HUB ASM.

$

$

Not available

17137

17137

SHAFT 50S

$

$

Not available

17138

17138

HUB SPACER-2.349

$

$

Not available

17296

17296

44 W-BAFFLE WLDT.

$

$

Not available

17431

17431

HINGE

$

$

Not available

17557

17557

44 DEFLECTOR

$

$

Not available

17676

17676

BOLT 3/8 X 6 GR5

$

$

Not available

17698

17698

DECK HUB-MACHINED

$

$

Not available

17847

17847

BLOW-BY BAFFLE

$

$

Not available

60012

60012

BUSHING

$

$

Not available

60265

60265

CLEVIS PIN 1/2X1-1/2` L

$

$

Not available

60309

60309

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

61943

61943

HHB 3/8-16X1-1/2 GR5

$

$

Not available
