Speed ZTR 44 (968999611) - Dixon 44" Speed ZTR Zero-Turn Mower, 22hp Briggs & Stratton (2007) BRIGGS & STRATTON 22 HP Parts Diagram

44" SpeedZTR Zero-Turn Mower, 22hp Briggs & Stratton

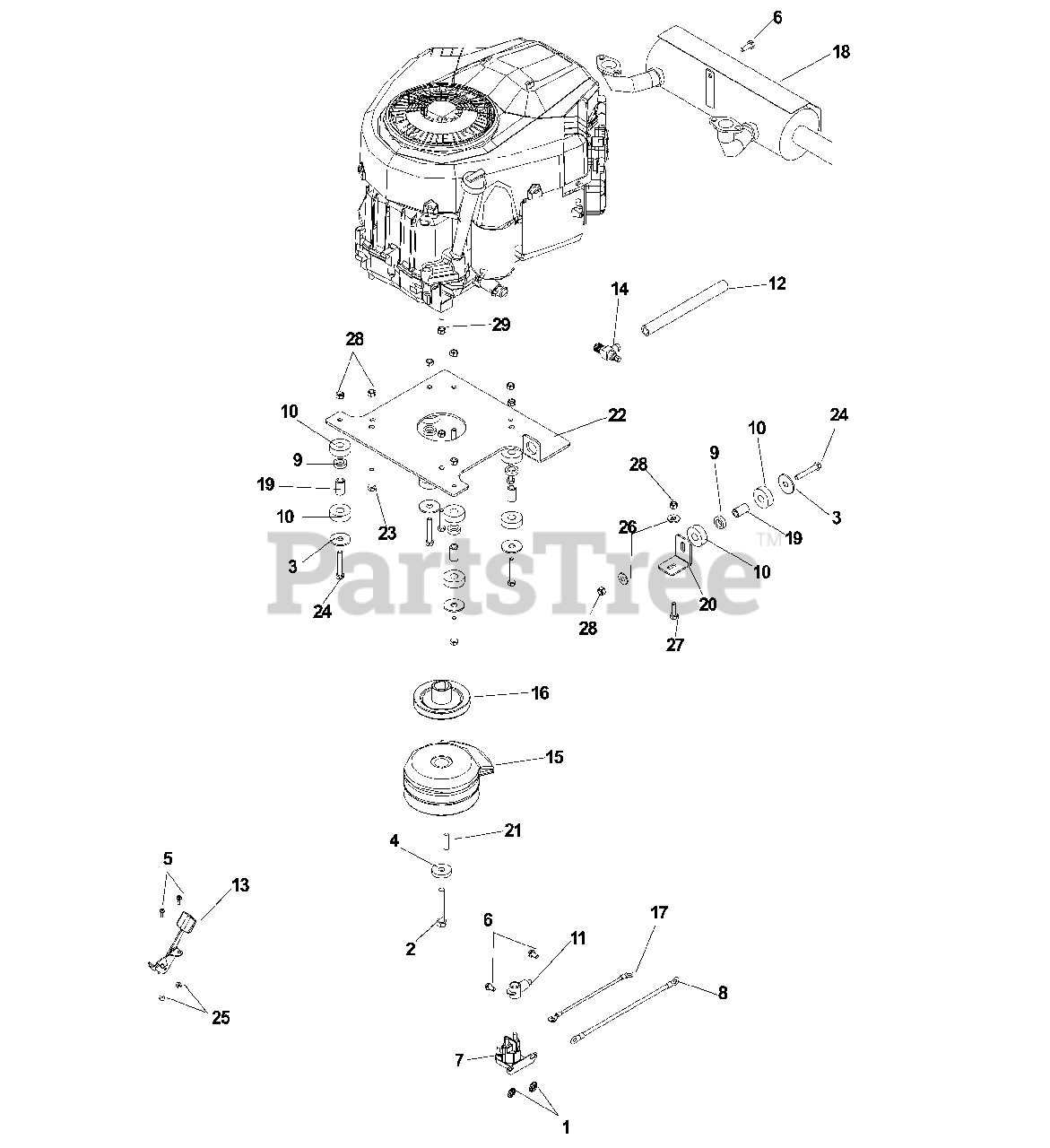

BRIGGS & STRATTON 22 HP Parts Diagram

  • Title
1

Dixon 539109347

WASHER 1/4 EXTLW STAR ZD

$0.99

$

Usually ships in 3-10 days

0

2

Dixon 539110065

HCS 7/16-20 X 2-3/4

$4.99

$

Usually ships in 3-10 days

0

3

Dixon 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 539115546

WASHER .43X1.38X.25

$4.99

$

In Stock, only 3 left!

0

5

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

6

Dixon 539115640

1/4-20 X 1/2 HWH FORM SCR H

$0.99

$

Usually ships in 3-10 days

0

7

Dixon 539115774

SOLENOID

$31.99

$

Usually ships in 3-10 days

0

8

Dixon 539115799

BATTERY GROUND CABLE

$7.49

$

Usually ships in 3-10 days

0

9

Dixon 539116377

ISO-MOUNT INSERT

$4.99

$

In Stock, Qty 5

0

10

Dixon 539116378

ISO-MOUNT BUSHING

$6.49

$

In Stock, Qty 7

0

11

Dixon 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539117429

OIL DRAIN HOSE

$7.49

$

Usually ships in 3-10 days

0

13

Dixon 539118816

CABLE THROTTLE

$26.99

$

Usually ships in 3-10 days

0

14

Dixon 539118893

OIL DRAIN

$

$

Not available

15

Dixon 539120756

ELEC. CLUTCH

$

$

Not available

16

Dixon 539120757

ENGINE PULLEY

$

$

Not available

17

Dixon 539120796

SOLENOID TO STARTER CABL

$8.99

$

Usually ships in 3-10 days

0

18

Dixon 539121325

MUFFLER

$

$

Not available

19

Dixon 539121367

ISO MT. BUSHING

$17.99

$

Usually ships in 3-10 days

0

20

Dixon 539121368

ISO MT. BRKT.

$14.99

$

Usually ships in 3-10 days

0

21

Dixon 539122579

KEY 1/4`SQ X 1-1/4`
(Superseded to 539912757)

$4.99

$

Usually ships in 3-10 days

0

22

Dixon 539123561

ISO-MT SPDZTR

$

$

Not available

23

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

24

Dixon 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

26

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

28

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0
