Speed ZTR 44 (968999538) - Dixon 44" Speed ZTR Zero-Turn Mower, 20hp Kohler (2007) 44 INCH CUTTING DECK Parts Diagram

44" SpeedZTR Zero-Turn Mower, 20hp Kohler

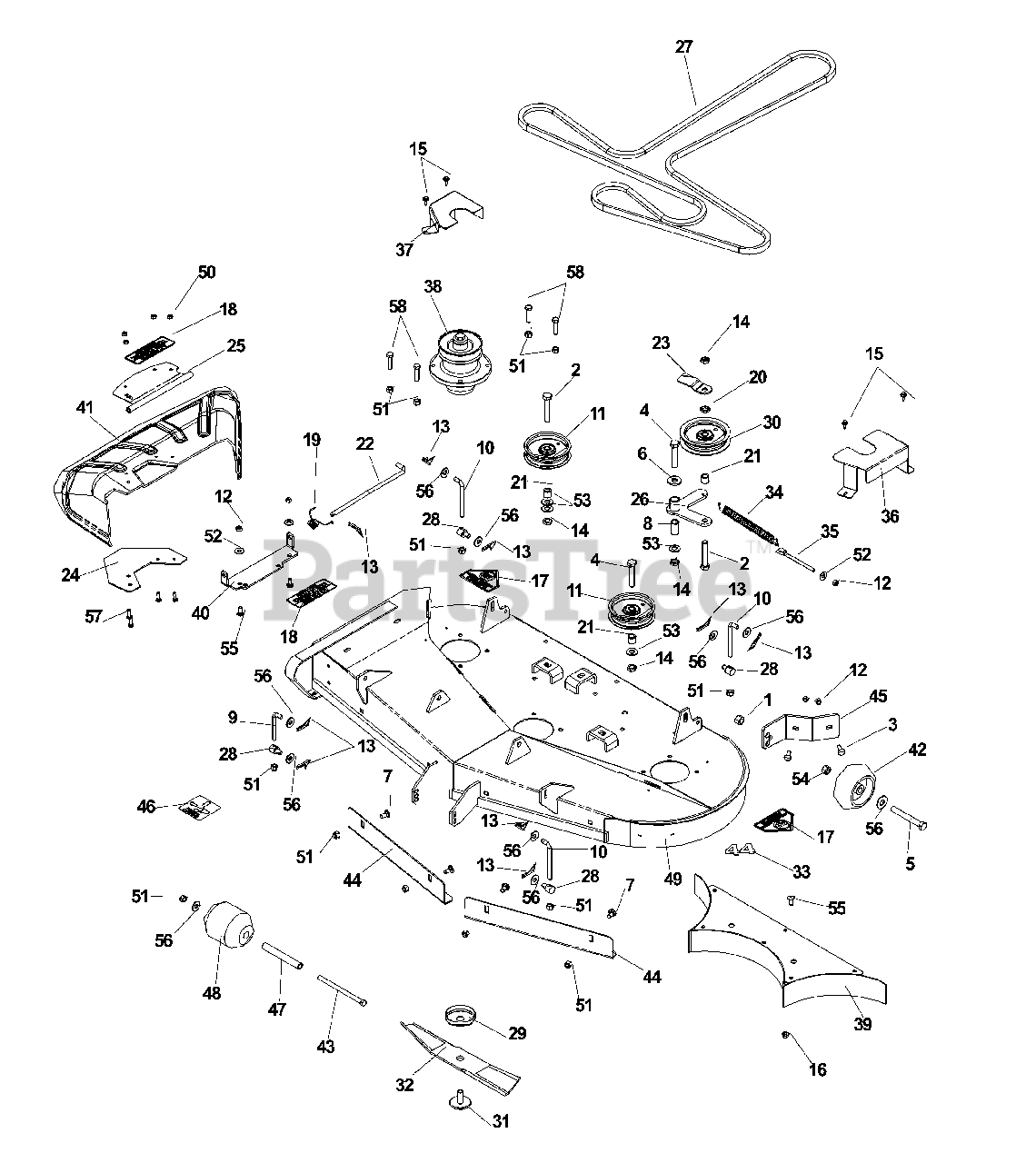

44 INCH CUTTING DECK Parts Diagram

  • Title

1

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

2

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

3

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

4

Dixon 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

5

Dixon 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 17

0

6

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

7

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

8

Dixon 539115220

BUSHING DIXON 1080

$

$

Not available

9

Dixon 539115247

L ROD 3-1/8"

$

$

Not available

10

Dixon 539115249

L ROD 3-7/8

$

$

Not available

11

Dixon 539115278

PULLEY IDLER

$37.99

$

Usually ships in 3-10 days

0

12

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

13

Dixon 539115501

PIN, COTTER 1 3/4

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$4.99

$

In Stock, only 3 left!

0

15

Dixon 539115643

SCREW, TAP & DR #12-14 X 3/4

$10.99

$

In Stock, only 2 left!

0

16

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

18

Dixon 539115717

DECAL, DANGER

$10.99

$

Usually ships in 3-10 days

0

19

Dixon 539115760

DEFLECTOR SPRING

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539115948

HD PULLEY SPACER

$4.99

$

Usually ships in 3-10 days

0

21

Dixon 539116010

BUSHING

$

$

Not available

22

Dixon 539116225

DEFLECTOR PIN

$

$

Not available

23

Dixon 539116351

BELT GUARD BLK

$

$

Not available

24

Dixon 539117239

DEFLECTOR BRKT

$30.99

$

Usually ships in 3-10 days

0

25

Dixon 539117262

DEFLECTOR MT BRKT
(Superseded to 539119443)

$103.99

$

Usually ships in 3-10 days

0

26

Dixon 539118155

IDLER WLDT.

$

$

Not available

27

Dixon 539118156

BELT

$84.99

$

Usually ships in 3-10 days

0

28

Dixon 539118179

SWIVEL

$13.99

$

In Stock, only 2 left!

0

29

Dixon 539119266

TRASH GUARD

$

$

Not available

30

Dixon 539119555

IDLER PULLEY

$

$

Not available

31

Dixon 539119637

BLADE BOLT

$

$

Not available

32

Dixon 539119836

BLD 44" HI LIFT FUS

$36.99

$

Usually ships in 3-10 days

0

33

Dixon 539119894

DECAL, DECK 44"

$4.99

$

Usually ships in 3-10 days

0

34

Dixon 539120920

SPRING, DECK BELT

$

$

Not available

35

Dixon 539120993

EYE BOLT 4.5`

$46.99

$

Usually ships in 3-10 days

0

36

Dixon 539121088

PULLEY GUARD

$

$

Not available

37

Dixon 539121089

PULLEY GUARD

$

$

Not available

38

Dixon 539121090

HUB ASM

$

$

Not available

39

Dixon 539121268

44 W-BAFFLE WLDT.

$103.99

$

Usually ships in 3-10 days

0

40

Dixon 539121357

HINGE

$

$

Not available

41

Dixon 539121378

44 DEFLECTOR

$

$

Not available

42

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

43

Dixon 539121478

BOLT 3/8 X 6 GR5

$4.99

$

Usually ships in 3-10 days

0

44

Dixon 539121604

BLOW-BY BAFFLE

$66.99

$

Usually ships in 3-10 days

0

45

Dixon 539123604

ROLLER BRKT.

$24.99

$

Usually ships in 3-10 days

0

46

Dixon 539122249

DECAL, BELT ROUTING (18656)

$4.99

$

Usually ships in 3-10 days

0

47

Dixon 539122574

BUSHING

$24.99

$

Usually ships in 3-10 days

0

48

Dixon 539122633

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

49

Dixon 539118658

DECK W/W-BAFFLE 44" DIX
(Superseded to 539118130)

$

$

Not available

50

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

51

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

52

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

53

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

54

Dixon 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

55

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

56

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

57

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

58

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

Dixon 539130509

SPRING, TORSION

Note: NOT SHOWN

$24.99

$

Usually ships in 3-10 days

0
