Speed ZTR 44 (965981001) - Dixon 44" Speed ZTR Zero-Turn Mower (2009-05) MOWER DECK / CUTTING DECK Parts Diagram

44" SpeedZTR Zero-Turn Mower

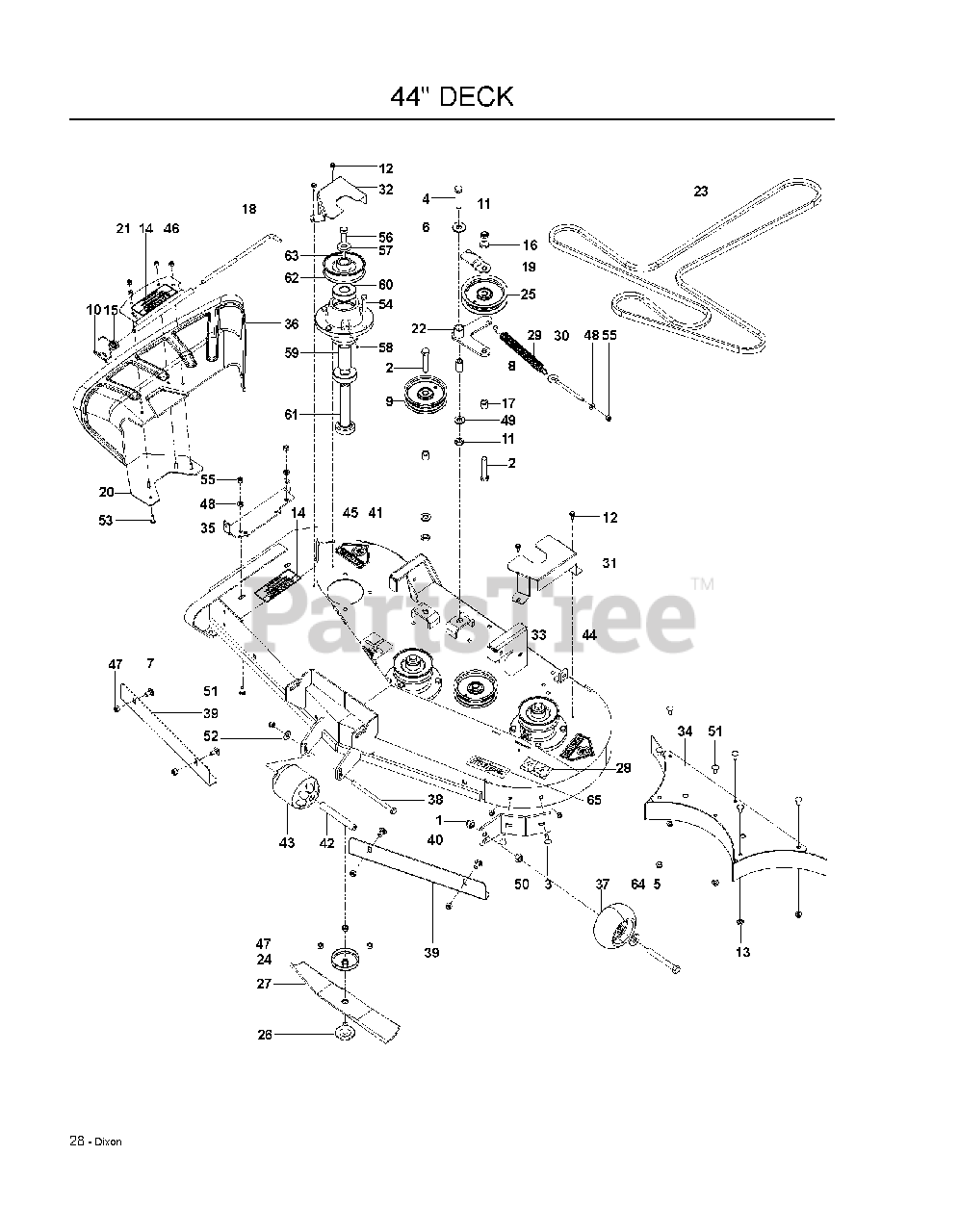

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

2

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

3

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

4

Dixon 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

5

Dixon 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 17

0

6

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

7

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

8

Dixon 539115220

BUSHING DIXON 1080

$

$

Not available

9

Dixon 539115278

PULLEY IDLER

$37.99

$

Usually ships in 3-10 days

0

10

Dixon 539115501

PIN, COTTER 1 3/4

$3.99

$

In Stock, only 1 left!

0

11

Dixon 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$4.99

$

In Stock, only 3 left!

0

12

Dixon 539115643

SCREW, TAP & DR #12-14 X 3/4

$10.99

$

In Stock, only 2 left!

0

13

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539115717

DECAL, DANGER

$10.99

$

Usually ships in 3-10 days

0

15

Dixon 539130509

SPRING, TORSION

$24.99

$

Usually ships in 3-10 days

0

16

Dixon 539115948

HD PULLEY SPACER

$4.99

$

Usually ships in 3-10 days

0

17

Dixon 539116010

BUSHING

$

$

Not available

18

Dixon 539116225

DEFLECTOR PIN

$

$

Not available

19

Dixon 539116351

BELT GUARD BLK

$

$

Not available

20

Dixon 539117239

DEFLECTOR BRKT

$30.99

$

Usually ships in 3-10 days

0

21

Dixon 539117262

DEFLECTOR MT BRKT
(Superseded to 539119443)

$103.99

$

Usually ships in 3-10 days

0

22

Dixon 539118155

IDLER WLDT.

$

$

Not available

23

Dixon 539116424

V-BELT 142

$

$

Not available

24

Dixon 539119266

TRASH GUARD

$

$

Not available

25

Dixon 539119555

IDLER PULLEY

$

$

Not available

26

Dixon 539119637

BLADE BOLT

$

$

Not available

27

Dixon 539119836

BLD 44" HI LIFT FUS

$36.99

$

Usually ships in 3-10 days

0

28

Dixon 539119894

DECAL, DECK 44"

$4.99

$

Usually ships in 3-10 days

0

29

Dixon 539120920

SPRING, DECK BELT

$

$

Not available

30

Dixon 539120993

EYE BOLT 4.5`

$46.99

$

Usually ships in 3-10 days

0

31

Dixon 539121088

PULLEY GUARD

Note: LT

$

$

Not available

32

Dixon 539121089

PULLEY GUARD

Note: RT

$

$

Not available

33

Dixon 539121090

HUB ASM

$

$

Not available

34

Dixon 539121268

44 W-BAFFLE WLDT.

$103.99

$

Usually ships in 3-10 days

0

35

Dixon 539121357

HINGE

$

$

Not available

36

Dixon 539121378

44 DEFLECTOR

$

$

Not available

37

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

38

Dixon 539121478

BOLT 3/8 X 6 GR5

$4.99

$

Usually ships in 3-10 days

0

39

Dixon 539121604

BLOW-BY BAFFLE

$66.99

$

Usually ships in 3-10 days

0

40

Dixon 539123604

ROLLER BRKT.

$24.99

$

Usually ships in 3-10 days

0

41

Dixon 539122249

DECAL, BELT ROUTING (18656)

$4.99

$

Usually ships in 3-10 days

0

42

Dixon 539122574

BUSHING

$24.99

$

Usually ships in 3-10 days

0

43

Dixon 539122633

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

44

Dixon 522745301

DECK W/DECALS - SZ44

$944.99

$

Usually ships in 3-10 days

0

45

Dixon 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

46

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

47

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

48

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

Note: SAE FLT

$3.99

$

In Stock, Qty 11

0

49

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

50

Dixon 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

51

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

52

Dixon 539990517

WASHER 3/8 FLAT

Note: FLT STD

$3.99

$

Usually ships in 3-10 days

0

53

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

54

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

55

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

56

Dixon 539115511

1/2-20 UNF X 1 1/4 HHBLT

$4.99

$

Usually ships in 3-10 days

0

57

Dixon 539115636

WASHER .525 X 1.375 X .25

$9.99

$

In Stock, only 1 left!

0

58

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

59

Dixon 539121180

HUB SPACER-2.349

$24.99

$

Usually ships in 3-10 days

0

60

Dixon 539119260

BEARING - 6305 - 2RS

$

$

Not available

61

Dixon 539121179

SHAFT 50S

$

$

Not available

62

Dixon 539119812

V-PULLEY

$109.99

$

Usually ships in 3-10 days

0

63

Dixon 539116196

OUTER SHAFT KEY

$4.99

$

In Stock, only 1 left!

0

64

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

65

Dixon 539117707

DECAL, FUSION

$7.49

$

Usually ships in 3-10 days

0
