Speed ZTR 4216 CA (966505101) - Dixon 42" Speed ZTR Zero-Turn Mower (2010-01) FRAME Parts Diagram

42" SpeedZTR Zero-Turn Mower

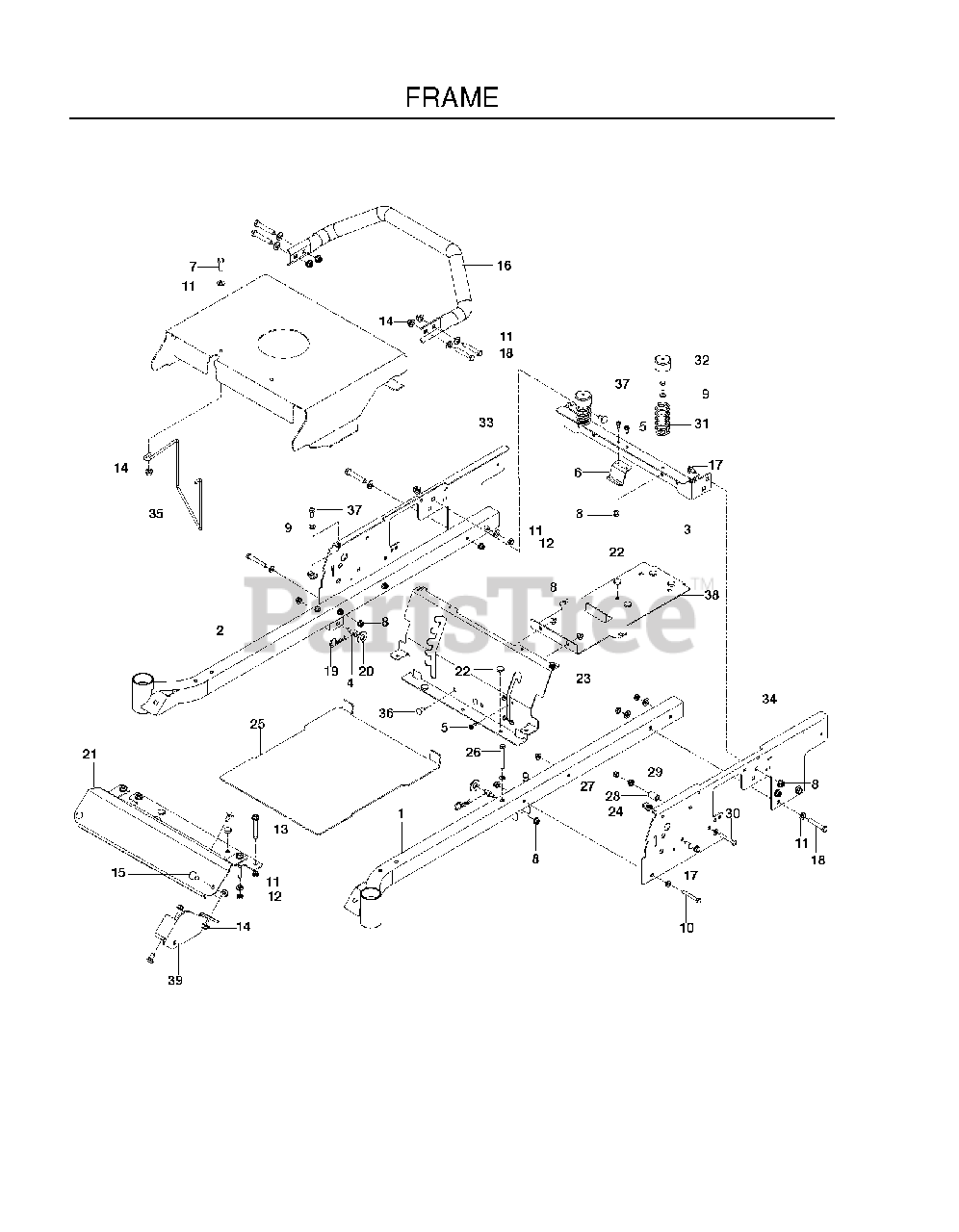

FRAME Parts Diagram

  • Title

1

Dixon 525454703

FRAME, TUBE, LH, BLUE

$182.99

$

Usually ships in 3-10 days

0

2

Dixon 525454903

FRAME TUBE, RH, BLUE

$182.99

$

Usually ships in 3-10 days

0

3

Dixon 574356403

SEAT SUPPORT, REAR, BLUE

$

$

Not available

4

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

5

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

6

Dixon 525864502

HOLDING DEVICE, FUEL TANK, BLK

$12.99

$

Usually ships in 3-10 days

0

7

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

8

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

9

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

10

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

11

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

13

Dixon 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

15

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

16

Dixon 574354703

IMPACT BAR, BLUE

$

$

Not available

17

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

21

Dixon 574779802

FOOT REST, BLUE

$

$

Not available

22

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

23

Dixon 575661303

PANEL.SEAT.SUPPORT.BLUE.DIXON

$84.99

$

Usually ships in 3-10 days

0

24

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

25

Dixon 574356203

FOOT PLATE, BLUE

$51.99

$

Usually ships in 3-10 days

0

26

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

27

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539119087

BUSHING

$9.99

$

Usually ships in 3-10 days

0

29

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Dixon 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539122632

SEAT SPRING

$9.49

$

In Stock, only 2 left!

0

32

Dixon 539119884

SPRING CAP

$

$

Not available

33

Dixon 575328403

PLATE.RH.SIDE.BLUE.DIXON

$84.99

$

Usually ships in 3-10 days

0

34

Dixon 575328303

PLATE.LH.SIDE.BLUE.DIXON

$

$

Not available

35

Dixon 575952201

KEEPER, BELT ENGINE

$

$

Not available

36

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Dixon 525798402

SUPPORT, TANK/BATT, BLK

$60.99

$

Usually ships in 3-10 days

0

39

Dixon 525605502

BRACKET, FRONT DECK, BLK

$46.99

$

Usually ships in 3-10 days

0

Dixon 539110290

FOAM STRIP, FUEL TANK

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0
