Speed ZTR 42 - Dixon 42" Speed ZTR Zero-Turn Mower (2006) MOWER DECK Parts Diagram

42" SpeedZTR Zero-Turn Mower

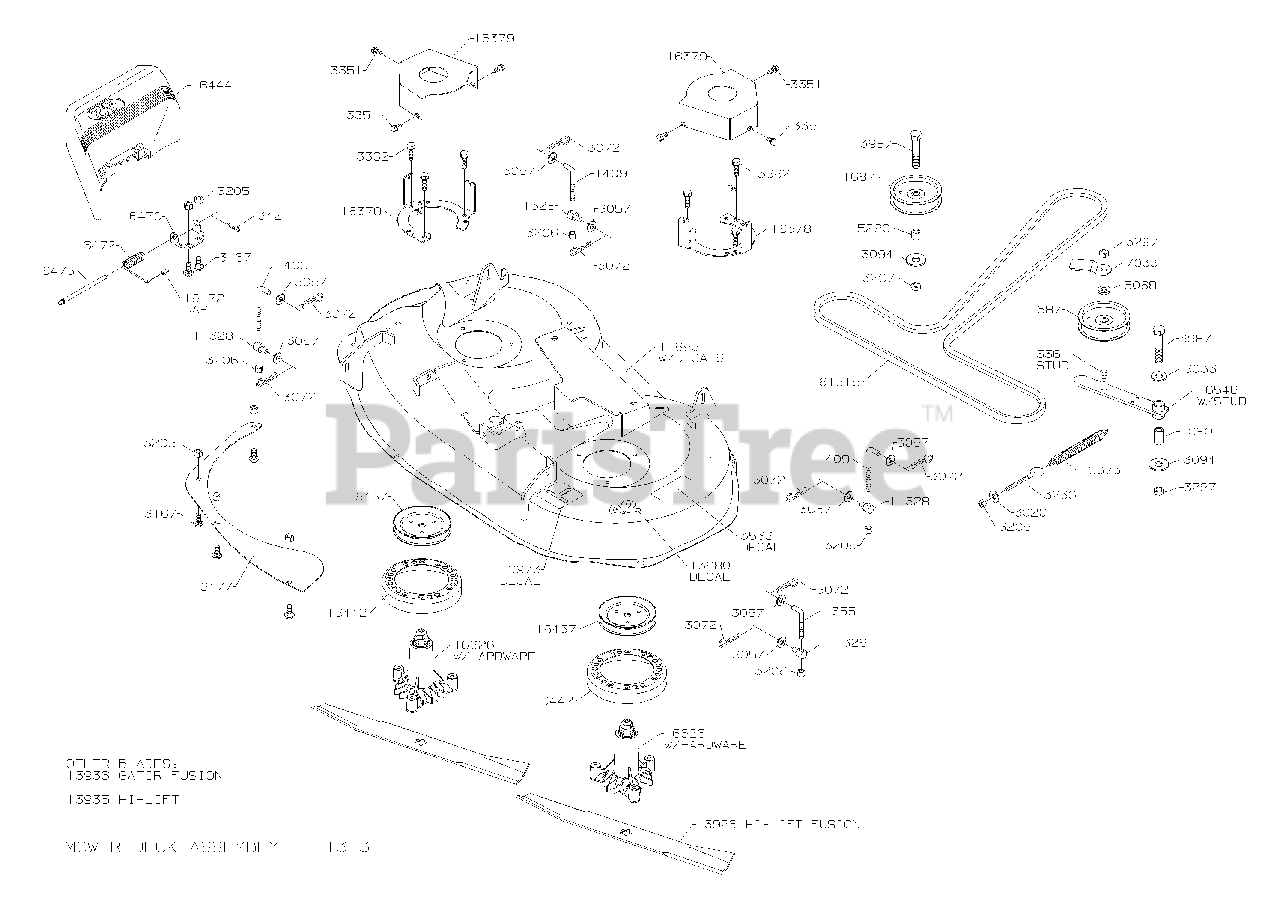

MOWER DECK Parts Diagram

  • Title

1080

1080

BUSHING

$

$

Not available

1355

1355

L ROD 3-1/8"

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3236

3236

EYE BOLT 5/16 X 3.50

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3362

3362

5/16-18X3/4 HWH TFS

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

5068

5068

HD PULLEY SPACER

$

$

Not available

5290

5290

BUSHING

$

$

Not available

7033

7033

BELT GUARD BLK

$

$

Not available

10973

10973

DECAL, BELT ROUTING

$

$

Not available

11313

11313

DECK ASM. 42"

$

$

Not available

11328

11328

SWIVEL

$

$

Not available

11893

11893

DECK ASM. 42"

$

$

Not available

13926

13926

BLD 42" HI LIFT FUS

$

$

Not available

13935

13935

BLD 42" HI LIFT

$

$

Not available

13936

13936

BLD 42" GATOR FUSION

$

$

Not available

13980

13980

DECAL, DECK 42"

$

$

Not available

16373

16373

SPRING DECK BELT

$

$

Not available

16378

16378

MT. PULLEY GUARD

$

$

Not available

16379

16379

PULLEY GUARD

$

$

Not available

16437

16437

DECK PULLEY

$

$

Not available

16442

16442

STRIPPER

$

$

Not available

16444

16444

DEFLECTOR 42` AYP

$

$

Not available

16470

16470

DEFLECTOR MT. 42`

$

$

Not available

16472

16472

SPRING DEFLECTOR

$

$

Not available

16476

16476

PIN DEFLECTOR

$

$

Not available

16477

16477

BAFFLE VORTEX

$

$

Not available

16548

16548

IDLER ARM W/STUD

$

$

Not available

16626

16626

R/B 16626 DECK SPINDLE W/HARD

$

$

Not available

18172

18172

PLASTIC CAP

$

$

Not available

61515

61515

R/B 61515 B108 BELT KEVLAR

$

$

Not available
