Speed ZTR 42 (968999546) - Dixon 42" Speed ZTR Zero-Turn Mower (2007) CONSOLE Parts Diagram

42" SpeedZTR Zero-Turn Mower

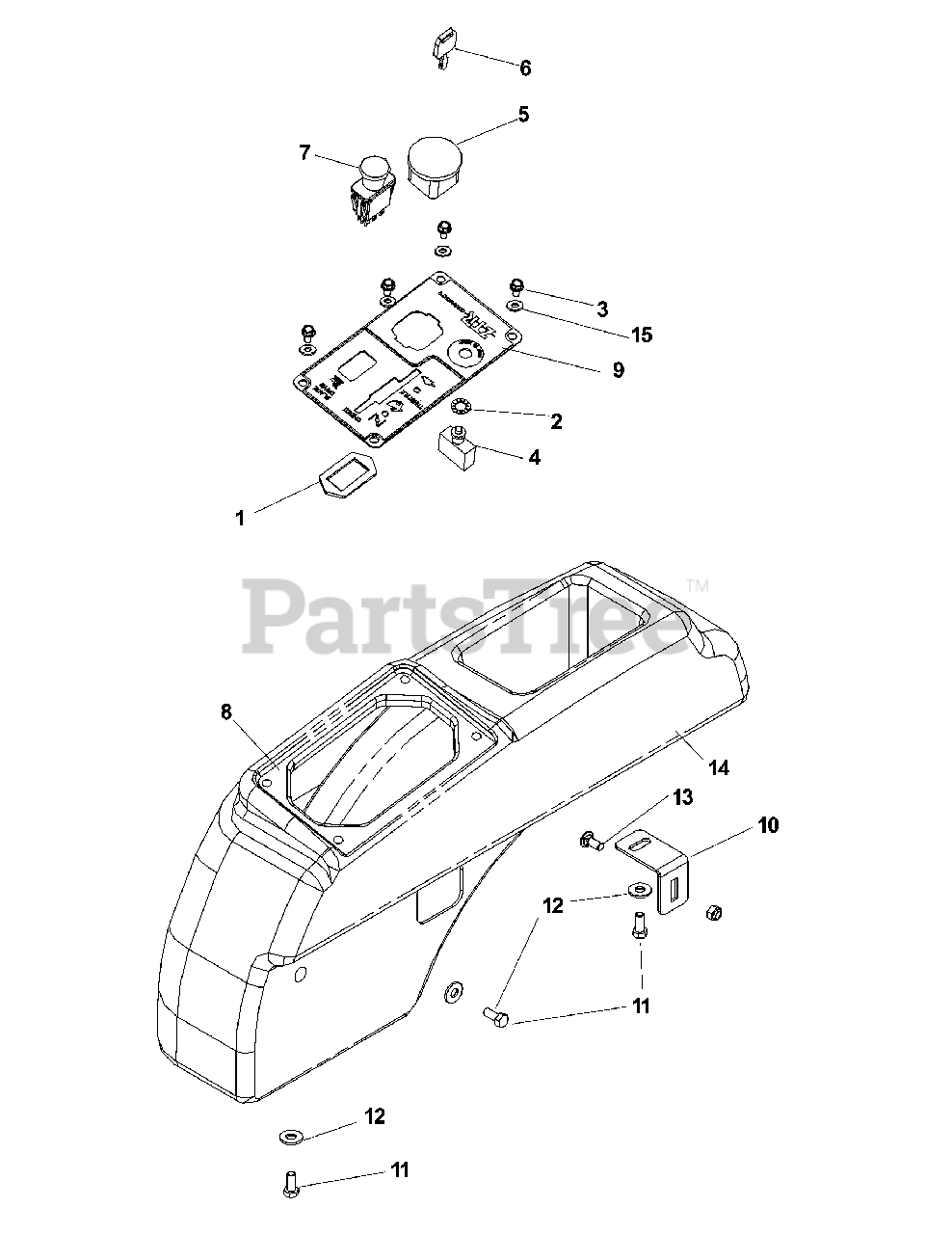

CONSOLE Parts Diagram

  • Title

1

Dixon 539115208

PTO SWITCH RETAINER

$3.99

$

Usually ships in 3-10 days

0

2

Dixon 539115586

7/16 INT TOOTH LWASH

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

4

Dixon 539115850

CIRCUIT BREAKER W58XB1A4A15

$26.99

$

Usually ships in 3-10 days

0

5

Dixon 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

6

Dixon 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

7

Dixon 539101768

SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

8

Dixon 539120906

FENDER RH

$

$

Not available

9

Dixon 539120978

CONTROL PANEL

$

$

Not available

10

Dixon 539121276

TANK BRKT.

$

$

Not available

11

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

12

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

13

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available
