Speed ZTR 42 (966808404) - Dixon 42" Speed ZTR Zero-Turn Mower (2013-09) BRAKE / REAR MOWER LIFT Parts Diagram

42" SpeedZTR Zero-Turn Mower

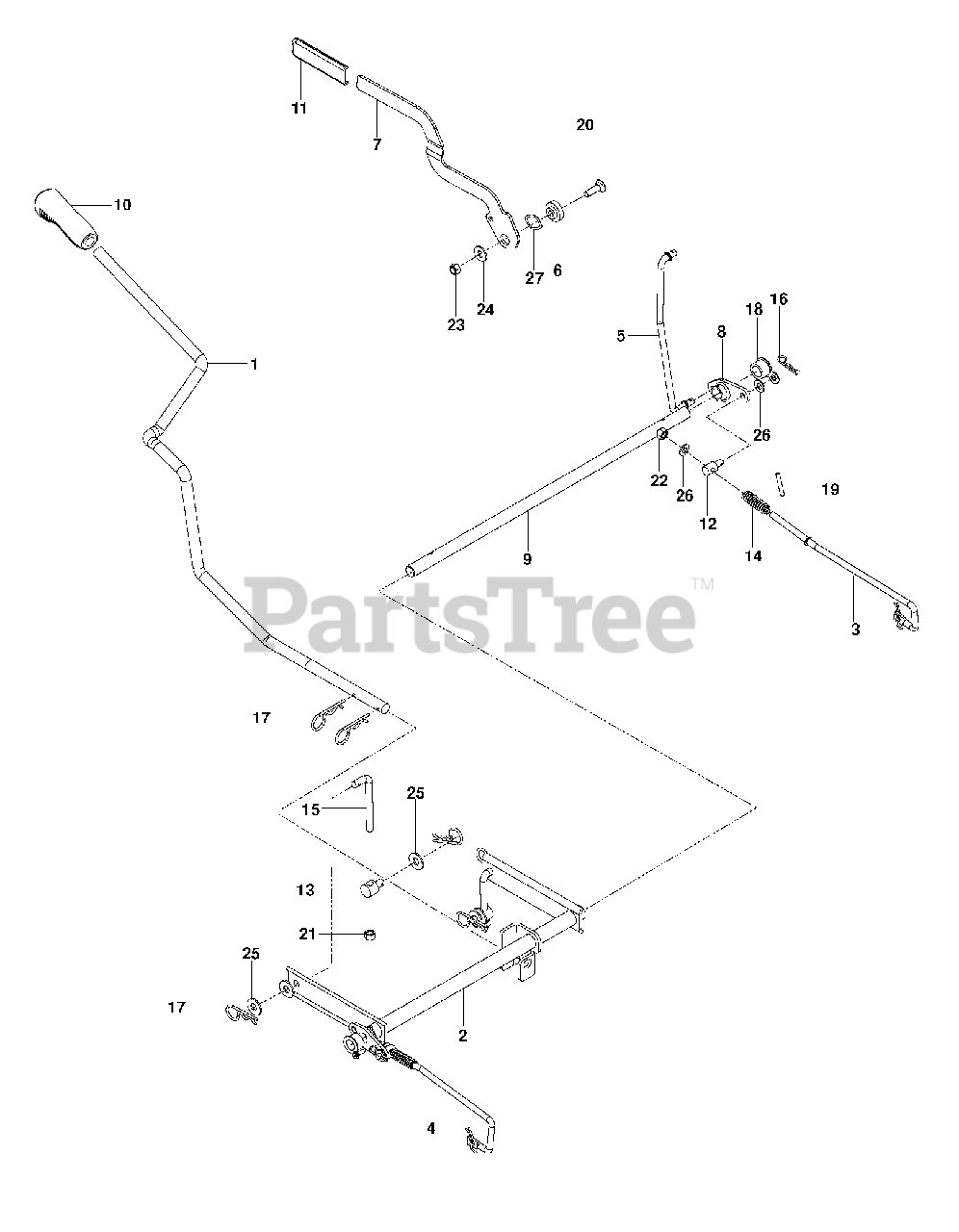

BRAKE / REAR MOWER LIFT Parts Diagram

  • Title
1

Dixon 525580402

ARM, LIFT HANDLE, BLK

$48.99

$

In Stock, only 1 left!

0

2

Dixon 574356802

SHAFT, LIFT WLDMT, BLACK

$121.99

$

In Stock, only 2 left!

0

3

Dixon 525583601

LINKAGE, EZT BRAKE RT

Note: RH

$26.99

$

In Stock, only 4 left!

0

4

Dixon 525583701

LINKAGE, EZT BRAKE LT

Note: LH

$9.99

$

Usually ships in 3-10 days

0

5

Dixon 525735701

LINKAGE, BRAKE, UPPER

$9.99

$

Usually ships in 3-10 days

0

6

Dixon 539120220

BRAKE ARM PIVOT

$

$

Not available

7

Dixon 525485602

HANDLE, BRAKE, BLK

$27.99

$

Usually ships in 3-10 days

0

8

Dixon 525580201

BELLCRANK, BRAKE

$54.99

$

Usually ships in 3-10 days

0

9

Dixon 574356601

ROD, BRAKE

$30.99

$

Usually ships in 3-10 days

0

10

Dixon 532196492

OBSOLETE - GRIP.LEVER.5625.ID
(Superseded to 532411555)

$9.49

$

In Stock, only 1 left!

0

11

Dixon 539120921

GRIP BRAKE HANDLE

$13.99

$

Usually ships in 3-10 days

0

12

Dixon 539112308

BRAKE SWIVEL

$10.99

$

In Stock, only 1 left!

0

13

$13.99

$

In Stock, only 2 left!

0

14

$22.99

$

In Stock, only 1 left!

0

15

Dixon 539115247

L ROD 3-1/8"

$

$

Not available

16

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539109368

PLASTIC BUSHING

$4.99

$

Usually ships in 3-10 days

0

19

Dixon 539101082

ROLL PIN 3/16 X 1-1/4 ZD

$3.99

$

In Stock, only 1 left!

0

20

Dixon 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

23

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

24

Dixon 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

27

Dixon 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0
