Speed ZTR 42 (966657701) - Dixon 42" Speed ZTR Zero-Turn Mower (2010-09) BRAKE / REAR MOWER LIFT Parts Diagram

42" SpeedZTR Zero-Turn Mower

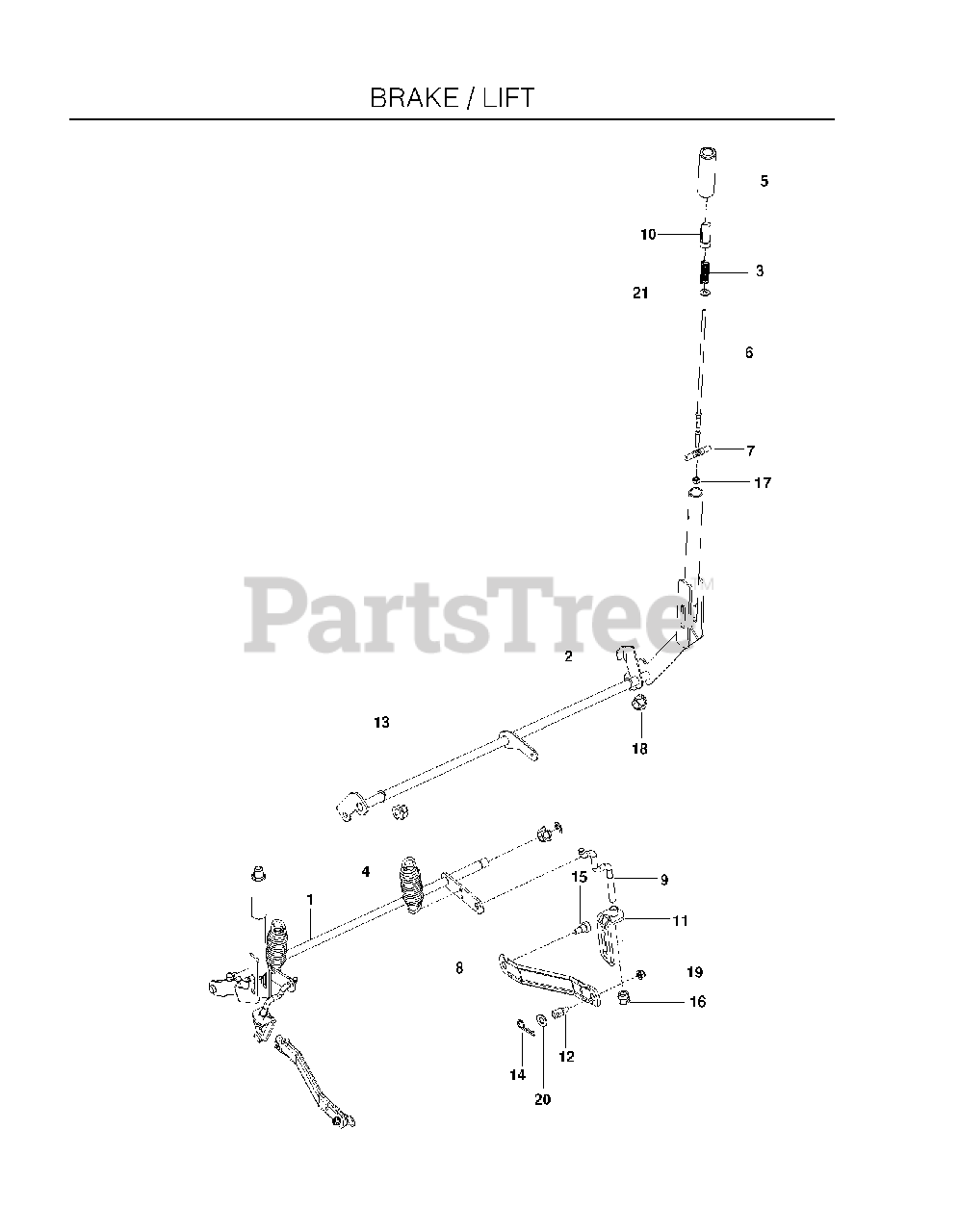

BRAKE / REAR MOWER LIFT Parts Diagram

  • Title

1

Dixon 574216604

SHAFT, LIFT, MED, BLK
(Superseded to 586760203)

$45.99

$

In Stock, only 2 left!

0

2

Dixon 522710804

No Description Available
(Superseded to 580435801)

$120.99

$

Usually ships in 3-10 days

0

3

Dixon 510030701

SPRING, COMPRESSION

$

$

Not available

4

Dixon 539118762

SPRING

$

$

Not available

5

Dixon 510207201

GRIP, HANDLE, BLACK

$6.99

$

In Stock, only 4 left!

0

6

Dixon 510422901

ROD, HANDLE RELEASE

$

$

Not available

7

Dixon 516008801

ROD, LATCH RELEASE
(Superseded to 583629301)

$6.49

$

In Stock, only 1 left!

0

8

Dixon 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

9

Dixon 525847201

LINK, REAR SUSPENSION
(Superseded to 587623001)

$12.99

$

In Stock, only 1 left!

0

10

Dixon 510207301

BUTTON, PUSH, BLACK

$5.99

$

In Stock, only 1 left!

0

11

Dixon 522858601

ASSEMBLY, BRKT LINK
(Superseded to 587623001)

$12.99

$

In Stock, only 1 left!

0

12

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

13

Dixon 539105069

5/8 E-RING

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 5

0

17

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

18

Dixon 510184901

PLASTIC NUT

$6.49

$

In Stock, only 3 left!

0

19

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Dixon 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

21

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available
