Speed ZTR 42 (966657602) - Dixon 42" Speed ZTR Zero-Turn Mower (2012-09) MOWER DECK / CUTTING DECK Parts Diagram

42" SpeedZTR Zero-Turn Mower

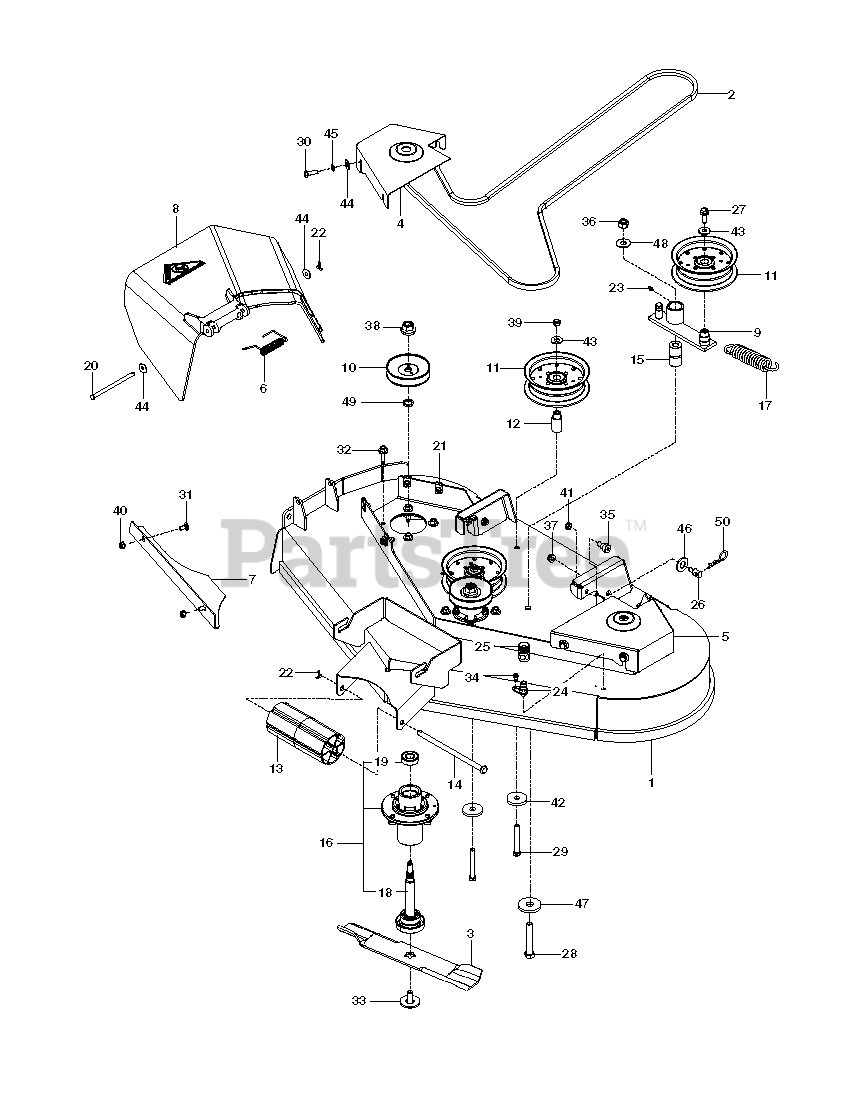

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Dixon 525307402

DECK W/DECALS, 42 TF

Note: w / SAFETY DECALS

$

$

Not available

2

$66.99

$

In Stock, Qty 11

0

3

Dixon 539112078

BLADE, 14 5/8"

$22.99

$

In Stock, Qty 10

0

4

Dixon 525341401

SHIELD, BELT RH - BLUE

$75.99

$

Usually ships in 3-10 days

0

5

Dixon 525341501

SHIELD, BELT LH - BLUE

$75.99

$

Usually ships in 3-10 days

0

6

Dixon 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 2 left!

0

7

Dixon 539112413

CONFINEMENT PLATE, 42"

$40.99

$

Usually ships in 3-10 days

0

8

Dixon 539110731

DISCHARGE CHUTE 42"

$56.99

$

In Stock, only 3 left!

0

9

Dixon 539112198

IDLER ARM

$121.99

$

In Stock, only 3 left!

0

10

Dixon 525348501

PULLEY, MADREL 3.70 OP

$10.99

$

In Stock, only 2 left!

0

11

Dixon 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

In Stock, Qty 11

0

12

Dixon 539112169

IDLER BUSHING

$

$

Not available

13

Dixon 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 13

0

14

Dixon 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 19

0

15

Dixon 539103427

PIVOT BUSHING

$9.49

$

In Stock, Qty 8

0

16

Dixon 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 8

0

17

$12.99

$

In Stock, Qty 5

0

18

Dixon 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 14

0

19

Dixon 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

20

Dixon 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

21

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

22

Dixon 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

23

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

24

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

25

Dixon 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

26

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

27

Dixon 539990582

HCS 3/8C X 1 SERRATED HEAD

$

$

Not available

28

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

29

Dixon 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

30

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

31

Dixon 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

32

Dixon 539107630

OBSOLETE - WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

33

Dixon 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

34

Dixon 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 5

0

35

Dixon 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

36

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

37

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

38

Dixon 539107590

OBSOLETE - LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

39

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

40

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

41

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

42

Dixon 539106504

SPINDLE WASHER

$

$

Not available

43

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

44

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

45

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

46

Dixon 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

47

Dixon 539102243

WASHER, SUPPORT

$

$

Not available

48

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

49

Dixon 539107520

OBSOLETE - WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

50

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0
