Speed ZTR 42 (966496301) - Dixon 42" Speed ZTR Zero-Turn Mower (2009-12) HYDRAULIC PUMP MOTOR Parts Diagram

42" SpeedZTR Zero-Turn Mower

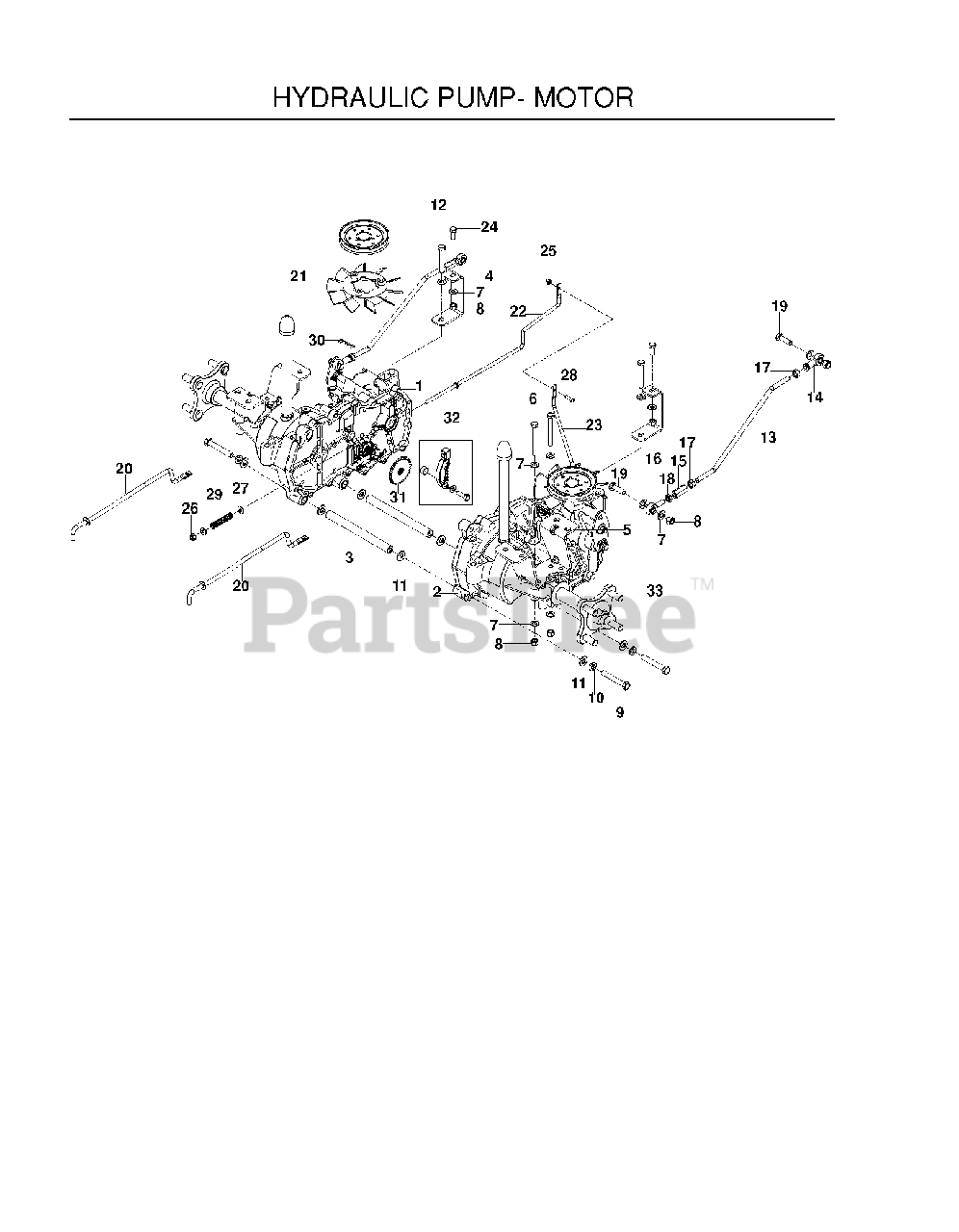

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Dixon 510375601

HG_EZT, LT

Note: LT

$1091.99

$

Usually ships in 3-10 days

0

2

Dixon 510375602

HG_EZT, RT

Note: RT

$1091.99

$

Usually ships in 3-10 days

0

3

Dixon 510184101

SPACER TUBE, EZT
(Superseded to 510184104)

$

$

Not available

4

Dixon 522460702

SUPPORT.FRONT.TRANS.BLACK.
(Superseded to 580806502)

Note: FRT

$6.99

$

Usually ships in 3-10 days

0

5

Dixon 510185102

EZT MOUNT, REAR, BLACK

Note: REAR

$37.99

$

In Stock, only 2 left!

0

6

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

7

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

8

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539990637

HCS 3/8C X 2 1/2
(Superseded to 596434201)

$4.99

$

In Stock, only 2 left!

0

10

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

11

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

13

Dixon 522945001

ROD, MOTION CONTROL
(Superseded to 580624201)

$4.99

$

In Stock, only 1 left!

0

14

Dixon 539115729

RH ROD END
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

15

Dixon 539116689

ROD END COUPLER

$

$

Not available

16

Dixon 539116690

ROD.END.LH
(Superseded to 588692502)

$10.99

$

In Stock, only 1 left!

0

17

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

20

Dixon 522941101

LINKAGE, BYPASS, EZT

$14.99

$

Usually ships in 3-10 days

0

21

Dixon 539120785

HG_HYDRO FAN

$37.99

$

In Stock, only 1 left!

0

22

Dixon 522909001

LINKAGE, BRAKE, LT
(Superseded to 574030501)

Note: LT

$

$

Not available

23

Dixon 574030502

LINKAGE, BRAKE RT

Note: RT

$

$

Not available

24

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

25

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

26

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

27

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

28

Dixon 539108535

SCR #10-24 X 3/4

$4.99

$

In Stock, Qty 6

0

29

Dixon 539110342

SPRING

$

$

Not available

30

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539120080

HG_DISC COG BRAKE

$34.99

$

Usually ships in 3-10 days

0

32

Dixon 539120079

HG_KIT BRAKE ARM (EZT)

$37.99

$

In Stock, only 1 left!

0

33

Dixon 539120064

HUB KIT (H-G #70314)
(Superseded to 575507001)

$319.99

$

Usually ships in 3-10 days

0

Dixon 539110411

BELT, HYDRO PUMP

Note: NOT SHOWN

$31.99

$

In Stock, Qty 15

0
