Speed ZTR 38 - Dixon 38" Speed ZTR Zero-Turn Mower (2005) CHASSIS Parts Diagram

38" SpeedZTR Zero-Turn Mower

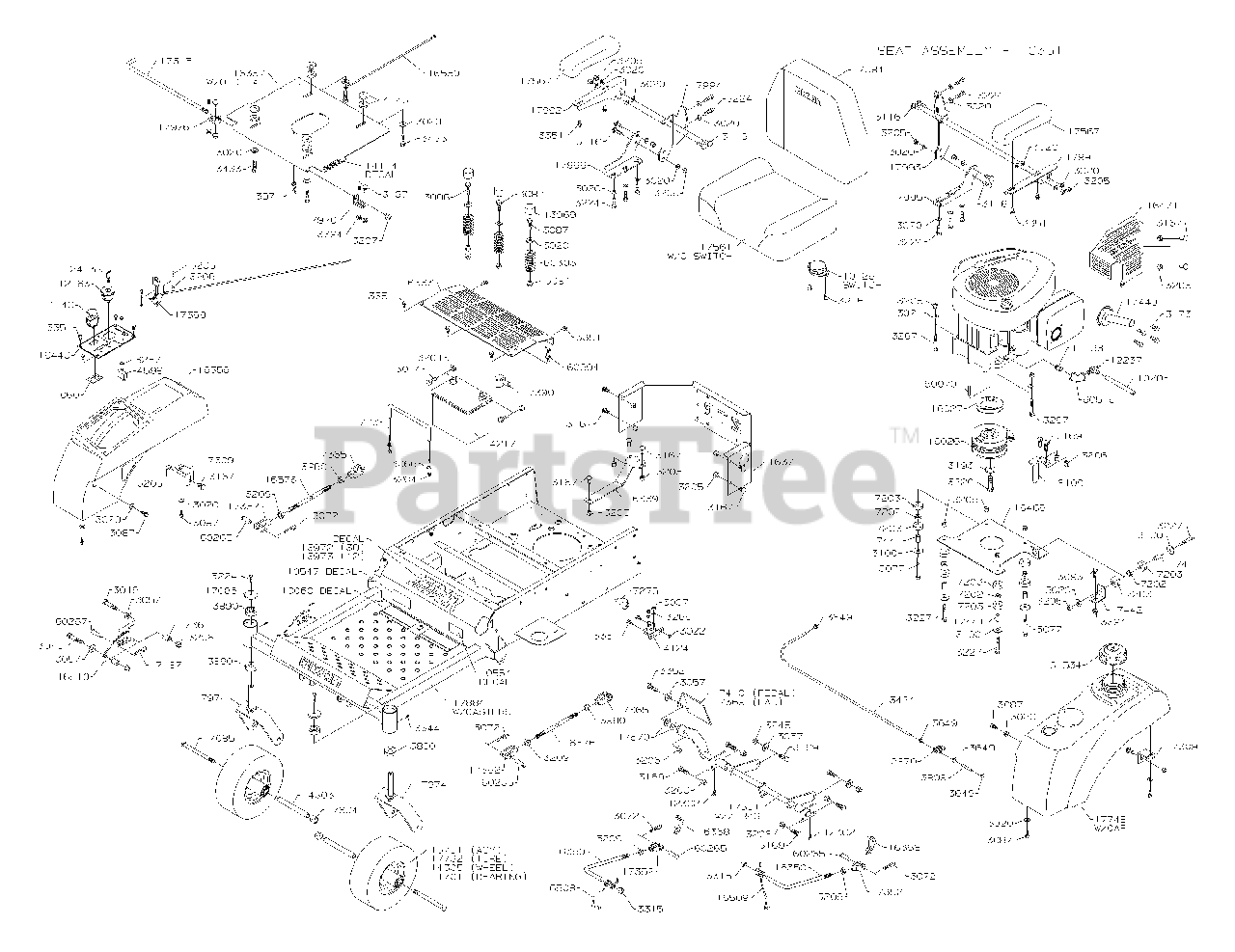

CHASSIS Parts Diagram

  • Title

1060

1060

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3215

3215

1/4-20X3/4RD HD SCR

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3315

3315

1/2-20 HEX NUT W/NY

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3424

3424

HOSE 1/4 X 44

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3808

3808

HOSE 1/4 X 5.5

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

13969

13969

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

3980

Dixon 3980

1/2-20 LH HEX JAM NUT

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

7202

7202

ISO-MOUNT INSERT

$

$

Not available

7203

7203

ISO-MOUNT BUSHING

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

10060

10060

DECAL, OPERATING INST.

$

$

Not available

10126

10126

R/B 10126 SEAT SWITCH

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

10547

10547

DECAL

$

$

Not available

10554

10554

DECAL, FLAG

$

$

Not available

11138

11138

NIPPLE

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

12870

12870

SHUT OFF VALVE

$

$

Not available

13751

13751

WHEEL/TIRE ASM.

$

$

Not available

13972

13972

DECAL, SPDZTR 38

$

$

Not available

13973

13973

DECAL SPDZTR 42`

$

$

Not available

14114

14114

DECAL, PARK BRAKE

$

$

Not available

14149

14149

CLUTCH SWITCH

$

$

Not available

14303

14303

SPACER

$

$

Not available

14305

14305

FRONT WHEEL

$

$

Not available

16026

16026

ELEC. CLUTCH

$

$

Not available

16027

16027

ENGINE PULLEY

$

$

Not available

16109

16109

CLUTCH STOP

$

$

Not available

16350

16350

ROD

$

$

Not available

16351

16351

SEAT CORDURA

$

$

Not available

16356

16356

FENDER RH

$

$

Not available

16357

16357

SEAT PLATE

$

$

Not available

16363

16363

FAN GUARD

$

$

Not available

16368

16368

LINK

$

$

Not available

16369

16369

BRACE

$

$

Not available

16371

16371

NON SALEABLE REAR CHANNEL

$

$

Not available

16446

16446

CONTROL PANEL

$

$

Not available

16468

16468

R/B 16629 ISO MT. SPDZTR 38/4

$

$

Not available

16471

16471

HEAT SHEILD MUFFLER

$

$

Not available

16508

16508

SPRING TORSION RH

$

$

Not available

16509

16509

SPRING TORSION LH

$

$

Not available

16510

16510

LIFT QUADRANT (PLATED)

$

$

Not available

16550

16550

$

$

Not available

16576

16576

LINK DECK ADJ

$

$

Not available

17085

17085

RHSNB 1/2-13 X 6.50 GR5 ZD

$

$

Not available

17086

17086

WASHER 2.00 X .328 X.25

$

$

Not available

17187

17187

STAINLESS COTTER

$

$

Not available

17309

17309

TANK BRKT.

$

$

Not available

17315

17315

SEAT PIN

$

$

Not available

17352

17352

CLEVIS FEMALE-RH

$

$

Not available

17359

17359

THROTTLE CABLE

$

$

Not available

17361

17361

SPACER

$

$

Not available

17365

17365

CLEVIS FEMALE-LH

$

$

Not available

17369

17369

$

$

Not available

17390

17390

TERMINAL COVER

$

$

Not available

17410

17410

FOOT PEDAL (PLATED)

$

$

Not available

17441

17441

ISO MT. BUSHING

$

$

Not available

17442

17442

ISO MT. BRKT.

$

$

Not available

17449

17449

MUFFLER EXT.(PAINTED)

$

$

Not available

17561

17561

CORDURA SEAT CUSHION

$

$

Not available

17567

17567

POLYURETHANE ARMREST

$

$

Not available

17661

17661

LIFT SHAFT W/ZERKS

$

$

Not available

17670

17670

WASHER

$

$

Not available

17732

17732

TIRE

$

$

Not available

17748

17748

TANK W/CAP

$

$

Not available

17834

17834

NUT, HEX 1/2-13 W/NYLOK

$

$

Not available

17884

17884

$

$

Not available

17974

17974

CASTER

$

$

Not available

17976

17976

SEAT PIVOT

$

$

Not available

17984

17984

$

$

Not available

17991

17991

ARM REST BRACKET LH

$

$

Not available

17992

17992

ARM REST BRACKET RH

$

$

Not available

17993

17993

SEAT BACK BRKT. LH

$

$

Not available

17994

17994

SEAT BACK BRKT. RH

$

$

Not available

17995

17995

SEAT BOT.BRKT. LH

$

$

Not available

17996

17996

SEAT BOT.BRKT. RH

$

$

Not available

60070

60070

KEY 1/4`SQ X 1-1/4`

$

$

Not available

60265

60265

CLEVIS PIN 1/2X1-1/2` L

$

$

Not available

60267

60267

CLEVIS PIN 1/2X2`LG.

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60515

60515

ELBOW3/8 9OD SCH40 CAST

$

$

Not available

60894

60894

KURLYLOK RICHCO#BHKL7504

$

$

Not available

61534

61534

GASOLINE CAP

$

$

Not available
