Speed ZTR 36 (968999539) - Dixon 36" Speed ZTR Zero-Turn Mower, 16hp Briggs & Stratton (2008) ENGINE BRIGGS & STRATTON 16 AND 19 HP Parts Diagram

36" SpeedZTR Zero-Turn Mower, 16hp Briggs & Stratton

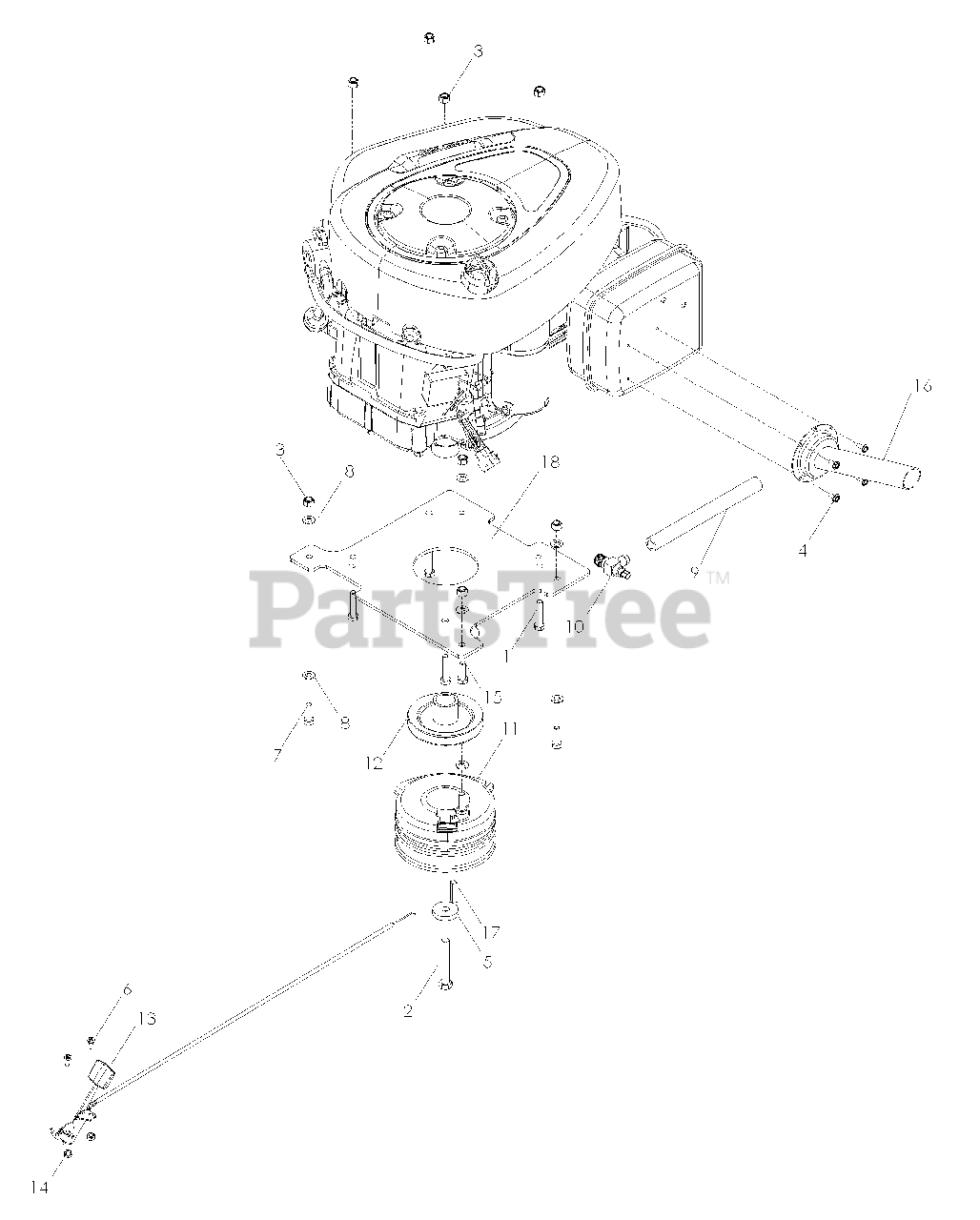

ENGINE BRIGGS & STRATTON 16 AND 19 HP Parts Diagram

  • Title

1

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

2

Dixon 539110065

HCS 7/16-20 X 2-3/4

$4.99

$

Usually ships in 3-10 days

0

3

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

4

Dixon 539115537

SCREW, TAP #10-16 X 1/2

$3.99

$

Usually ships in 3-10 days

0

5

Dixon 539115546

WASHER .43X1.38X.25

$4.99

$

In Stock, only 3 left!

0

6

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

7

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

8

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539117429

OIL DRAIN HOSE

$7.49

$

Usually ships in 3-10 days

0

10

Dixon 539118893

OIL DRAIN

$

$

Not available

11

Dixon 539120756

ELEC. CLUTCH

$

$

Not available

12

Dixon 539120757

ENGINE PULLEY

$

$

Not available

13

Dixon 539121316

THROTTLE CABLE

$

$

Not available

14

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

15

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

16

Dixon 539121371

MUFFLER EXT.(PAINTED)

$148.99

$

Usually ships in 3-10 days

0

17

Dixon 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

18

Dixon 539133051

PLATE, ENGINE MOUNT BLUE

$

$

Not available
