Speed ZTR 36 (965882201) - Dixon 36" Speed ZTR Zero-Turn Mower (2009-05) MOWER DECK / CUTTING DECK Parts Diagram

36" SpeedZTR Zero-Turn Mower

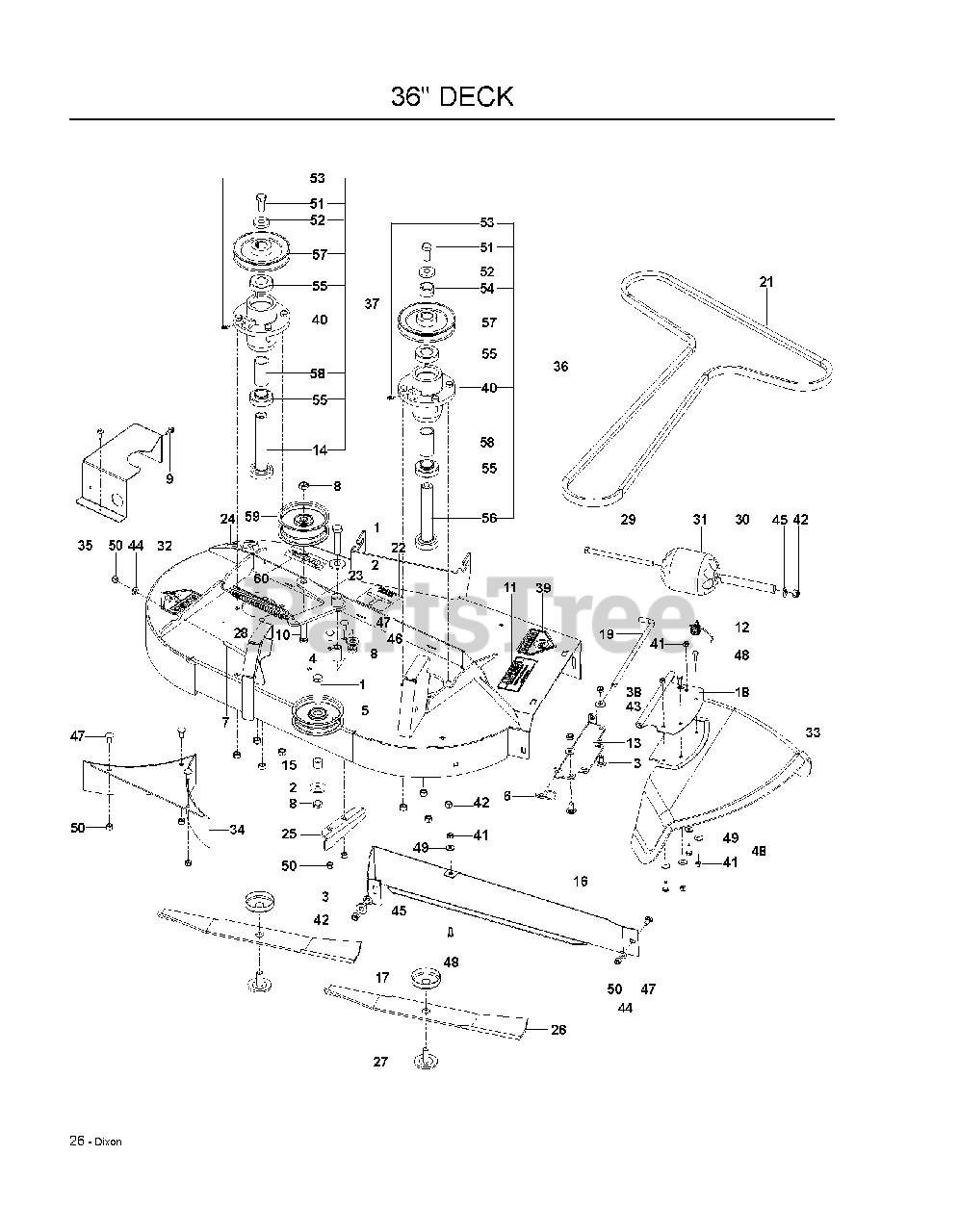

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

2

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

3

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 539115220

BUSHING DIXON 1080

$

$

Not available

5

Dixon 539115278

PULLEY IDLER

$37.99

$

Usually ships in 3-10 days

0

6

Dixon 539115501

PIN, COTTER 1 3/4

$3.99

$

Usually ships in 3-10 days

0

7

Dixon 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

8

Dixon 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$4.99

$

In Stock, only 3 left!

0

9

Dixon 539115643

SCREW, TAP & DR #12-14 X 3/4

$10.99

$

In Stock, only 2 left!

0

10

Dixon 539115647

STUD 1/2-13 X 2

$21.99

$

Usually ships in 3-10 days

0

11

Dixon 539115717

DECAL, DANGER

$10.99

$

Usually ships in 3-10 days

0

12

Dixon 539130509

SPRING, TORSION

Note: TORSION

$24.99

$

Usually ships in 3-10 days

0

13

Dixon 539115931

HINGE

$

$

Not available

14

Dixon 539119636

SHAFT 50S
(Superseded to 539119695)

Note: 50S

$

$

Not available

15

Dixon 539116010

BUSHING

$

$

Not available

16

Dixon 539116081

BAFFLE

$

$

Not available

17

Dixon 539116204

TRASH GUARD

Note: TRASH

$7.49

$

Usually ships in 3-10 days

0

18

Dixon 539116222

DEFLECTOR MT BRKT
(Superseded to 539117267)

Note: MOUNT

$84.99

$

Usually ships in 3-10 days

0

19

Dixon 539116225

DEFLECTOR PIN

$

$

Not available

20

Dixon 539116196

OUTER SHAFT KEY

Note: OUTER

$4.99

$

In Stock, only 1 left!

0

21

Dixon 539117811

BELT

$68.99

$

In Stock, only 1 left!

0

22

Dixon 539118057

DECAL, BELT ROUTING

$7.49

$

Usually ships in 3-10 days

0

23

Dixon 539118146

IDLER ARM WLDT., BLACK

$

$

Not available

24

Dixon 539118175

DECAL, DECK 36"

$

$

Not available

25

Dixon 539118178

BAFFLE DECK

$

$

Not available

26

Dixon 539118672

BLD 36" HI LIFT FUS

$

$

Not available

27

Dixon 539119637

BLADE BOLT

$

$

Not available

28

Dixon 539120920

SPRING, DECK BELT

$

$

Not available

29

Dixon 539121478

BOLT 3/8 X 6 GR5

$4.99

$

Usually ships in 3-10 days

0

30

Dixon 539122574

BUSHING

$24.99

$

Usually ships in 3-10 days

0

31

Dixon 539122633

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

32

Dixon 522745201

DECK W/DECALS - SZ36

$

$

Not available

33

Dixon 539124354

PLASTIC DEFLECTOR 36

$78.99

$

Usually ships in 3-10 days

0

34

Dixon 539124535

BAFFLE WLDT

$133.99

$

Usually ships in 3-10 days

0

35

Dixon 539127394

PULLEY GUARD

$

$

Not available

36

Dixon 539127425

HUB ASM RH

Note: RT

$607.99

$

Usually ships in 3-10 days

0

37

Dixon 539127426

HUB ASM LH

Note: LT

$

$

Not available

38

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

39

Dixon 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

40

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

41

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

42

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

43

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

Note: STD FLT

$3.49

$

Usually ships in 3-10 days

0

44

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

Note: SAE FLT

$3.99

$

In Stock, Qty 20+

0

45

Dixon 539990517

WASHER 3/8 FLAT

Note: FLT STD

$3.99

$

Usually ships in 3-10 days

0

46

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

47

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

48

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

49

Dixon 539990598

WASHER 1/4 FLAT

Note: FLT

$

$

Not available

50

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

51

Dixon 539115511

1/2-20 UNF X 1 1/4 HHBLT

$4.99

$

Usually ships in 3-10 days

0

52

Dixon 539115636

WASHER .525 X 1.375 X .25

$9.99

$

In Stock, only 1 left!

0

53

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 4 left!

0

54

Dixon 539116079

SPACER HUB

$27.99

$

Usually ships in 3-10 days

0

55

Dixon 539119759

BEARING-ECC LOCK
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

56

Dixon 539120246

SHAFT

$60.99

$

Usually ships in 3-10 days

0

57

Dixon 539120769

PULLEY 5``B`

$

$

Not available

58

Dixon 539127302

SPACER

$8.99

$

Usually ships in 3-10 days

0

59

Dixon 539119006

IDLER PULLEY

Note: TALL

$

$

Not available

60

Dixon 539117707

DECAL, FUSION

$7.49

$

Usually ships in 3-10 days

0
