Speed ZTR 3016 CA (966504101) - Dixon 30" Speed ZTR Zero-Turn Mower (2010-01) MOWER DECK / CUTTING DECK Parts Diagram

30" SpeedZTR Zero-Turn Mower

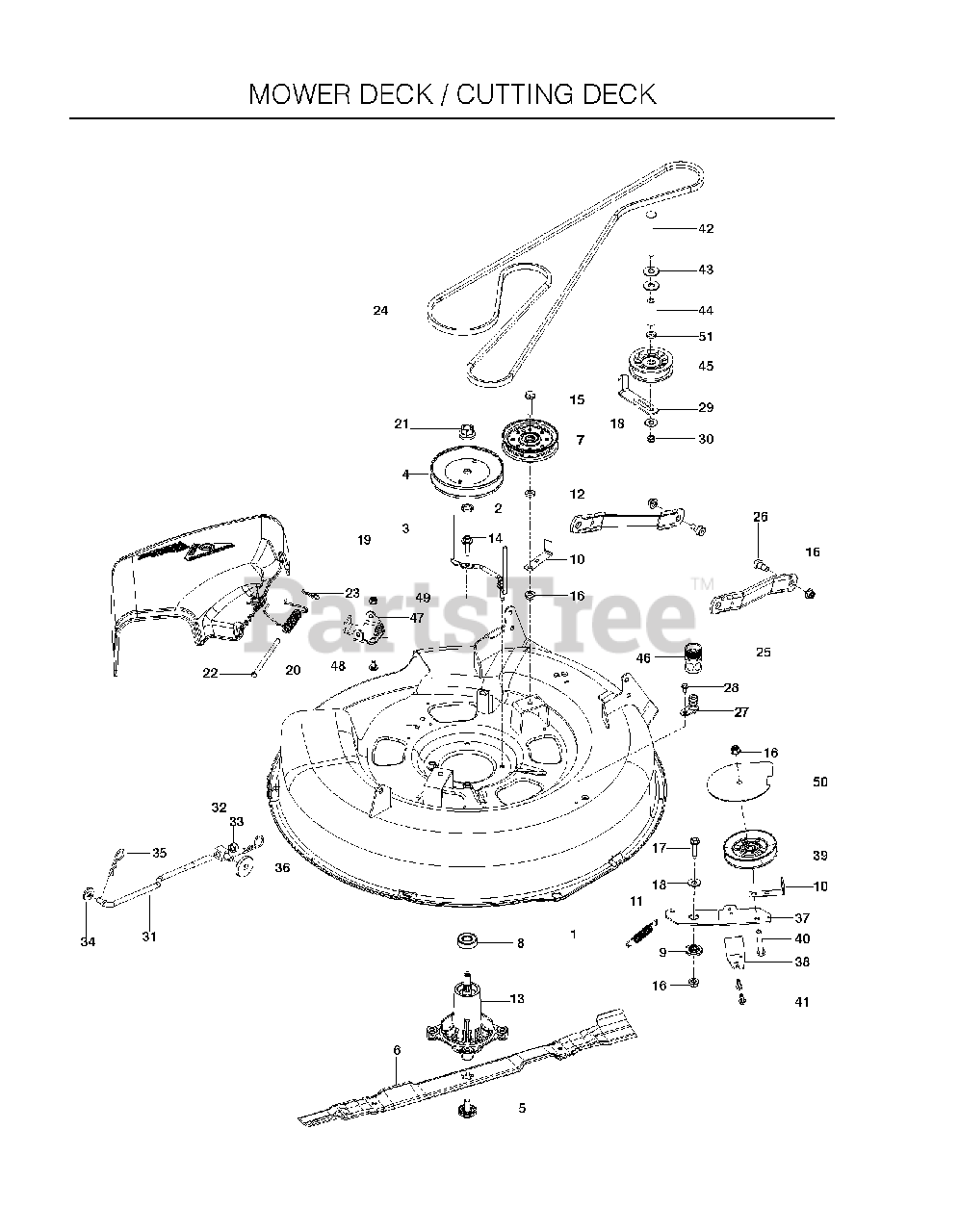

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 574453402

DECK.STMPD.W/DECALS.30".BLUE.D

$607.99

$

Usually ships in 3-10 days

0

2

Dixon 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

3

Dixon 532400140

KEEPER, MANDREL BELT

$53.99

$

In Stock, only 1 left!

0

4

Dixon 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

5

Dixon 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

6

Dixon 532419274

BLADE.MOWER.BAGGING.30"

$34.99

$

In Stock, only 1 left!

0

7

Dixon 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

8

Dixon 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

9

Dixon 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

10

Dixon 529311701

KEEPER, BELT, BLACK

$6.49

$

Usually ships in 3-10 days

0

11

Dixon 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

12

Dixon 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 16

0

13

Dixon 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$56.99

$

In Stock, Qty 11

0

14

Dixon 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

15

Dixon 539990701

BLT 3/8-16X1-3/4 WHIZLK ZN SP

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

17

Dixon 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$4.99

$

Usually ships in 3-10 days

0

18

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 532417344

SHIELD.DEFLECT.MWR.30S.BLACK

$53.99

$

In Stock, only 1 left!

0

20

Dixon 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

21

Dixon 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

22

Dixon 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

23

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 574173002

BELT, 100" EL

$66.99

$

Usually ships in 3-10 days

0

25

Dixon 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

26

Dixon 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

28

Dixon 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 5

0

29

Dixon 525851801

GUIDE, BELT

$13.99

$

In Stock, only 1 left!

0

30

Dixon 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

31

Dixon 532195740

LINK LIFT SUSP. FRONT MOWER
(Superseded to 581506902)

$11.99

$

In Stock, Qty 15

0

32

Dixon 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

33

Dixon 573975201

NUT, 7/16-20 HEX NYLOC ZC

$3.99

$

Usually ships in 3-10 days

0

34

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

35

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

36

Dixon 539106504

SPINDLE WASHER

$

$

Not available

37

Dixon 574172802

ARM, IDLER, BLK
(Superseded to 574172804)

$36.99

$

Usually ships in 3-10 days

0

38

Dixon 529311801

ARM, LH BRAKE
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

39

Dixon 532173902

Idler Pulley, 4.25
(Superseded to 532146763)

$

$

Not available

40

Dixon 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

41

Dixon 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

42

Dixon 525848601

RHSNB 3/8-16 X 4 GR5 ZD

$5.99

$

Usually ships in 3-10 days

0

43

Dixon 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

44

Dixon 525848801

SPACER .39 ID X 2.25

$8.99

$

Usually ships in 3-10 days

0

45

Dixon 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

46

Dixon 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

47

Dixon 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

48

Dixon 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

49

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

50

Dixon 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 16

0

51

Dixon 573970402

COVER, PULLEY, BLACK

$21.99

$

Usually ships in 3-10 days

0
