Speed ZTR 3016 CA (966504101) - Dixon 30" Speed ZTR Zero-Turn Mower (2010-01) IGNITION SYSTEM Parts Diagram

30" SpeedZTR Zero-Turn Mower

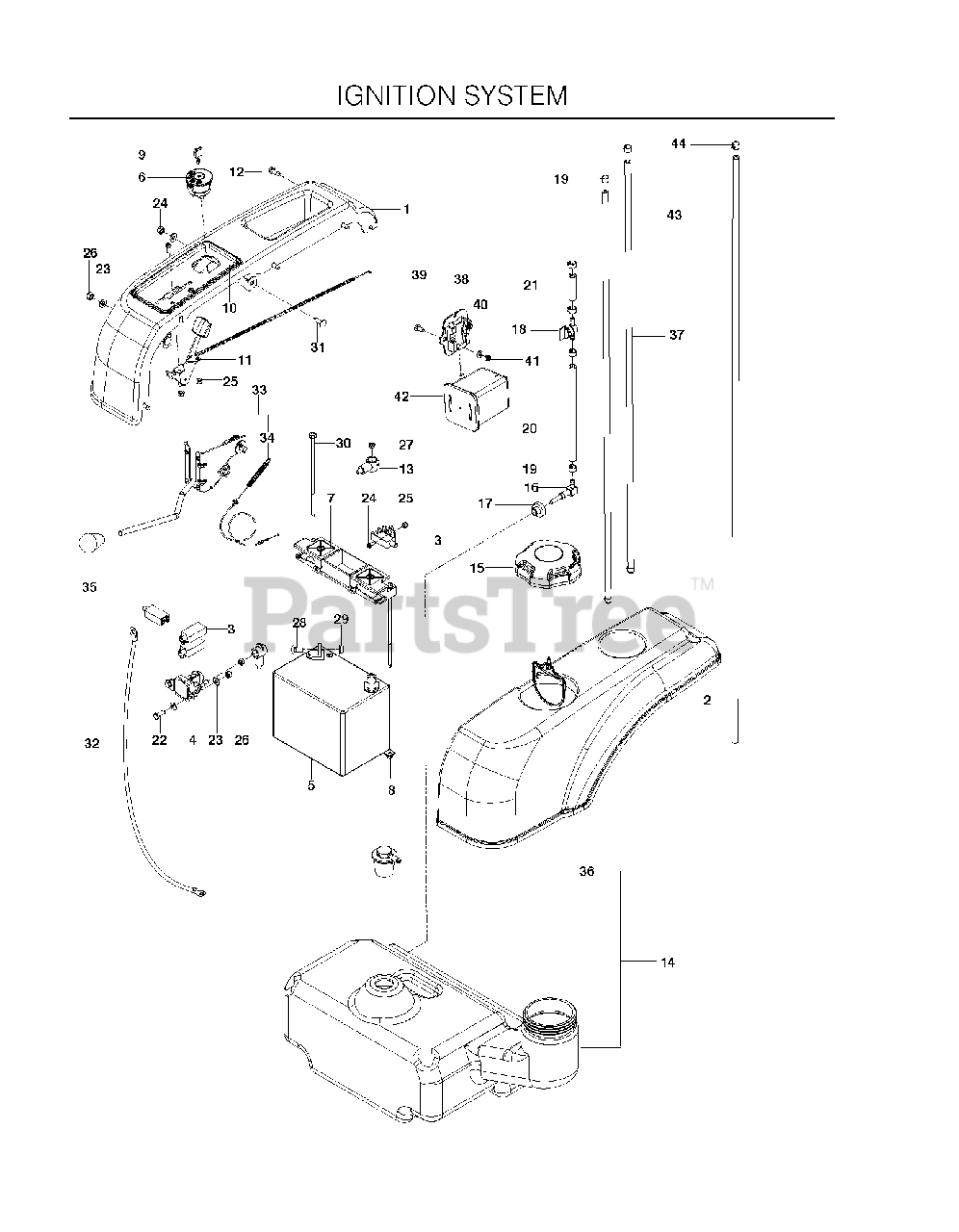

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon 539120193

FENDER RH

$39.99

$

Usually ships in 3-10 days

0

2

Dixon 539120192

FENDER LH

$39.99

$

Usually ships in 3-10 days

0

3

Dixon 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

4

Dixon 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

5

Dixon 539102436

BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

6

Dixon 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 8

0

7

Dixon 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

8

Dixon 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

9

Dixon 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 9

0

10

Dixon 525598601

MOUNT, CONTROLS, BLK

$54.99

$

Usually ships in 3-10 days

0

11

Dixon 539120222

THROTTLE CABLE

$

$

Not available

12

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

13

Dixon 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

14

575379401

$

$

Not available

15

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

16

Dixon 539124804

ELBOW W/FILTER

$

$

Not available

17

Dixon 539126217

TANK FITTING

$

$

Not available

18

Dixon 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

19

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

20

Dixon 539115736

HOSE 1/4 X 8

$6.99

$

Usually ships in 3-10 days

0

21

Dixon 539121486

HOSE 1/4 X 2"

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

24

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 18

0

25

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

26

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

27

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

28

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Dixon 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

31

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539110068

BATTERY CABLE, NEGATIVE

$9.49

$

Usually ships in 3-10 days

0

33

Dixon 575661501

ASM, CLUTCH ENGAGE W/CABLE

$53.99

$

Usually ships in 3-10 days

0

34

Dixon 532193235

CABLE.CLUTCH.38".SERVICE

$51.99

$

In Stock, only 2 left!

0

35

Dixon 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 7

0

36

Dixon 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

37

Dixon 539110424

FUEL LINE 24"
(Superseded to 539107765)

$7.99

$

In Stock, only 2 left!

0

38

Dixon 575242701

BRACKET, CANISTER

$10.99

$

Usually ships in 3-10 days

0

39

Dixon 539108392

HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.99

$

In Stock, only 3 left!

0

40

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

41

Dixon 539115617

5/16-18 THIN PROF NY

$

$

Not available

42

Dixon 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

43

Dixon 575437801

HOSE, FUEL 3/16" X 42"

$14.99

$

Usually ships in 3-10 days

0

44

Dixon 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

Dixon 539104974

POST.CABLE LONG

Note: NOT SHOWN

$

$

Not available

Dixon 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$10.99

$

In Stock, only 2 left!

0

Dixon 525744301

HARNESS, WIRING 30/38
(Superseded to 574658201)

Note: NOT SHOWN

$109.99

$

Usually ships in 3-10 days

0

Dixon 539110290

FOAM STRIP, FUEL TANK

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0
