Speed ZTR 3016 CA (966504101) - Dixon 30" Speed ZTR Zero-Turn Mower (2010-01) HYDRAULIC PUMP MOTOR Parts Diagram

30" SpeedZTR Zero-Turn Mower

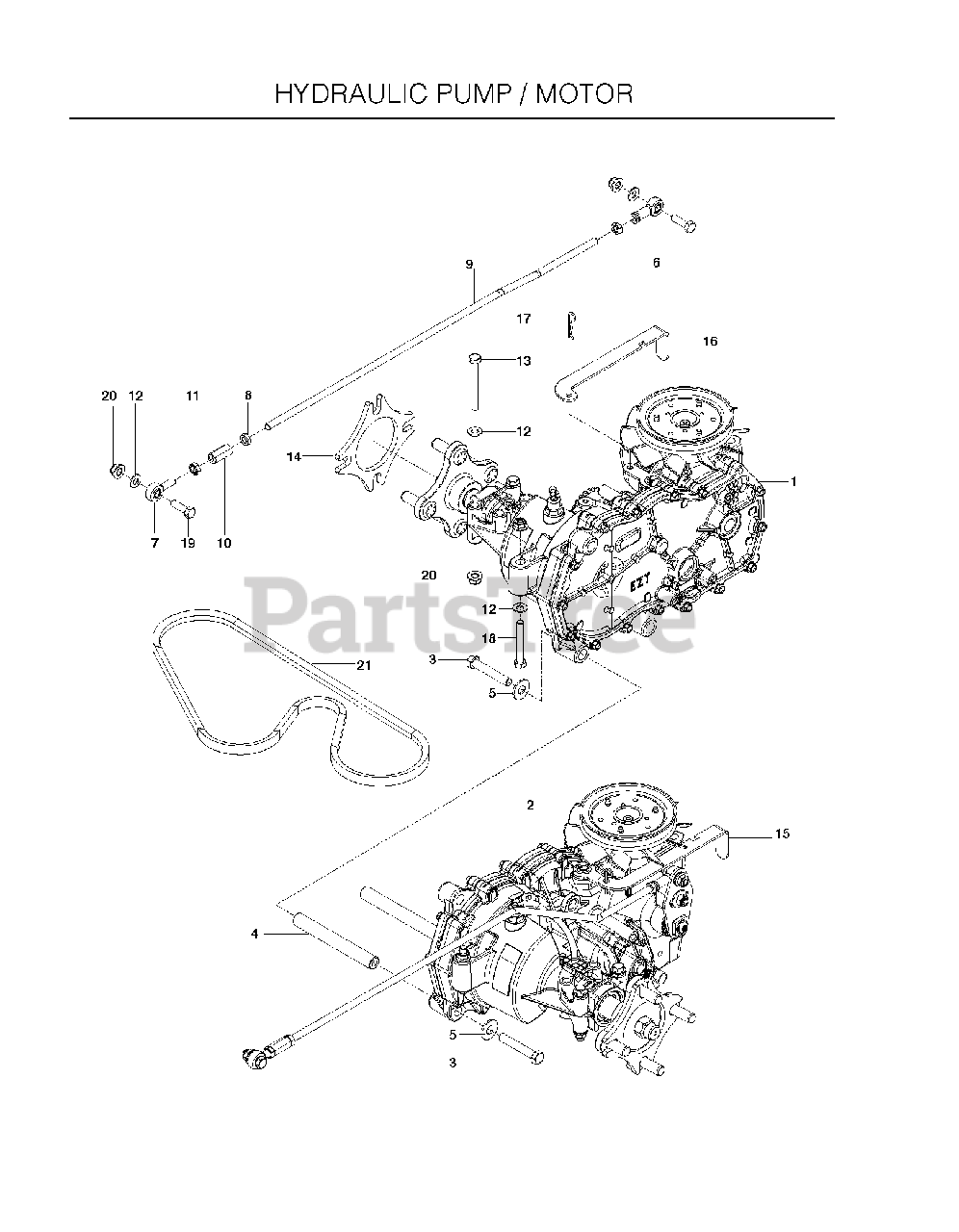

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Dixon 539120152

HG_HYDRO RH
(Superseded to 539120941)

Note: RT

$1942.99

$

Usually ships in 3-10 days

0

2

Dixon 539120153

HG_HYDRO LH

Note: LT

$1455.99

$

Usually ships in 3-10 days

0

3

Dixon 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 539120154

HYDRO SPACER

$40.99

$

Usually ships in 3-10 days

0

5

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539115729

RH ROD END
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

7

Dixon 539116690

ROD.END.LH
(Superseded to 588692502)

$10.99

$

Usually ships in 3-10 days

0

8

Dixon 539115502

NUT 5/16-24 UNF HEX JAM

$3.99

$

In Stock, Qty 5

0

9

Dixon 539120169

CONTROL ROD

$14.99

$

Usually ships in 3-10 days

0

10

Dixon 539116689

ROD END COUPLER

$

$

Not available

11

Dixon 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

13

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

14

Dixon 539114804

SPACER, WHEEL

$10.99

$

In Stock, only 1 left!

0

15

Dixon 539120156

RELEASE LEVER LH

$30.99

$

Usually ships in 3-10 days

0

16

Dixon 539120157

RELEASE LEVER RH

$14.99

$

Usually ships in 3-10 days

0

17

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

19

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

20

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

21

Dixon 539120806

BELT 30 ZEZT

$27.99

$

In Stock, only 1 left!

0
