Speed ZTR 3016 CA (966504101) - Dixon 30" Speed ZTR Zero-Turn Mower (2010-01) FRAME Parts Diagram

30" SpeedZTR Zero-Turn Mower

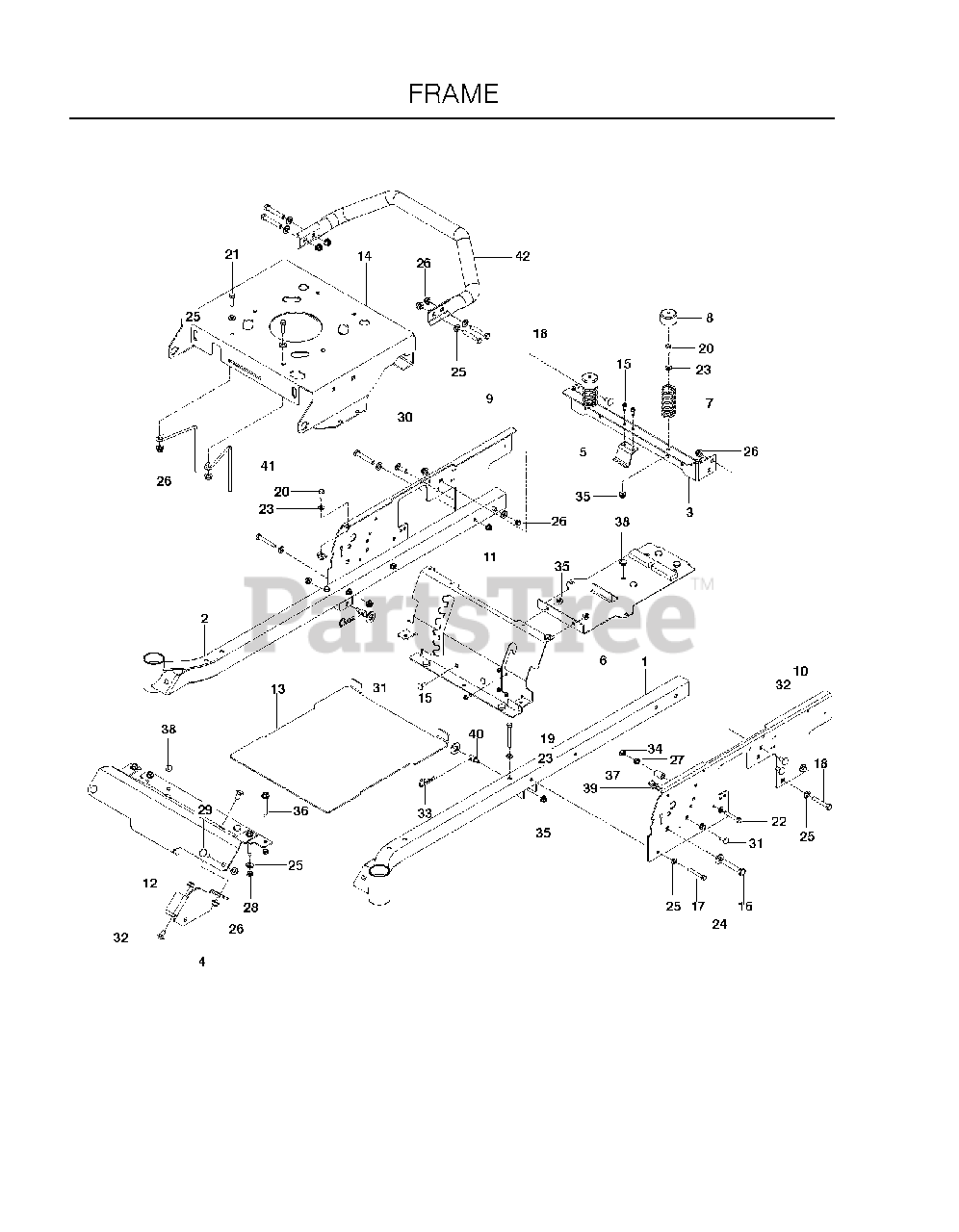

FRAME Parts Diagram

  • Title

1

Dixon 525454702

FRAME TUBE, LH, ORG

$182.99

$

Usually ships in 3-10 days

0

2

Dixon 525454902

FRAME TUBE, RH, ORG

$182.99

$

Usually ships in 3-10 days

0

3

Dixon 525464602

SUPPORT, REAR SEAT, ORG

$

$

Not available

4

Dixon 525605502

BRACKET, FRONT DECK, BLK

$46.99

$

Usually ships in 3-10 days

0

5

Dixon 525864502

HOLDING DEVICE, FUEL TANK, BLK

$12.99

$

Usually ships in 3-10 days

0

6

Dixon 525798402

SUPPORT, TANK/BATT, BLK

$60.99

$

Usually ships in 3-10 days

0

7

Dixon 539122632

SEAT SPRING

$9.49

$

In Stock, only 2 left!

0

8

Dixon 539119884

SPRING CAP

$

$

Not available

9

Dixon 575328302

PLATE, LH SIDE, ORG

$

$

Not available

10

Dixon 575328402

PLATE, RH SIDE, ORG

$

$

Not available

11

Dixon 575852102

PANEL, SEAT SUPP. ORG

$

$

Not available

12

Dixon 525835902

FOOT, REST 30/38, ORG

$97.99

$

Usually ships in 3-10 days

0

13

Dixon 525455102

FOOT PLATE NARROW ORG
(Superseded to 576452401)

$

$

Not available

14

Dixon 525462603

PLATE ENGINE ORG
(Superseded to 525462606)

$

$

Not available

15

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

16

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

17

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

18

Dixon 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

20

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

21

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

22

Dixon 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

24

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

25

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

27

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

29

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

30

Dixon 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

32

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

33

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

34

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

35

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

36

Dixon 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 539119087

BUSHING

$9.99

$

Usually ships in 3-10 days

0

38

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

39

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

40

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

41

Dixon 574172901

BELT GUIDE

$

$

Not available

42

Dixon 525865902

IMPACT BAR, ORG

$

$

Not available
