Speed ZTR 30 - Dixon 30" Speed ZTR Zero-Turn Mower (2005) CHASSIS Parts Diagram

30" SpeedZTR Zero-Turn Mower

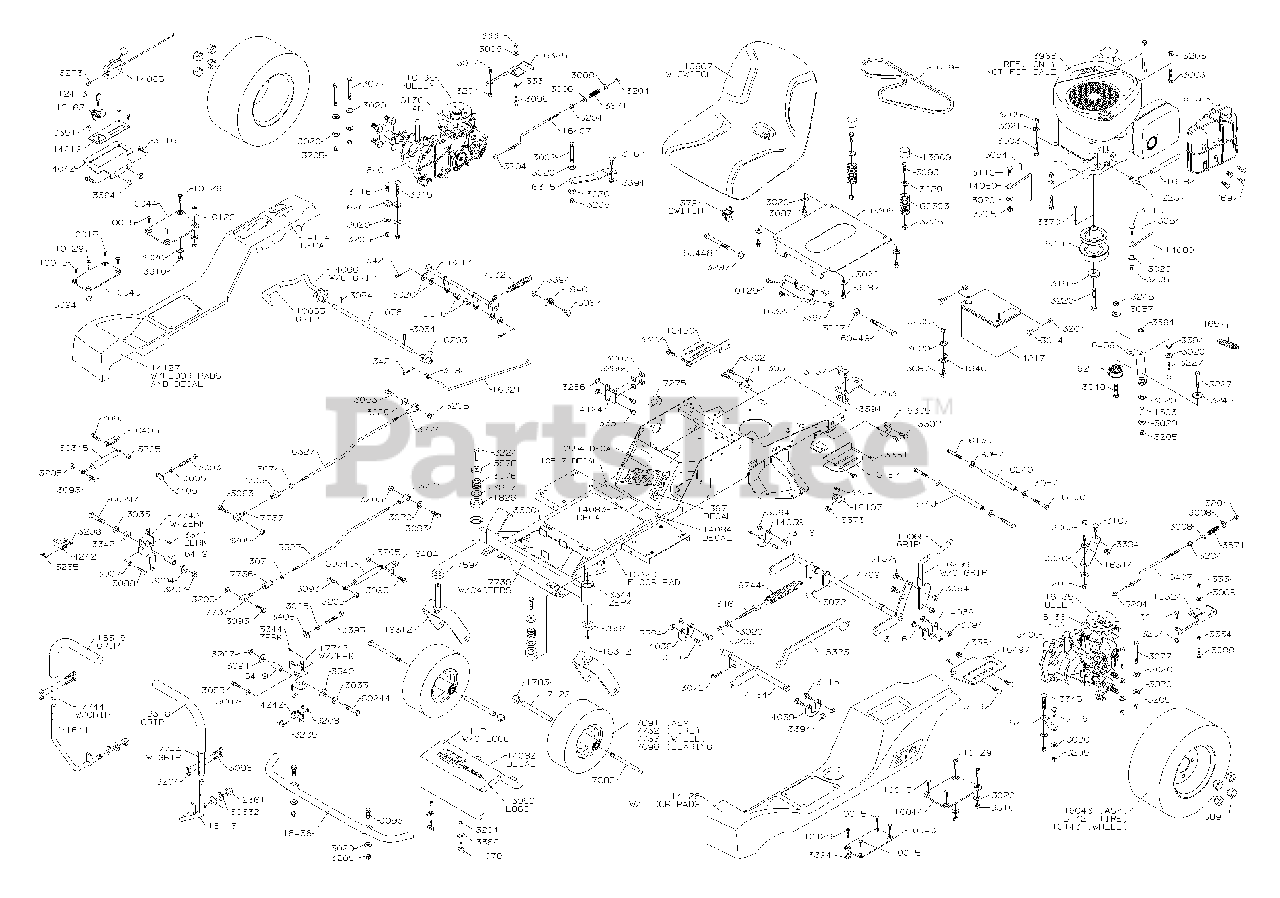

CHASSIS Parts Diagram

  • Title

1603

1603

BUSHING

$

$

Not available

1657

1657

SPRING

$

$

Not available

1940

1940

SPRING ANCHOR

$

$

Not available

2361

2361

5/8-11 HEX NUT W/NYLOCK

$

$

Not available

3002

3002

5/16-18X2-1/2HHB GR8

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3086

3086

1/4-20X1-1/4 HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3302

3302

5/16-18X1/2 WHTF SCR

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3345

3345

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3370

3370

1/4" SQ KEY X 2.5

$

$

Not available

3373

3373

R/B 3373 #6-32UNCX1/2`RD HEAD

$

$

Not available

3374

3374

6-32 HE NUT W/NY

$

$

Not available

3393

3393

5/16-18X2-1/2 HHB GD5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3671

3671

SPRING-.390ID X 1.56

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5516

5516

SWIVEL

$

$

Not available

16414

16414

LEVER RH (PLATED)

$

$

Not available

6744

6744

SPRING

$

$

Not available

7032

7032

SPRING - 3.50

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7736

7736

ROD END COUPLER

$

$

Not available

7737

7737

ROD END LH

$

$

Not available

7753

7753

HITCH

$

$

Not available

10015

10015

1/4`NYLON TREE RIVET

$

$

Not available

10043

10043

FRONT FOOT PAD 3000

$

$

Not available

10044

10044

REAR FLOOR PAD 3000

$

$

Not available

10065

10065

GRIP

$

$

Not available

10129

10129

5/16-18X1 FLANGED SCREW

$

$

Not available

10143

10143

REAR WHEEL

$

$

Not available

10547

10547

DECAL

$

$

Not available

10554

10554

DECAL, FLAG

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

13794

13794

SEAT SWITCH

$

$

Not available

13807

13807

SEAT 30`

$

$

Not available

13966

13966

$

$

Not available

13969

13969

$

$

Not available

13971

13971

DECAL, SPDZTR 30"

$

$

Not available

13989

13989

DECAL, DIXON

$

$

Not available

14019

14019

CONTROL PANEL

$

$

Not available

14039

14039

DECK HANGER

$

$

Not available

14042

14042

CONTROL PANEL MOUNT

$

$

Not available

14066

14066

BRAKE SHAFT END RH MACH.

$

$

Not available

14076

14076

SEAT FRAME PIN PLATED

$

$

Not available

14078

14078

1/4 X 20 X 1 WING BOLT

$

$

Not available

14080

14080

BELT GUIDE

$

$

Not available

14082

14082

DECAL, CAUTION

$

$

Not available

14083

14083

DECAL, DRIVE LEVERS

$

$

Not available

14084

14084

DECAL, BLADE DRIVE

$

$

Not available

14085

14085

THROTTLE CABLE

$

$

Not available

14114

14114

DECAL, PARK BRAKE

$

$

Not available

14121

14121

BAT. COVER W/DECALS

$

$

Not available

14126

14126

LH FENDER ASM.

$

$

Not available

14127

14127

RH FENDER ASM

$

$

Not available

14184

14184

LIFT SHFT WLDT-FRONT

$

$

Not available

14789

14789

LIFT SHAFT WLDT 30 REAR

$

$

Not available

16043

16043

REAR WHEEL AND TIRE

$

$

Not available

16107

16107

SWITCH

$

$

Not available

16130

16130

3/8-16X2-1/2 HHB GR8

$

$

Not available

16135

16135

$

$

Not available

16136

16136

HYDRO FAN

$

$

Not available

16142

16142

R/B 16043 TIRE/REAR

$

$

Not available

16151

16151

MUFFLER GUARD

$

$

Not available

16182

16182

OIL DRAIN HOSE

$

$

Not available

16187

16187

PULLEY GUARD

$

$

Not available

16198

16198

BELT 30 ZEZT

$

$

Not available

16203

16203

BRAKE TAB WLDT. MACH

$

$

Not available

16205

16205

FRONT SUPPORT 30

$

$

Not available

16211

16211

PULLEY IDLER

$

$

Not available

16213

16213

BRAKE SHAFT WLDT.

$

$

Not available

16240

16240

TIE BAR

$

$

Not available

16299

16299

HANDLE DECK LIFT

$

$

Not available

16305

16305

BRAKE HORSESHOE

$

$

Not available

16309

16309

SEAT PLATE

$

$

Not available

16312

16312

CASTER SPDZTR

$

$

Not available

16314

16314

FRAME SUPPORT LH

$

$

Not available

16315

16315

FRAME SUPPORT RH

$

$

Not available

16320

16320

FLOOR PAD

$

$

Not available

16321

16321

BRAKEOVER ROD

$

$

Not available

16322

16322

SEAT PLATE HINGE

$

$

Not available

16323

16323

TIE BAR

$

$

Not available

16324

16324

HYDRO RELEASE LH

$

$

Not available

16325

16325

HYDRO RELEASE RH

$

$

Not available

16326

16326

PULLEY

$

$

Not available

16327

16327

LEVER ROD

$

$

Not available

16348

16348

GRIP

$

$

Not available

16400

16400

EZT W/NEUTRAL (30)

$

$

Not available

16401

16401

EZT W/NEUTRAL (30)

$

$

Not available

16404

16404

SHOCK MT. LH

$

$

Not available

16405

16405

SHOCK MT. RH

$

$

Not available

16407

16407

BRAKE ROD

$

$

Not available

16413

16413

LEVER LH (PLATED)

$

$

Not available

16419

16419

BUSHING

$

$

Not available

16456

16456

BUMPER WLDT. SPD 30`

$

$

Not available

16458

16458

IDLER WLDT.

$

$

Not available

16460

16460

SIDE FRAME/GUARD

$

$

Not available

16461

16461

EYE BOLT 4.5`

$

$

Not available

16497

16497

DECK LIFT QUAD

$

$

Not available

17085

17085

RHSNB 1/2-13 X 6.50 GR5 ZD

$

$

Not available

17098

17098

BEARING

$

$

Not available

17122

17122

TUBE

$

$

Not available

17691

17691

CASTER WHEEL & TIRE

$

$

Not available

17697

17697

10-16 X 3/4 HWH TAP SCR

$

$

Not available

17732

17732

TIRE

$

$

Not available

17733

17733

WHEEL

$

$

Not available

17738

17738

$

$

Not available

17742

17742

LH LOW CONT W/ZERK

$

$

Not available

17743

17743

RH LOW CONT W/ZERK

$

$

Not available

17744

17744

CONT LEVER W/GRIP

$

$

Not available

17834

17834

NUT, HEX 1/2-13 W/NYLOK

$

$

Not available

60244

60244

CAPSCREW 1/2-13X2-3/4

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60332

60332

WASH 5/8 BEVELED DISC SPRING

$

$

Not available

60345

60345

DAMPNER DUAL ACITON #326

$

$

Not available

60448

60448

CAPSCREW 1/2-13X4-1/2`

$

$

Not available
