Speed ZTR 30 BF (966676101) - Dixon 30" Speed ZTR Zero-Turn Mower (2013-08) ENGINE PLATE Parts Diagram

30" SpeedZTR Zero-Turn Mower

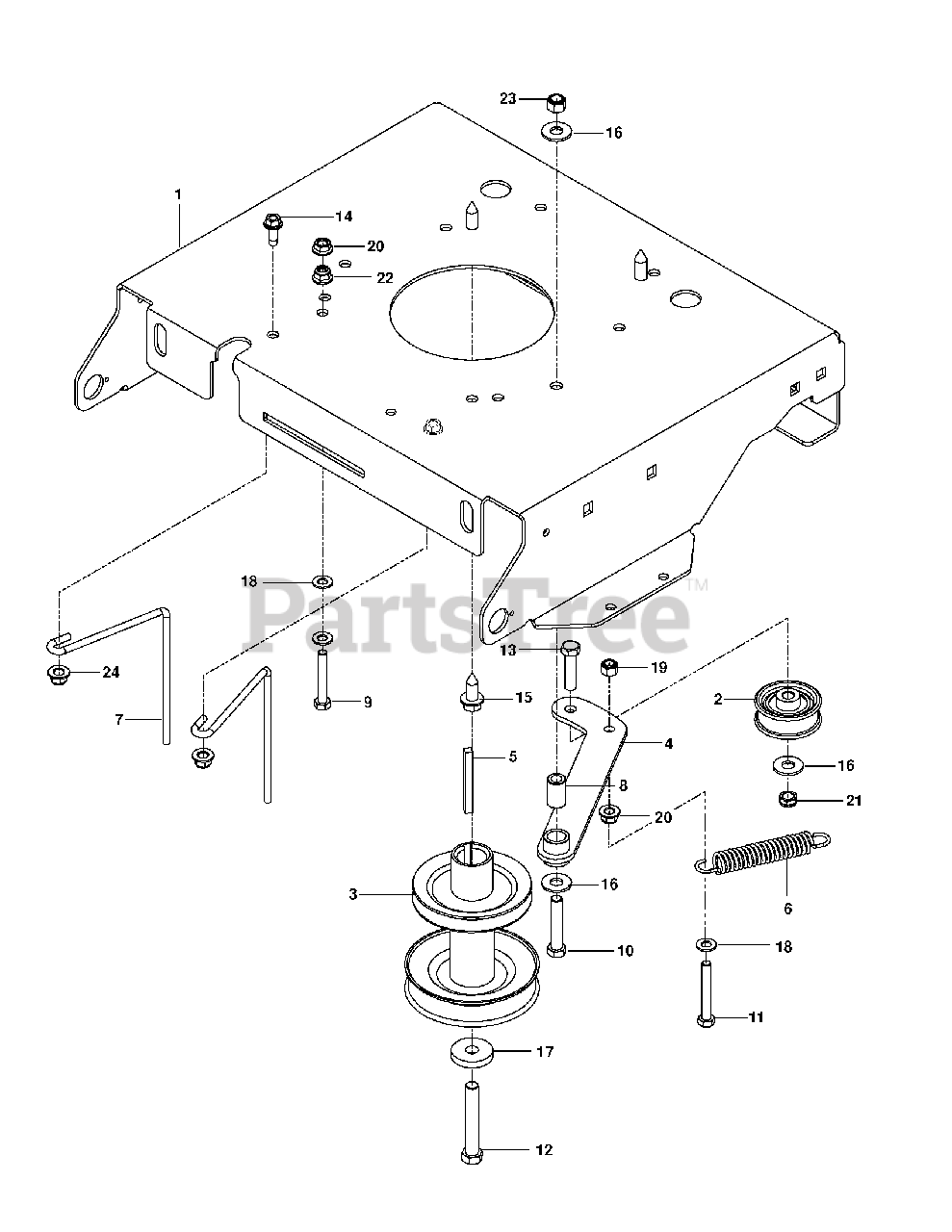

ENGINE PLATE Parts Diagram

  • Title
1

Dixon 525462604

OBSOLETE - PLATE, ENGINE, BLUE
(Superseded to 525462607)

$157.99

$

Usually ships in 3-10 days

0

2

Dixon 539120812

PULLEY IDLER

$26.99

$

Usually ships in 3-10 days

0

3

Dixon 574872801

PULLEY, ENGINE 30"
(Superseded to 588586501)

$56.99

$

Usually ships in 3-10 days

0

4

Dixon 539120990

IDLER WLDT.

$

$

Not available

5

Dixon 539917033

KEY 1/4 SQ X 2-1/2

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539116350

SPRING - 3.50

$9.49

$

In Stock, only 1 left!

0

7

Dixon 574172901

BELT GUIDE

$

$

Not available

8

Dixon 539115270

BUSHING

$7.49

$

In Stock, only 1 left!

0

9

Dixon 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

10

Dixon 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

11

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

12

Dixon 539110065

HCS 7/16-20 X 2-3/4

$4.99

$

Usually ships in 3-10 days

0

13

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

14

Dixon 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

15

Dixon 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 19

0

16

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539115546

WASHER .43X1.38X.25

$4.99

$

In Stock, only 3 left!

0

18

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

19

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

22

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

23

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available
