Speed ZTR 30 BF (966676101-02) - Dixon 30" Speed ZTR Zero-Turn Mower (2013-05) SEAT Parts Diagram

30" SpeedZTR Zero-Turn Mower

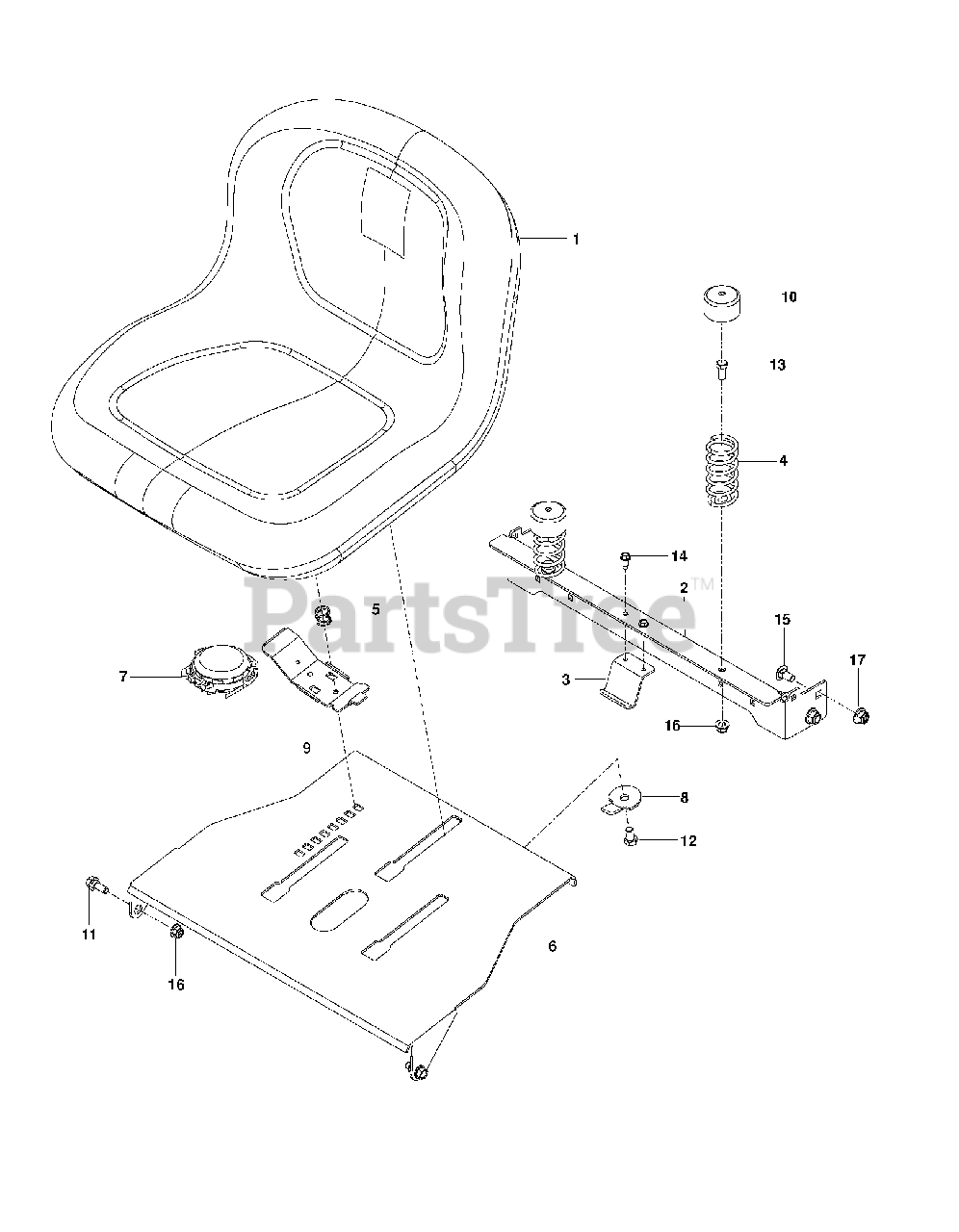

SEAT Parts Diagram

  • Title

1

Dixon 532406625

SEAT.TG150.BLK.NLOGO.

$265.99

$

Usually ships in 3-10 days

0

2

Dixon 574356403

SEAT SUPPORT, REAR, BLUE

$

$

Not available

3

Dixon 525864502

HOLDING DEVICE, FUEL TANK, BLK

$12.99

$

Usually ships in 3-10 days

0

4

Dixon 539122632

SEAT SPRING

$9.49

$

In Stock, only 2 left!

0

5

Dixon 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

6

Dixon 525580003

PLATE, SEAT, BLUE

$121.99

$

Usually ships in 3-10 days

0

7

Dixon 539132140

SWITCH, SEAT N/C

$14.99

$

In Stock, only 2 left!

0

8

Dixon 574191002

STOP, SEAT, BLACK

$15.99

$

Usually ships in 3-10 days

0

9

Dixon 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

10

Dixon 539119884

SPRING CAP

$

$

Not available

11

Dixon 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

12

Dixon 539108503

HCS 3/8-16 X 5/8 GR 5 ZD

$4.99

$

Usually ships in 3-10 days

0

13

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

15

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

17

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available
