Speed ZTR 30 (968999702) - Dixon 30" Speed ZTR Zero-Turn Mower (2008) HYDRAULIC PUMP - MOTOR Parts Diagram

30" SpeedZTR Zero-Turn Mower

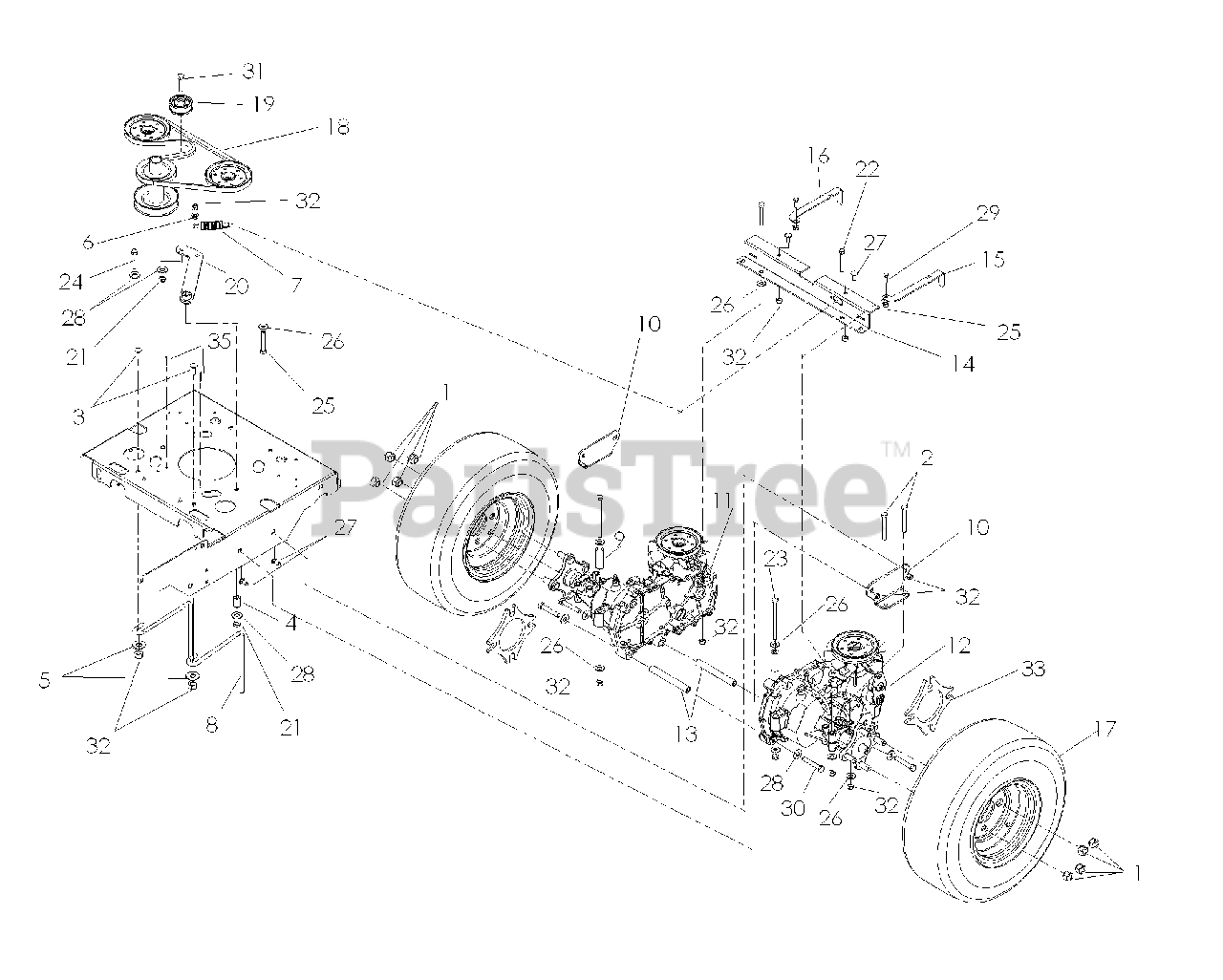

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

1

Dixon 539101173

LUG NUT 1/2F

$

$

Not available

2

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

3

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

4

Dixon 539115270

BUSHING

$7.49

$

In Stock, only 1 left!

0

5

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

6

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

7

Dixon 539116350

SPRING - 3.50

$9.49

$

In Stock, only 1 left!

0

8

Dixon 539119975

BELT GUIDE

$

$

Not available

9

Dixon 539120150

SPACER HYDRO MT.

$

$

Not available

10

Dixon 539120151

HYDRO MT. PLATE

$

$

Not available

11

Dixon 539120152

HG_HYDRO RH
(Superseded to 539120941)

Note: RH

$1942.99

$

Usually ships in 3-10 days

0

12

Dixon 539120153

HG_HYDRO LH

Note: LH

$1455.99

$

Usually ships in 3-10 days

0

13

Dixon 539120154

HYDRO SPACER

$40.99

$

Usually ships in 3-10 days

0

14

Dixon 539120155

REAR HYDRO MT.

$

$

Not available

15

Dixon 539120156

RELEASE LEVER LH

Note: LH

$30.99

$

Usually ships in 3-10 days

0

16

Dixon 539120157

RELEASE LEVER RH

Note: RH

$14.99

$

Usually ships in 3-10 days

0

17

Dixon 539120187

REAR WHEEL AND TIRE
(Superseded to 581199001)

$

$

Not available

18

Dixon 539120806

BELT 30 ZEZT

$27.99

$

In Stock, only 1 left!

0

19

Dixon 539120812

PULLEY IDLER

$26.99

$

Usually ships in 3-10 days

0

20

Dixon 539120990

IDLER WLDT.

$

$

Not available

21

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

22

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

23

Dixon 539976940

CAPSCREW 5/16 X 4-1/2 HED HEAD

$

$

Not available

24

Dixon 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

30

Dixon 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

32

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

33

Dixon 539114804

SPACER, WHEEL

$10.99

$

In Stock, only 1 left!

0
