Speed ZTR 30 (968999545) - Dixon 30" Speed ZTR Zero-Turn Mower (2007) SEAT ASSEMBLY Parts Diagram

30" SpeedZTR Zero-Turn Mower

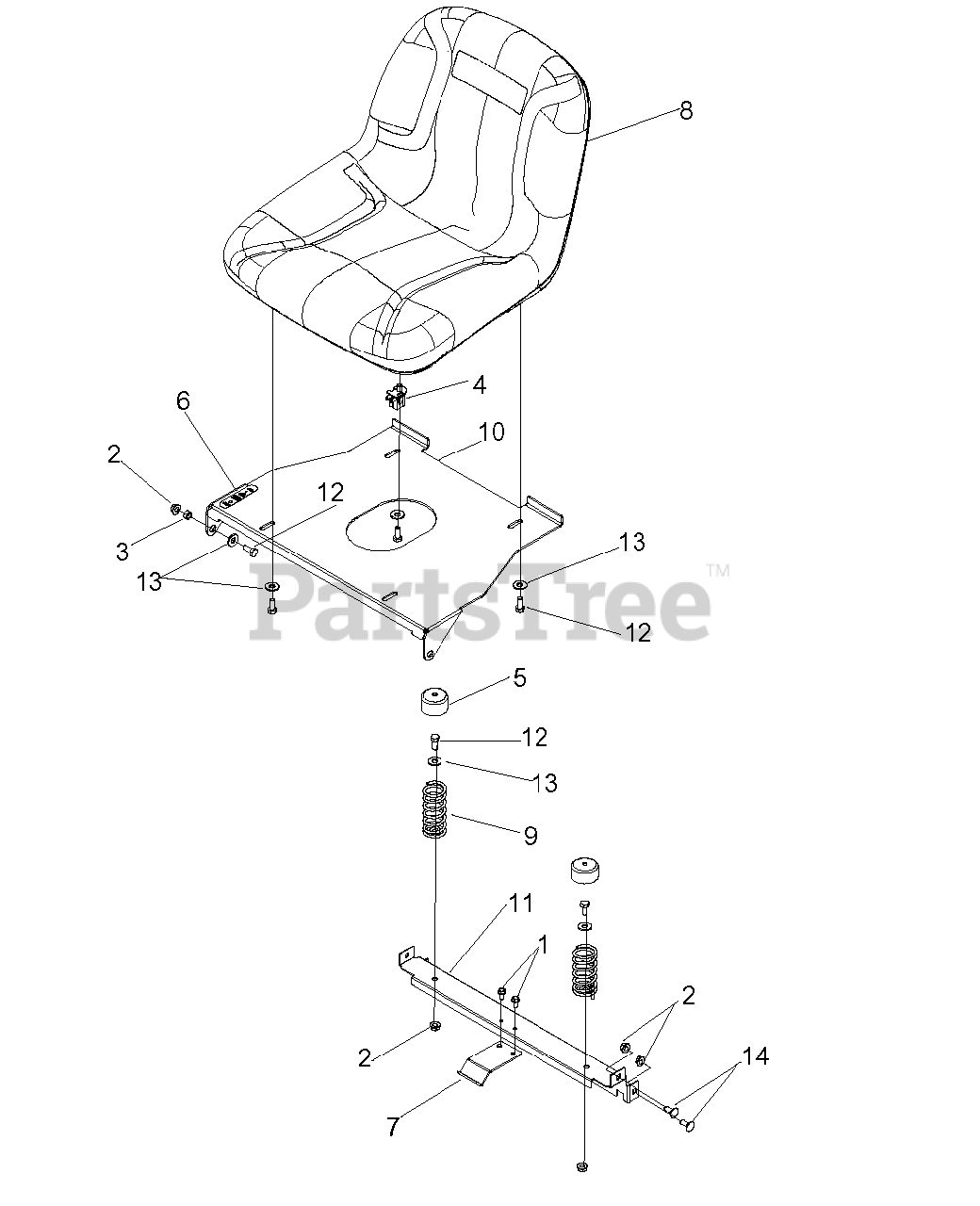

SEAT ASSEMBLY Parts Diagram

  • Title

1

Dixon 539115640

1/4-20 X 1/2 HWH FORM SCR H

$0.99

$

Usually ships in 3-10 days

0

2

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539116091

SPACER

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 539119741

SEAT SWITCH
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

5

Dixon 539119884

SPRING CAP

$

$

Not available

6

Dixon 539120006

DECAL, PARK BRAKE

$9.99

$

In Stock, only 1 left!

0

7

Dixon 539120181

HOLD DOWN

$12.99

$

Usually ships in 3-10 days

0

8

Dixon 539120529

TEXAS MID BACK SEAT

$157.99

$

Usually ships in 3-10 days

0

9

Dixon 539122632

SEAT SPRING

$9.49

$

In Stock, only 2 left!

0

10

Dixon 539123519

SEAT PLATE (BLUE)

$

$

Not available

11

Dixon 539123526

CROSS MEMBER (BLUE)

$23.99

$

Usually ships in 3-10 days

0

12

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

14

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0
