Speed ZTR 30 (968999545) - Dixon 30" Speed ZTR Zero-Turn Mower (2007) MOTION ASSEMBLY Parts Diagram

30" SpeedZTR Zero-Turn Mower

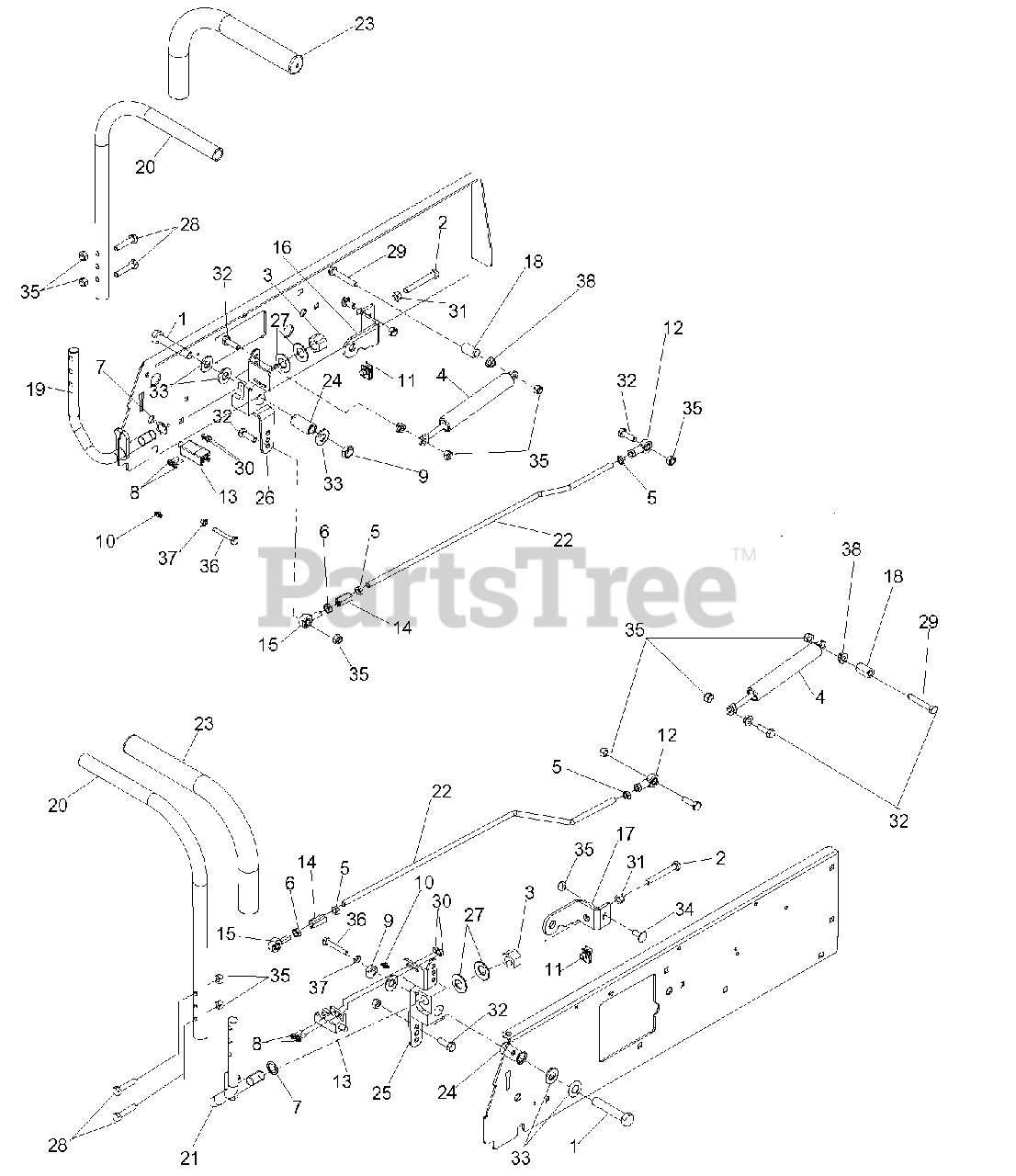

MOTION ASSEMBLY Parts Diagram

  • Title

1

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

2

Dixon 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

3

Dixon 539110340

NUT 5/8-11 NYLOC

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 539114453

DAMPENER, DUAL ACTION

$74.99

$

Usually ships in 3-10 days

0

5

Dixon 539115502

NUT 5/16-24 UNF HEX JAM

$3.99

$

In Stock, Qty 5

0

6

Dixon 539115534

5/16 24UNF NUT LH TH
(Superseded to 539991073)

$3.99

$

Usually ships in 3-10 days

0

7

Dixon 539115570

WASHER-.626IDX.056TK

$3.99

$

Usually ships in 3-10 days

0

8

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

9

Dixon 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$4.99

$

In Stock, only 3 left!

0

10

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

11

Dixon 539115677

CLIP NUT 5/16-18

$1.49

$

Usually ships in 3-10 days

0

12

Dixon 539115729

RH ROD END
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

13

Dixon 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

14

Dixon 539116689

ROD END COUPLER

$

$

Not available

15

Dixon 539116690

ROD.END.LH
(Superseded to 588692502)

$10.99

$

Usually ships in 3-10 days

0

16

Dixon 539117949

FORWARD STOP RH

$34.99

$

Usually ships in 3-10 days

0

17

Dixon 539117950

FORWARD STOP LH

$34.99

$

Usually ships in 3-10 days

0

18

Dixon 539119087

BUSHING

$9.99

$

Usually ships in 3-10 days

0

19

Dixon 539120159

LEVER.PLATED.RH

$102.99

$

Usually ships in 3-10 days

0

20

Dixon 539120160

LEVER UPPER

$109.99

$

In Stock, only 1 left!

0

21

Dixon 539120162

LEVER PLATED LH

$34.99

$

Usually ships in 3-10 days

0

22

Dixon 539120169

CONTROL ROD

$14.99

$

Usually ships in 3-10 days

0

23

Dixon 539120899

GRIP

$13.99

$

In Stock, only 1 left!

0

24

Dixon 539120956

BUSHING

$

$

Not available

25

Dixon 539120983

PIVOT LH (PLATED)

$

$

Not available

26

Dixon 539120984

PIVOT RH (PLATED)

$78.99

$

Usually ships in 3-10 days

0

27

Dixon 539911121

WASH 5/8 BEVELED DISC SPRING

$4.99

$

Usually ships in 3-10 days

0

28

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

29

Dixon 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

30

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

31

Dixon 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

32

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

33

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

34

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

35

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

36

Dixon 539991003

BOLT 1/4C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0

38

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0
