Speed ZTR 30 (968999545) - Dixon 30" Speed ZTR Zero-Turn Mower (2007) CASTER ARM ASSEMBLY Parts Diagram

30" SpeedZTR Zero-Turn Mower

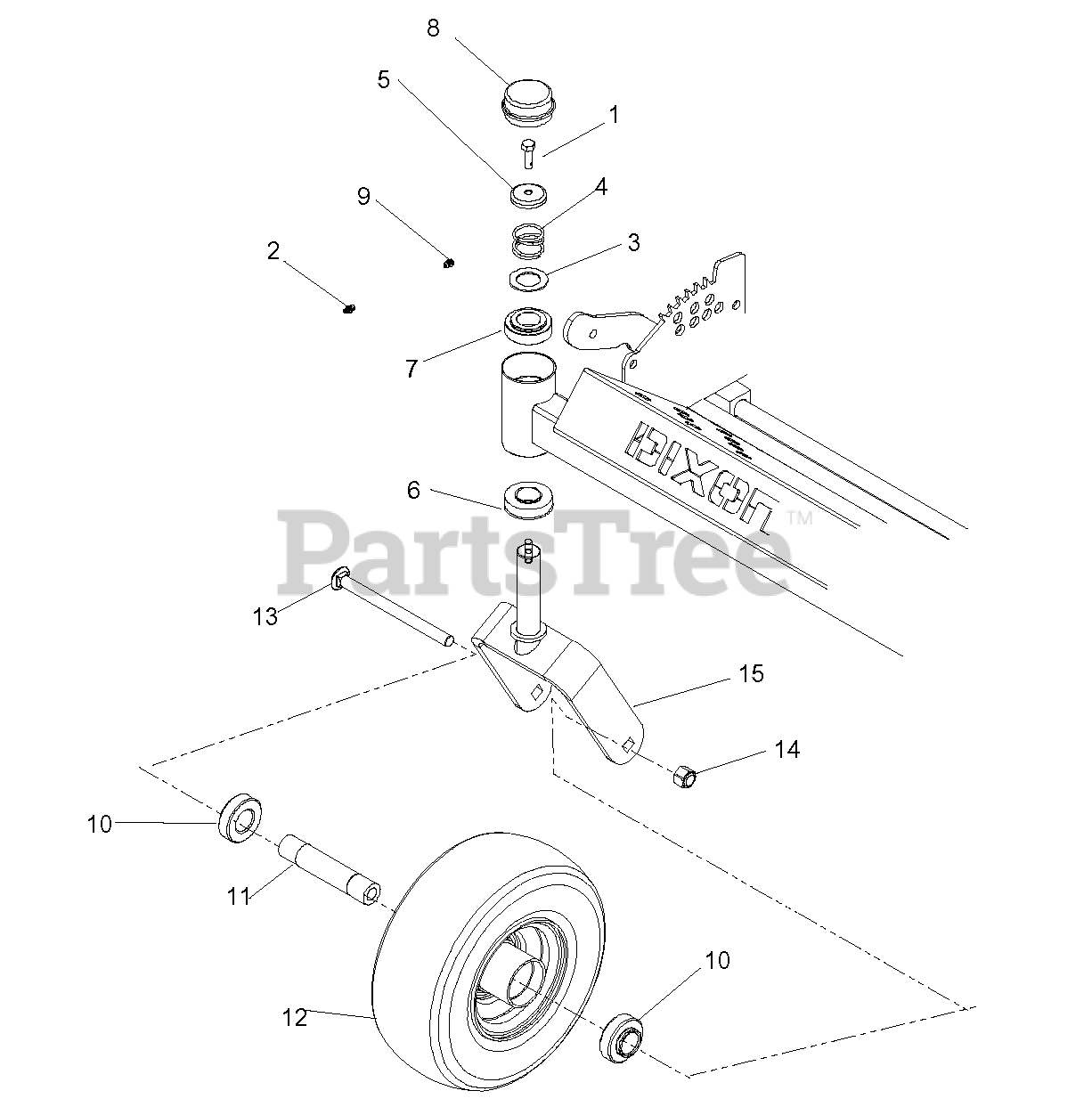

CASTER ARM ASSEMBLY Parts Diagram

  • Title

1

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

2

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

3

Dixon 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

4

Dixon 539115747

SPRING, CASTER

$

$

Not available

5

Dixon 539115749

CASTER.PLUG

$

$

Not available

6

Dixon 539115750

BEARING
(Superseded to 539112660)

$34.99

$

Usually ships in 3-10 days

0

7

Dixon 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

8

Dixon 539118771

DUST CAP
(Superseded to 539102535)

$3.49

$

Usually ships in 3-10 days

0

9

Dixon 539118928

GREASE ZERK-1/4"

$3.99

$

Usually ships in 3-10 days

0

10

Dixon 539119759

BEARING-ECC LOCK
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

11

Dixon 539120124

SPACER

$18.99

$

Usually ships in 3-10 days

0

12

Dixon 539120125

CASTER WHEEL AND TIRE

$

$

Not available

13

Dixon 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$24.99

$

In Stock, only 2 left!

0

14

Dixon 539121591

NUT, HEX 1/2-13 W/NYLOK

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539123593

CASTER DK BLUE

$103.99

$

Usually ships in 3-10 days

0
