SPE 151KW (84913) - Snapper Walk-Behind Mower, 15hp TRANSMISSION DRIVE GROUP Parts Diagram

Walk-Behind Mower, 15hp

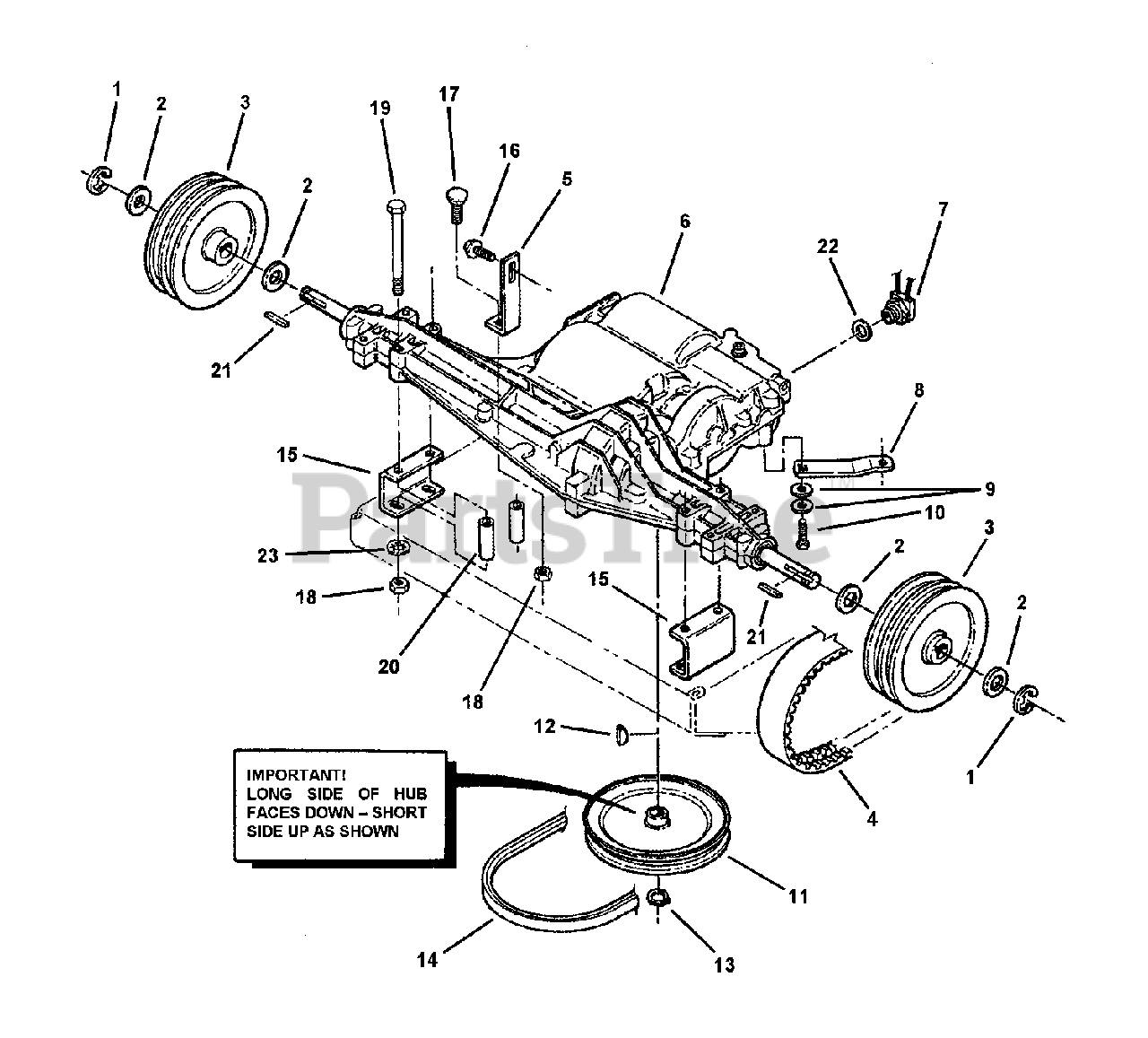

TRANSMISSION DRIVE GROUP Parts Diagram

  • Title

1

Snapper 7012705

RING, 3/4" External Retaining

Note: Truarc p/n 5133-75

$

$

Not available

2

Snapper 7010935

WASHER, 3/4 x 1-1/8" x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7041908

PULLEY, Trans Output, 5.5" Dia., 2RA
(Superseded to 7041908YP)

$

$

Not available

4

Snapper 7046240

BELT, Traction, 2RAX Sect. Eff. Length 53.4
(Superseded to 7046240YP)

Note: Dayco p/n 41-0664; Neoprene Compound Polyester Cord

$112.99

$

In Stock, only 2 left!

0

5

Snapper 7041863

TORQUE BRACKET
(Superseded to 7041863YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 7041862

TRANSMISSION, Peerless, 5-Speed
(Superseded to 7041862YP)

$615.99

$

Usually ships in 2-12 days

0

7

Snapper 7029682

SWITCH, Transmission (NO)

$

$

Not available

8

Snapper 7041885

SHIFT ARM, Express
(Superseded to 7041885YP)

$48.99

$

Usually ships in 2-12 days

0

9

Snapper 7090746

WASHER 1/4" Bellville
(Superseded to 7090746YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7091165

BOLT, 1/4-28 x 5/8" Hex w/Nyloc Patch, GR 8
(Superseded to 7091165YP)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 7045191

PULLEY, Transmission Input
(Superseded to 7045191YP)

$43.99

$

Usually ships in 2-12 days

0

12

Snapper 7010211

KEY, #9 Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

13

Snapper 7012763

RING, External Retaining
(Superseded to 7012763SM)

Note: Truarc p/n 5100-62

$4.49

$

In Stock, Qty 6

0

14

Snapper 7029118

V-BELT, HA, Effective Length 41.650
(Superseded to 7029118YP)

Note: Dayco p/n 2-1142

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 7041859

SUPPORT, Transmission

$

$

Currently unavailable

16

Snapper 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

17

Snapper 7091714

BOLT, 5/16-18 x 1" Square Neck Carriage, GR 5
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

18

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7076940

SCREW, 5/16-18 x 4-1/2" Hex Head Cap, GR 5
(Superseded to 7076940YP)

$5.99

$

In Stock, only 2 left!

0

20

Snapper 7041868

SPACER, Transmission

$

$

Not available

21

Snapper 7010061

KEY, 3/16" Square x 1"
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7029662

WASHER, Fiber
(Superseded to 7029662YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0
