SPE 131KW (7084939) - Snapper Walk-Behind Mower, 13hp BRAKE ASSEMBLY Parts Diagram

Walk-Behind Mower, 13hp

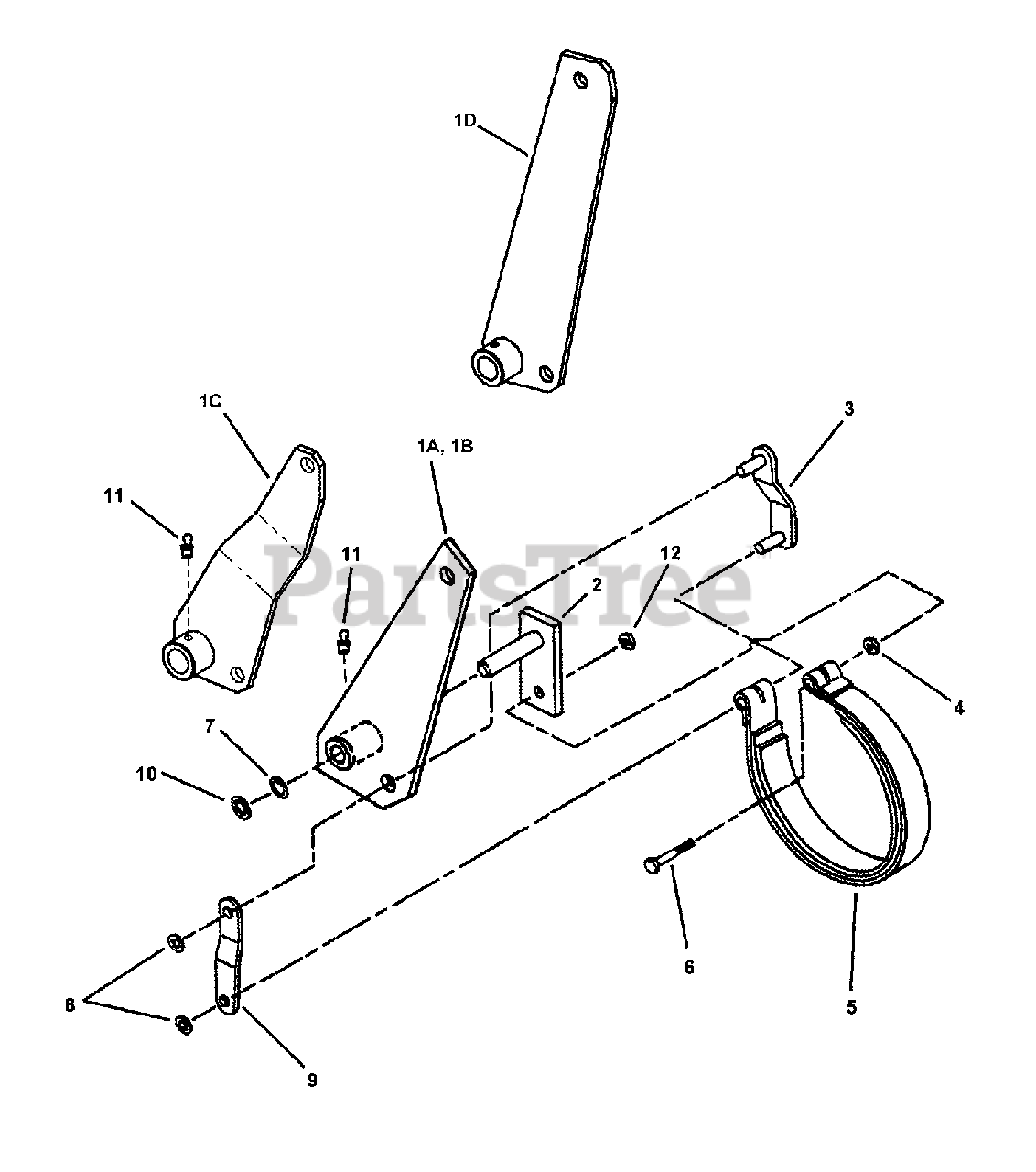

BRAKE ASSEMBLY Parts Diagram

  • Title

1A

Snapper Pro 7044741

WELDMENT, Brake Arm, RH

$

$

Not available

1B

Snapper Pro 7400034

WELDMENT, Brake Arm, RH
(Superseded to 7400034YP)

Note: used on SPE151KW

$72.99

$

Usually ships in 2-12 days

0

1C

Snapper Pro 7044742

WELDMENT, Brake Arm, LH
(Superseded to 7044742YP)

$63.99

$

Usually ships in 2-12 days

0

1D

Snapper Pro 7400035

WELDMENT, Brake Arm, LH
(Superseded to 7400035YP)

Note: used on SPE151KW

$72.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7058933

WELDMENT, Brake Mount Stud
(Superseded to 7058933YP)

$28.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7040622

WELDMENT, Brake Link

$45.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7091302

NUT, 3/8-16 Hex, GR 5 or B
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7074810

ASSEMBLY, Brake Band, 6" Thomas
(Superseded to 7074810YP)

$64.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

7

Snapper Pro 7091043

BUSHING, 5/8" I.D. x 1" O.D. Machine

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 7013946

RETAINER, 3/8" Bolt
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7032903

LINK, Brake

$11.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7091040

RETAINER, 5/8" Bolt
(Superseded to 7091040YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 7013864

LUBE FITTING, 3/16 Press-In
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

12

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0
