SPA 610 (7080911) - Snapper 61" Pro Mower Deck Assembly 48", 52" & 61" MOWER DECK ASSY (Adj. Height) Pt.1 Parts Diagram

61" Pro Mower Deck Assembly

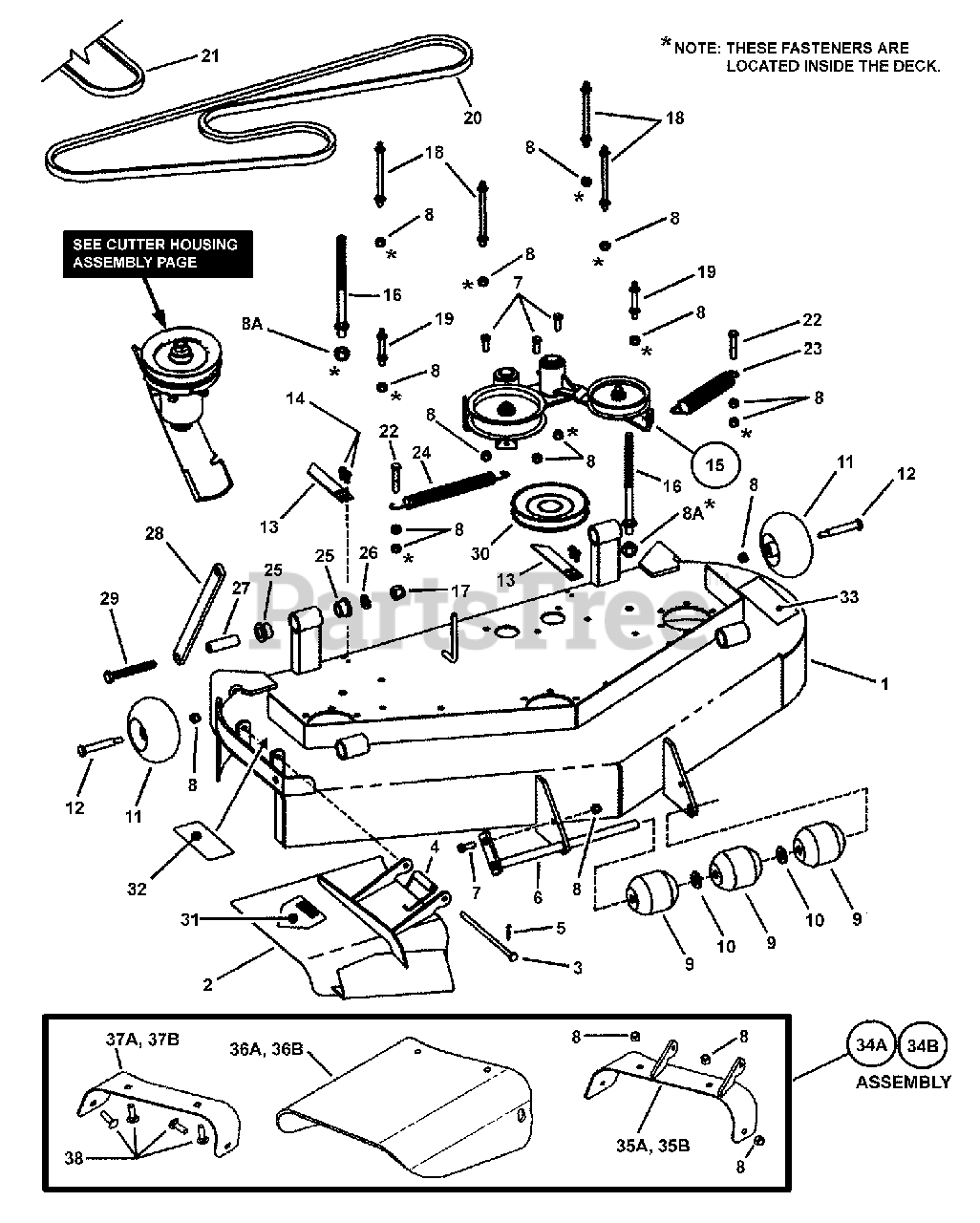

48", 52" & 61" MOWER DECK ASSY (Adj. Height) Pt.1 Parts Diagram

  • Title

1

Snapper Pro 7063205

WELDMENT, 48" Deck
(Superseded to 7063205YP)

Note: replaces 7054036 (voided)

$1823.99

$

Usually ships in 2-12 days

0

1

Snapper Pro 7045133

WELDMENT, 52" Deck

$1994.99

$

Usually ships in 2-12 days

0

1

Snapper Pro 7045165

WELDMENT, 61" Deck
(Superseded to 7045165YP)

$2564.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7058873

DEFLECTOR, 48" Deck ANSI Compliant (Weldment)

$

$

Not available

2

Snapper Pro 7058285

DEFLECTOR, 52" Deck Euro (Weldment)
(Superseded to 7044806YP)

$311.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7058291

DEFLECTOR, 61" Deck Euro (Weldment)
(Superseded to 7058291YP)

$427.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7029277

HINGE PIN, Chute
(Superseded to 7029277YP)

$40.99

$

In Stock, only 2 left!

0

4

Snapper Pro 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

5

Snapper Pro 7091313

COTTER PIN, 3/32 x 1"

$

$

Not available

6

Snapper Pro 7027327

PIVOT, Roller Pin (Weldment)
(Superseded to 7027327YP)

$82.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

8

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

8A

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

9

Snapper Pro 7079226

ROLLER, Low Density Polyethylene
(Superseded to 7073142YP)

$16.99

$

In Stock, Qty 7

0

10

Snapper Pro 7027344

WASHER, 5/8" Flat
(Superseded to 7027344SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7029264

WHEEL, Gage
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

12

Snapper Pro 7029265

BOLT, 1/2" Dia. Shoulder, 3/8-16 Thread
(Superseded to 7029265SM)

$10.99

$

In Stock, Qty 5

0

13

Snapper Pro 7034965

POINTER, Height-of-Cut
(Superseded to 7034965YP)

$7.49

$

In Stock, only 1 left!

0

14

Snapper Pro 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap

$

$

Not available

15

Snapper Pro 7054023

ASSEMBLY, Idler - 3 Spindle Deck

Note: 48" & 61" Decks

$

$

Not available

15

Snapper Pro 7054420

ASSEMBLY, Idler - 3 Spindle Deck

Note: 52" Deck

$

$

Currently unavailable

16

Snapper Pro 7029259

STUD, Lift, 1/2-13 Thread, Both Ends
(Superseded to 5600284YP)

$58.99

$

In Stock, only 2 left!

0

17

Snapper Pro 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

18

Snapper Pro 7029281

STANDOFF, 4-1/2" Long (5/16-18 thread top; 3/8-16 bottom)
(Superseded to 7029281YP)

$29.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7029280

STANDOFF, 2" Long (5/16-18 thread top ; 3/8-16 bottom)
(Superseded to 7029280YP)

$9.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 7029261

* V-BELT, Secondary, 48" Deck (113" Nom. Eff. Length)
(Superseded to 7029261YP)

$75.99

$

In Stock, only 1 left!

0

20

Snapper Pro 7029266

* V-BELT, Secondary, 52" Deck (120" Nom. Eff. Length)
(Superseded to 7029266YP)

$92.99

$

In Stock, Qty 7

0

20

Snapper Pro 7029268

* V-BELT, Secondary, 61" Deck (128" Nom. Eff. Length)
(Superseded to 7029268YP)

$92.99

$

In Stock, only 1 left!

0

21

Snapper Pro 7029262

* V-BELT, Primary, 48" Deck (66" Nom. Eff. Length)
(Superseded to 7029262YP)

$48.99

$

In Stock, Qty 9

0

21

Snapper Pro 7042813

* V-BELT, Primary, 52" Deck (69" Nom. Eff. Length)
(Superseded to 7042813YP)

$

$

Not available

21

Snapper Pro 7042735

* V-BELT, Primary, 61" Deck (72" Nom. Eff. Length)
(Superseded to 7042735YP)

$45.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

23

Snapper Pro 7029278

SPRING, Idler
(Superseded to 7029278YP)

$14.99

$

In Stock, Qty 7

0

24

Snapper Pro 7072915

SPRING, Extension, Primary Idler
(Superseded to 7072915YP)

Note: 48" Deck

$19.99

$

In Stock, only 4 left!

0

24

Snapper Pro 7029272

SPRING, Extension, Primary Idler
(Superseded to 7029272SM)

Note: 52" & 61" Deck

$14.99

$

In Stock, only 1 left!

0

25

Snapper Pro 7029258

BUSHING, Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 7091587

WASHER, 1/2" Flat

$

$

Not available

27

Snapper Pro 7029263

SLEEVE, Suspension
(Superseded to 7029263YP)

Note: all models

$24.99

$

In Stock, Qty 12

0

28

Snapper Pro 7034964

ARM, Suspension, 12" Long
(Superseded to 7034964YP)

Note: 48" & 52" Decks

$

$

Not available

28

Snapper Pro 7034979

ARM, Suspension, 13-1/2" Long
(Superseded to 7034979YP)

Note: 61" Deck

$42.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head, GR 5
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 7029249

PULLEY, 5-3/4" O.D. w/Hub
(Superseded to 7029249YP)

Note: 48" & 52" Decks

$76.99

$

In Stock, only 1 left!

0

30

Snapper Pro 7029250

PULLEY, 6-5/8" Driven
(Superseded to 7029250YP)

Note: 61" Deck

$98.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 7013010

DECAL, Warning (CPSC Cut Finger)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

32

Snapper Pro 7073647

DECAL, Danger Guard/Catcher
(Superseded to 7073647YP)

$7.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 7024156

DECAL, Caution- Operator Instruction
(Superseded to 7073647YP)

$7.99

$

Usually ships in 2-12 days

0

Snapper Pro 7054011

ASSEMBLY, Spindle
(Superseded to 7054011YP)

Note: see Cutter Housing Assembly page

$

$

Not available

34A

Snapper Pro 7050513

ASSEMBLY, 48" Discharge Chute

$

$

Currently unavailable

34B

Snapper Pro 7500231

ASSEMBLY, 52" Discharge Chute

$

$

Currently unavailable

35A

Snapper Pro 7050590

WELDMENT, 48" Deflector Top
(Superseded to 7050590YP)

$192.99

$

Usually ships in 2-12 days

0

35B

Snapper Pro 7400008

WELDMENT, 52" Deflector Top
(Superseded to 7400008YP)

$84.99

$

Usually ships in 2-12 days

0

36A

Snapper Pro 7100621

CHUTE, Rubber (48")
(Superseded to 7100621YP)

$146.99

$

Usually ships in 2-12 days

0

36B

Snapper Pro 7100623

CHUTE, Rubber (52")
(Superseded to 7100623YP)

Note: replaces 7100087

$190.99

$

Usually ships in 2-12 days

0

37A

Snapper Pro 7078133

DEFLECTOR, Bottom (48")
(Superseded to 7078133YP)

$84.99

$

Usually ships in 2-12 days

0

37B

Snapper Pro 7300036

DEFLECTOR, Bottom (52")
(Superseded to 7300036YP)

$66.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 7091790

BOLT, 3/8-16 x 1-1/4" Square Neck Carriage, GR 5
(Superseded to 703130)

Note: used on 48" & 52" Decks only

$3.99

$

In Stock, Qty 13

0
