SPA 480 (7084406) - Snapper 48" Pro Mower Deck Assembly CUTTER HOUSING ASSEMBLY Parts Diagram

48" Pro Mower Deck Assembly

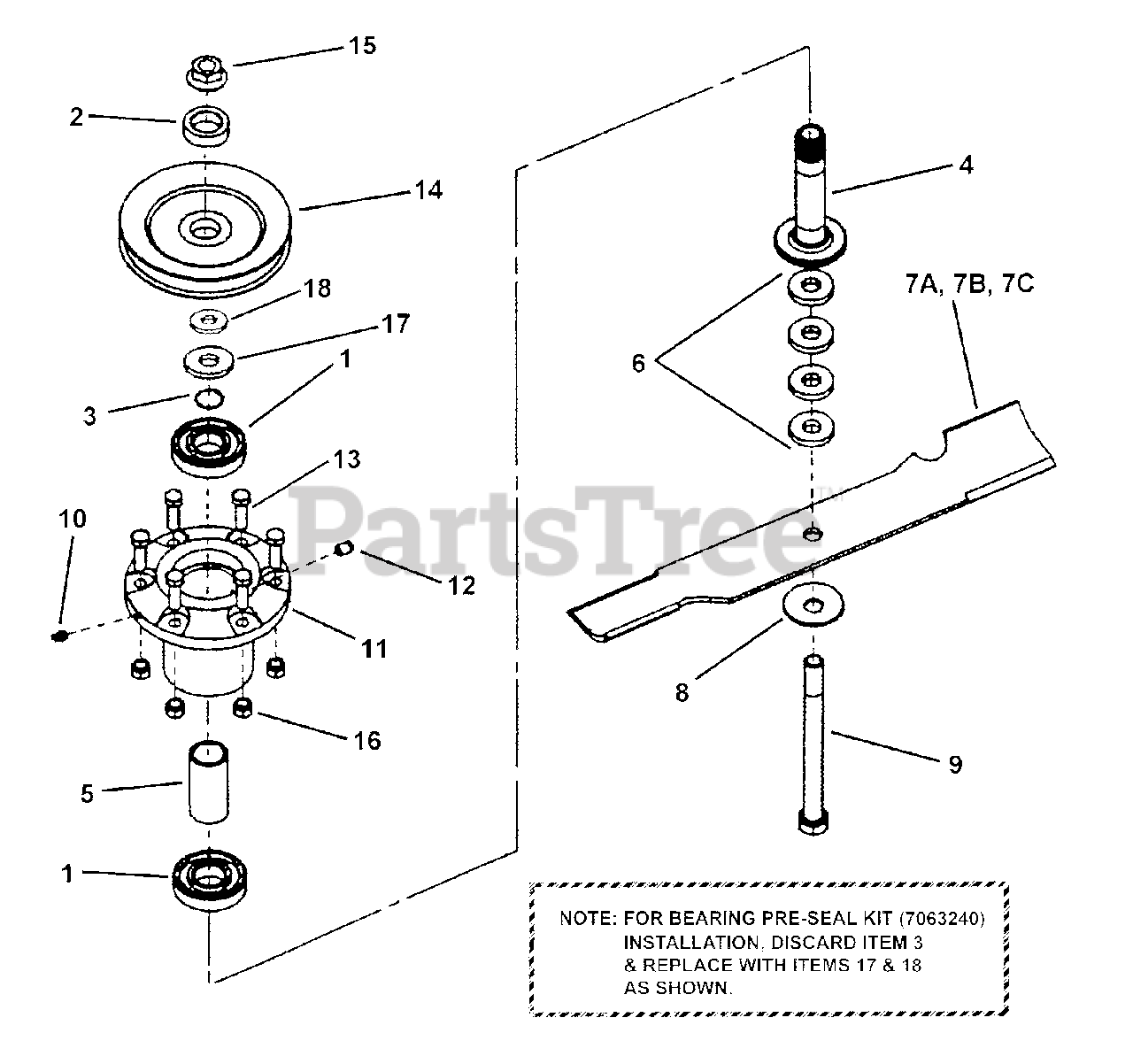

CUTTER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7029422

BEARING, Sealed
(Superseded to 7029422YP)

$

$

Not available

2

Snapper Pro 7029270

WASHER, Spindle
(Superseded to 7029270YP)

$25.99

$

In Stock, only 2 left!

0

3

Snapper Pro 7029274

SNAP-RING, Spindle Shaft
(Superseded to 7029274YP)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 7059311

ASSEMBLY, Spindle Shaft
(Superseded to 7059311YP)

$

$

Not available

5

Snapper Pro 7029254

SPACER, Bearing
(Superseded to 7029254YP)

$20.99

$

In Stock, Qty 5

0

6

Snapper Pro 7029271

SPACER, Blade
(Superseded to 7029271YP)

$13.99

$

In Stock, only 1 left!

0

7A

Snapper Pro 7073395

BLADE, Commercial, 18" Low Lift
(Superseded to 7073395YP)

Note: for 36" (2 blades) or 52" decks (3 blades)

$28.99

$

In Stock, Qty 7

0

7B

Snapper Pro 7073396

BLADE, 21" Low Lift
(Superseded to 7075770YP)

Note: for 61" decks; (or use 7075770, high lift blade)

$28.99

$

In Stock, only 3 left!

0

7C

Snapper Pro 7075771

BLADE, 16-1/2"
(Superseded to 7075771BZYP)

Note: for 48" deck

$27.99

$

In Stock, Qty 17

0

8

Snapper Pro 7016440

WASHER, Beveled
(Superseded to 7016440SM)

$7.99

$

In Stock, Qty 20+

0

9

Snapper Pro 7029256

BOLT, 5/8-18 x 7-1/2" Hex Head Cap, GR 5

$

$

Not available

10

Snapper Pro 7029275

LUBE FITTING, 1/4-28 Straight (Thread Forming)
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

11

Snapper Pro 7029252

* HOUSING, Cutter
(Superseded to 7058237YP)

$

$

Not available

12

Snapper Pro 7029384

GREASE VENT, Spindle
(Superseded to 7029384YP)

$13.99

$

In Stock, only 3 left!

0

13

Snapper Pro 7029302

BOLT, 3/8-16 x 1-1/4" Rib Necked
(Superseded to 7029302YP)

$4.49

$

In Stock, Qty 8

0

14

Snapper Pro 7029245

PULLEY, 5-3/4" O.D.
(Superseded to 7029245YP)

Note: for 48", 52" & 61" decks

$59.99

$

In Stock, only 2 left!

0

14

Snapper Pro 7029249

PULLEY, 5-3/4" O.D. w/Hub
(Superseded to 7029249YP)

Note: for 36" deck

$76.99

$

In Stock, only 1 left!

0

15

Snapper Pro 7091736

NUT, 5/8-18 Hex Flange Lock, GR 5
(Superseded to 7063237YP)

$4.49

$

In Stock, Qty 20+

0

16

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

17

Snapper Pro 7063238

** SEAL, Nylos
(Superseded to 7063238YP)

$56.99

$

In Stock, Qty 8

0

18

Snapper Pro 7013370

** WASHER
(Superseded to 7013370YP)

$

$

Not available
