SP 90 (1696852-00) (12DVC3B7707) - Snapper 21" Walk-Behind Mower, RWD Variable, 775 Series Briggs Handles Group Parts Diagram

21" Walk-Behind Mower, RWD Variable, 775 Series Briggs

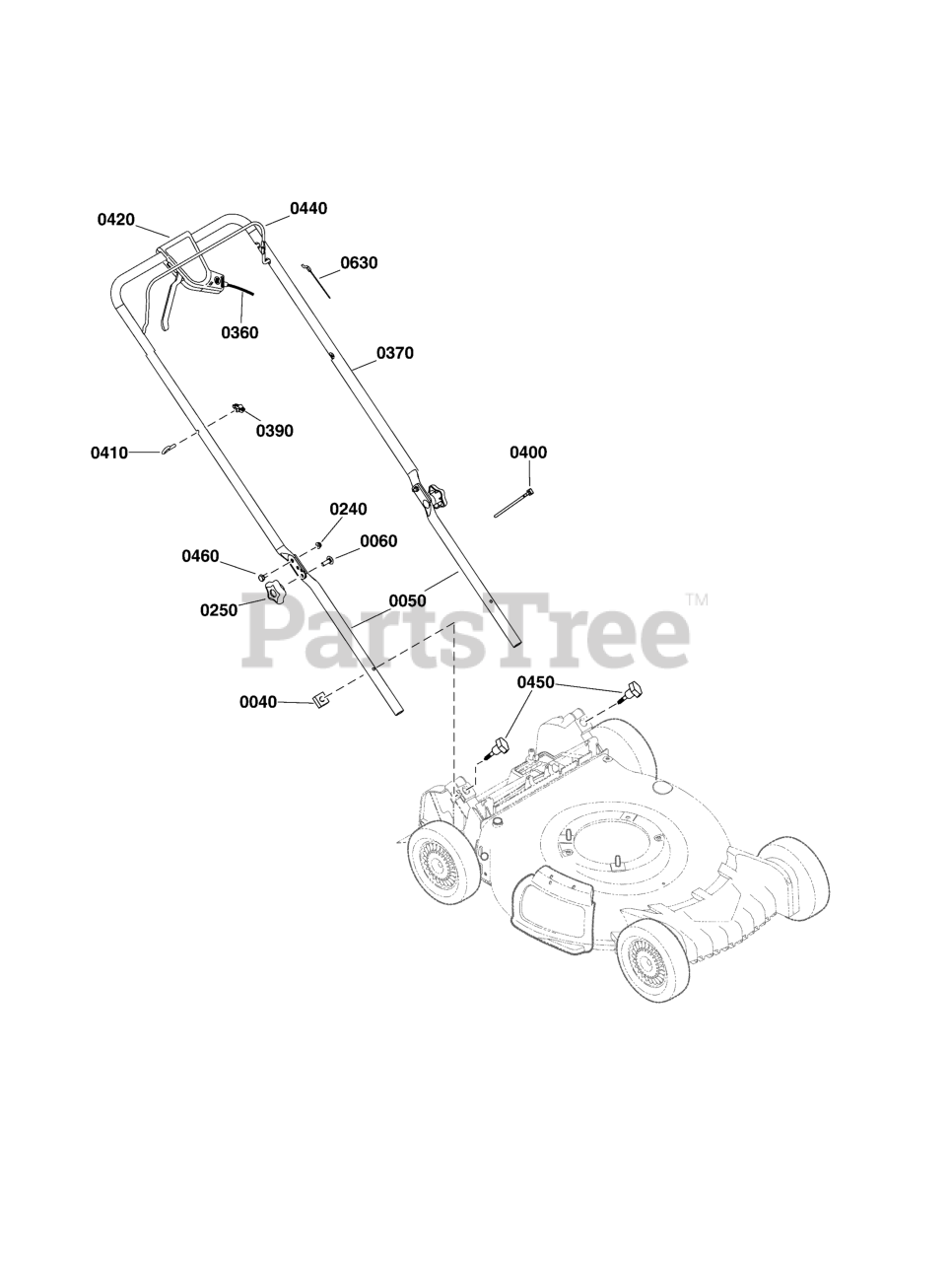

Handles Group Parts Diagram

  • Title

0040

Snapper 703486

NUT, Square, 1/4-20

$10.99

$

In Stock, only 1 left!

0

0050

Snapper 703530

HANDLE, Lower

$30.99

$

Usually ships in 2-12 days

0

0060

Snapper 703483

BOLT, Carriage, 5/16-18 X 1, GR5

$3.99

$

In Stock, only 3 left!

0

0240

Snapper 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0250

Snapper 1101453MA

KNOB, Handle, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0360

Snapper 705888

CABLE, Speed Adjustment

$48.99

$

Usually ships in 2-12 days

0

0370

Snapper 703531

HANDLE, Upper, Adjustable

$93.99

$

In Stock, Qty 5

0

0390

Snapper 1101222MA

KNOB, 1/4-20

$5.99

$

Usually ships in 2-12 days

0

0400

Snapper 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0410

Snapper 703485

GUIDE, Rope

$6.99

$

Usually ships in 2-12 days

0

0420

Snapper 703533

ASSEMBLY, Control Lever

Note: (Includes 0430, 0440, 0480 & 0620)

$46.99

$

In Stock, only 1 left!

0

0430

Snapper 772012

Control Cover Lower

Note: (Not Shown)

$

$

Currently unavailable

0440

Snapper 772011

Operator Bail Assembly

Note: (Not Shown)

$

$

Currently unavailable

0450

Snapper 707910

NUT, Wing

$13.99

$

Usually ships in 2-12 days

0

0460

Snapper 703522

BOLT, Shoulder, 1/4-20

$8.99

$

In Stock, Qty 11

0

0480

Snapper 772013

Engagement Lever

Note: (Not Shown)

$

$

Currently unavailable

0620

Snapper 772010

SCREW, #10-16 X 1.00

Note: (Not Shown)

$

$

Currently unavailable

0630

Snapper 84003265

CABLE, OPC Engine Brake

$40.99

$

Usually ships in 2-12 days

0
