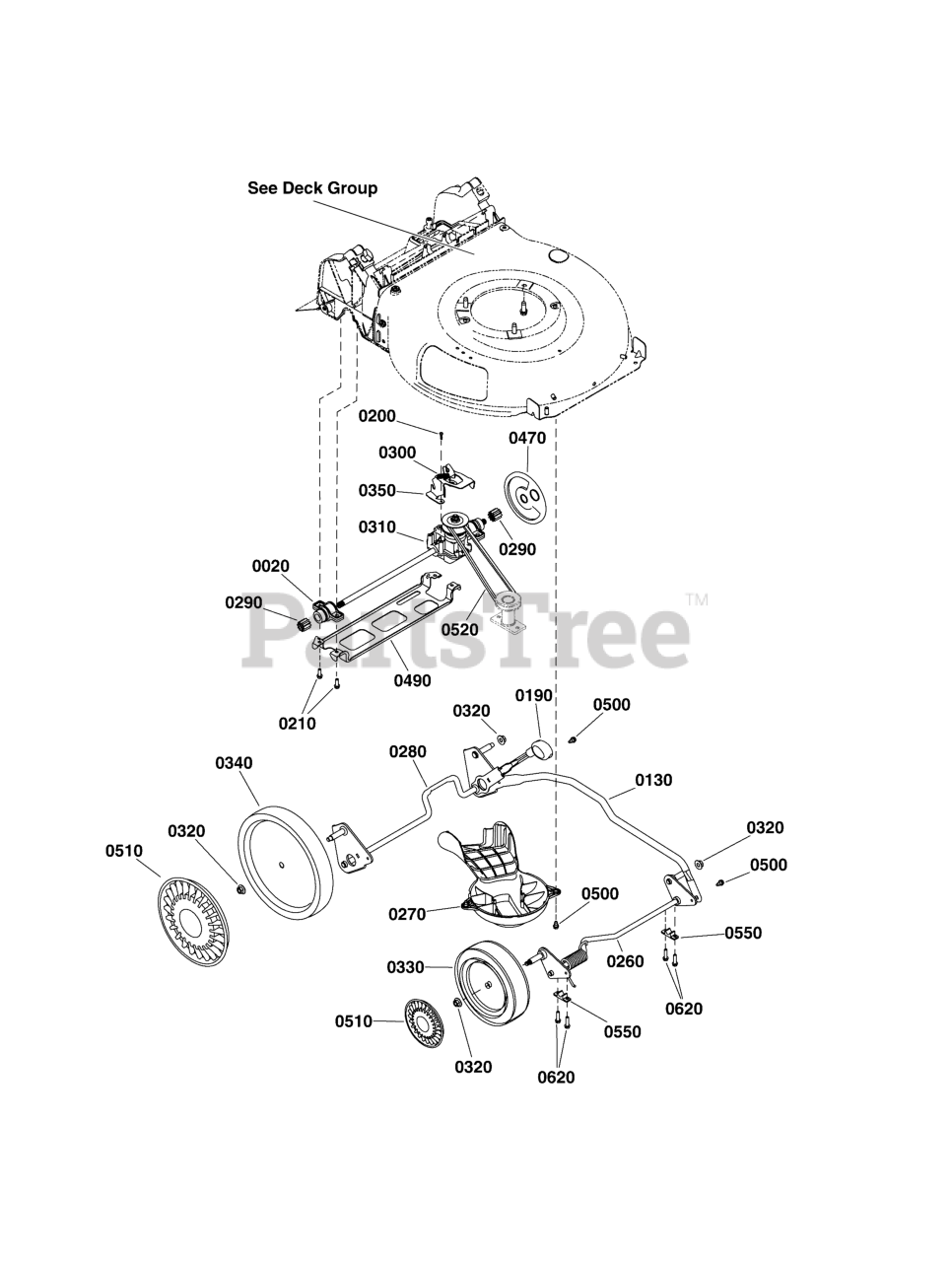

SP 90 (1696852-00) (12DVC3B7707) - Snapper 21" Walk-Behind Mower, RWD Variable, 775 Series Briggs Drive Group Parts Diagram

21" Walk-Behind Mower, RWD Variable, 775 Series Briggs

Drive Group Parts Diagram

  • Title

0020

Snapper 703469

ASSEMBLY, Bearing

$11.99

$

In Stock, only 1 left!

0

0130

Snapper 772008

LINK, Tube

$

$

Currently unavailable

0190

Snapper 703488

KNOB, Adjustment Lever

$17.99

$

Usually ships in 2-12 days

0

0200

Snapper 703479

SCREW, Hex Washer Head, .159 x .43

$7.99

$

In Stock, only 2 left!

0

0210

Snapper 7900023SM

CAPSCREW, Hex Head Flange Taptite, 1/4-15 X 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, only 3 left!

0

0260

Snapper 84003262

AXLE ASSEMBLY, Front

$110.99

$

Usually ships in 2-12 days

0

0270

Snapper 703471

BAFFLE, Engine

$52.99

$

Usually ships in 2-12 days

0

0280

Snapper 703548

AXLE ASSEMBLY, Rear

$116.99

$

Usually ships in 2-12 days

0

0290

Snapper 703555

GEAR, 10T

$9.49

$

Usually ships in 2-12 days

0

0300

Snapper 703516

SPRING, Extension, 2.405

$7.99

$

Usually ships in 2-12 days

0

0310

Snapper 707936

TRANSMISSION

$416.99

$

Usually ships in 2-12 days

0

0320

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0330

Snapper 703380

WHEEL, Front

$60.99

$

In Stock, only 1 left!

0

0340

Snapper 707906

WHEEL, Rear

$62.99

$

In Stock, Qty 16

0

0350

Snapper 703540

BRACKET, Transmission

$19.99

$

Usually ships in 2-12 days

0

0470

Snapper 703505

DUST COVER, Wheel

$8.49

$

Usually ships in 2-12 days

0

0490

Snapper 772009

Rear Support Bracket

$

$

Currently unavailable

0500

Snapper 703714

SCREW, Shoulder, 1/4-20 x 1/2

$

$

Currently unavailable

0510

Snapper 707911

HUBCAP, Front, 8" Grey

$20.99

$

Usually ships in 2-12 days

0

0520

Snapper 703374

V-BELT, 3L, 31.25"

$68.99

$

In Stock, only 2 left!

0

0550

Snapper 703524

BUSHING, Bearing, Front Crossbar

$10.99

$

Usually ships in 2-12 days

0

0620

Snapper 772010

SCREW, #10-16 X 1.00

$

$

Currently unavailable
