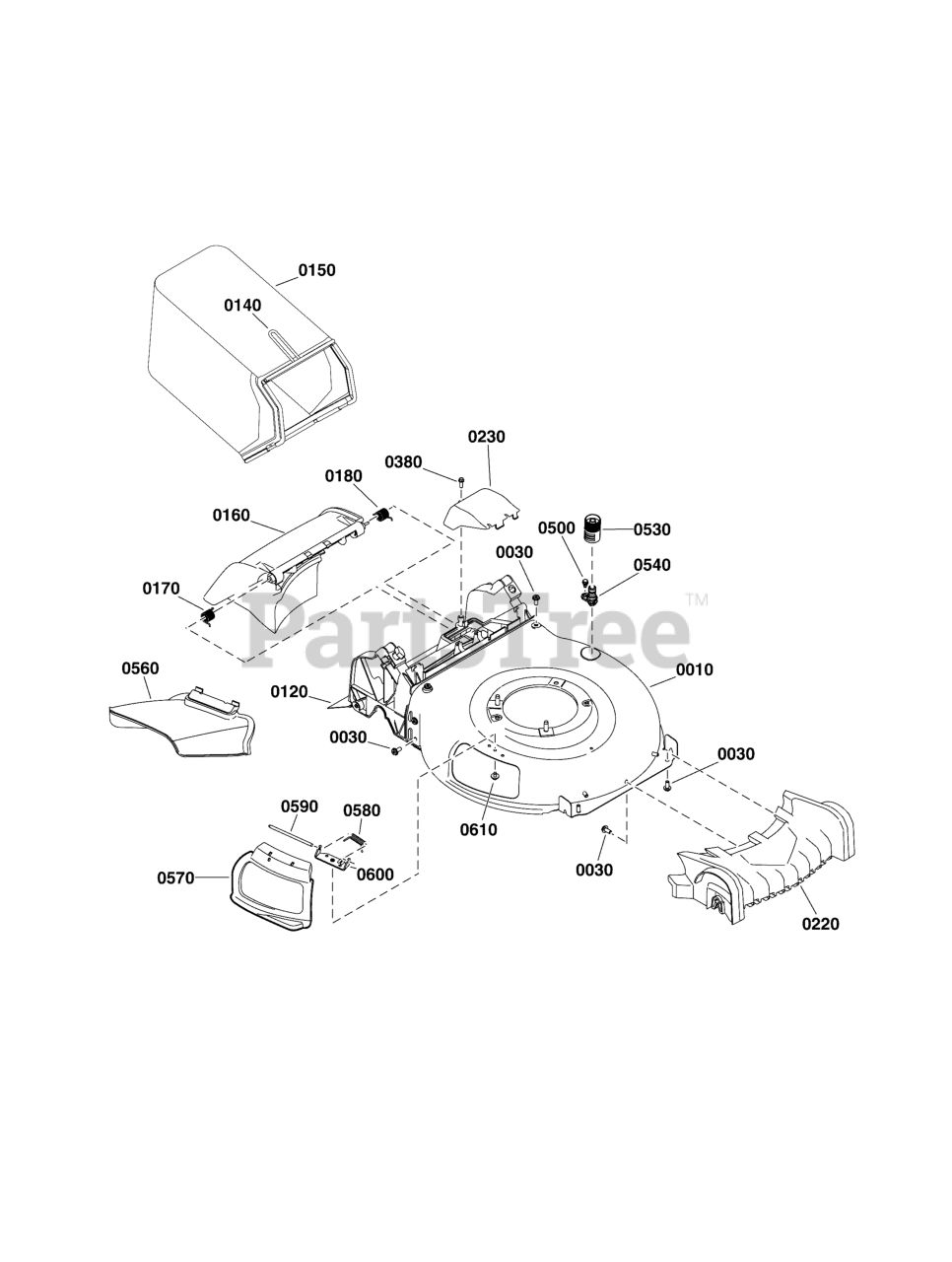

SP 90 (1696852-00) (12DVC3B7707) - Snapper 21" Walk-Behind Mower, RWD Variable, 775 Series Briggs Deck Group Parts Diagram

21" Walk-Behind Mower, RWD Variable, 775 Series Briggs

Deck Group Parts Diagram

  • Title

0010

DECK, 21"

Note: (Not Servicing)

$

$

Not available

0030

Snapper 703482

SCREW, 5/16-14 x 3/4

$7.49

$

Usually ships in 2-12 days

0

0120

Snapper 703499

SHIELD, Trailing

$18.99

$

Usually ships in 2-12 days

0

0140

Snapper 703527

FRAME, Grass Bag

$43.99

$

In Stock, Qty 17

0

0150

Snapper 703385

BAG, Grass

$137.99

$

In Stock, only 1 left!

0

0160

Snapper 703472

DOOR, Rear Discharge

$108.99

$

Usually ships in 2-12 days

0

0170

Snapper 705878

SPRING, Torsion, RH

$14.99

$

Usually ships in 2-12 days

0

0180

Snapper 705879

SPRING, Torsion, LH

$14.99

$

Usually ships in 2-12 days

0

0220

Snapper 703509

COVER, Front

$80.99

$

In Stock, only 1 left!

0

0230

Snapper 703507

COVER, Transmission

$21.99

$

Usually ships in 2-12 days

0

0380

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0500

Snapper 703714

SCREW, Shoulder, 1/4-20 x 1/2

$

$

Currently unavailable

0530

Snapper 703557

ADAPTER, Water Nozzle

$41.99

$

Usually ships in 2-12 days

0

0540

Snapper 703502

NOZZLE, Water

$5.99

$

In Stock, only 2 left!

0

0560

Snapper 703377

CHUTE, Side Discharge

$49.99

$

In Stock, only 2 left!

0

0570

Snapper 707912

MULCH PLUG

Note: (Includes 0570, 0580 & 0590)

$67.99

$

In Stock, Qty 6

0

0580

Snapper 703517

SPRING, Torsion

$13.99

$

In Stock, Qty 5

0

0590

Snapper 703529

PIN, Hinge

$10.99

$

In Stock, only 3 left!

0

0600

Snapper 703538

BRACKET, Chute Deflector

$9.49

$

In Stock, only 3 left!

0

0610

Snapper B4300GS

SCREW, Hex Washer Head, Taptite,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0
