SP 90 (1696701-00) - Snapper 21" Walk-Behind Mower, Self-Propelled, 725 Series Briggs Engine & Blade Group Parts Diagram

21" Walk-Behind Mower, Self-Propelled, 725 Series Briggs

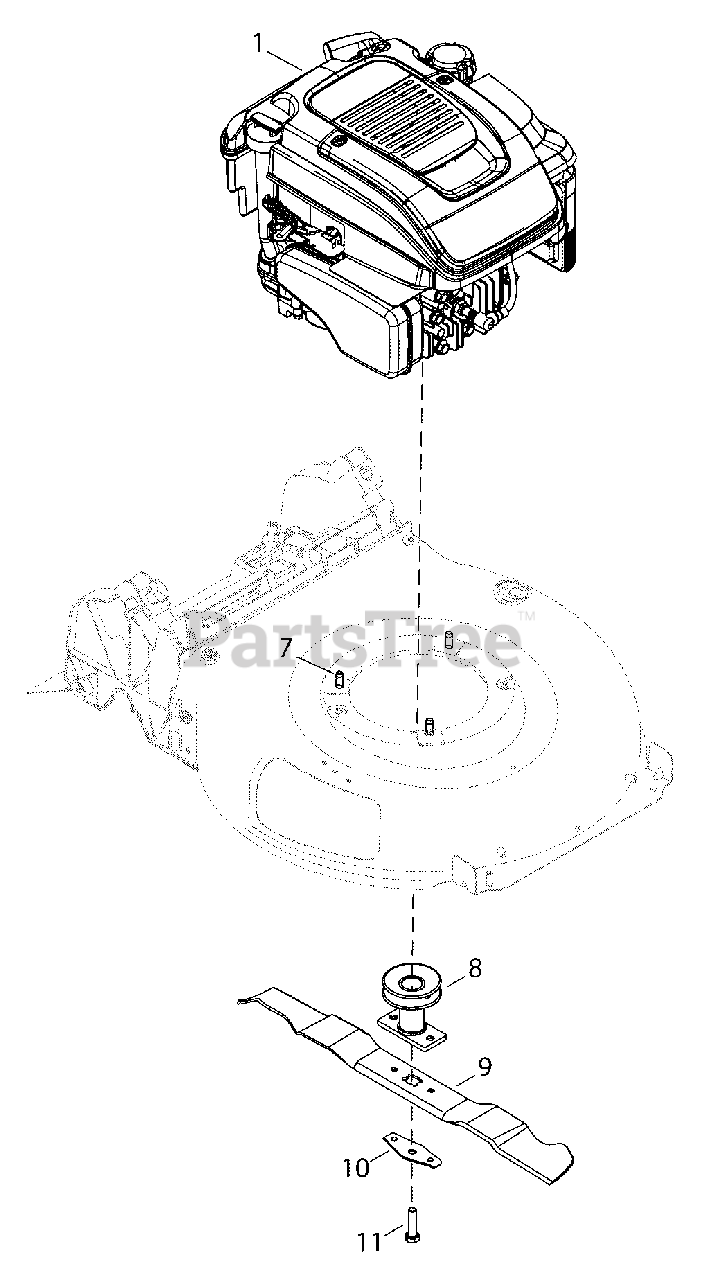

Engine & Blade Group Parts Diagram

  • Title
1

Snapper 111P02-0007-F1

* ENGINE, Briggs & Stratton, Mod. 111P02-0007-F1

$

$

Currently unavailable

7

Snapper 707904

SCREW, Engine Mounting, 3/8-16 x 1

$15.99

$

Usually ships in 2-12 days

0

8

Snapper 703475

ASSEMBLY, Blade Adapter

$68.99

$

In Stock, only 1 left!

0

9

Snapper 770508

BLADE, Mulching

$68.99

$

Usually ships in 2-12 days

0

9

Snapper 770509

BLADE, High Lift

$67.99

$

Usually ships in 2-12 days

0

10

Snapper 703520

SUPPORT, Blade Bell

$11.99

$

In Stock, only 1 left!

0

11

Snapper 01X142MA

SCREW Hex, 3/8-24 x 1-1/2

$8.49

$

In Stock, only 2 left!

0
