SP 80 (1696607-00) (12BVB2A2707) - Snapper 21" Walk-Behind Mower, FWD-HD, 725 Series Briggs (2018) Deck Group Parts Diagram

21" Walk-Behind Mower, FWD-HD, 725 Series Briggs

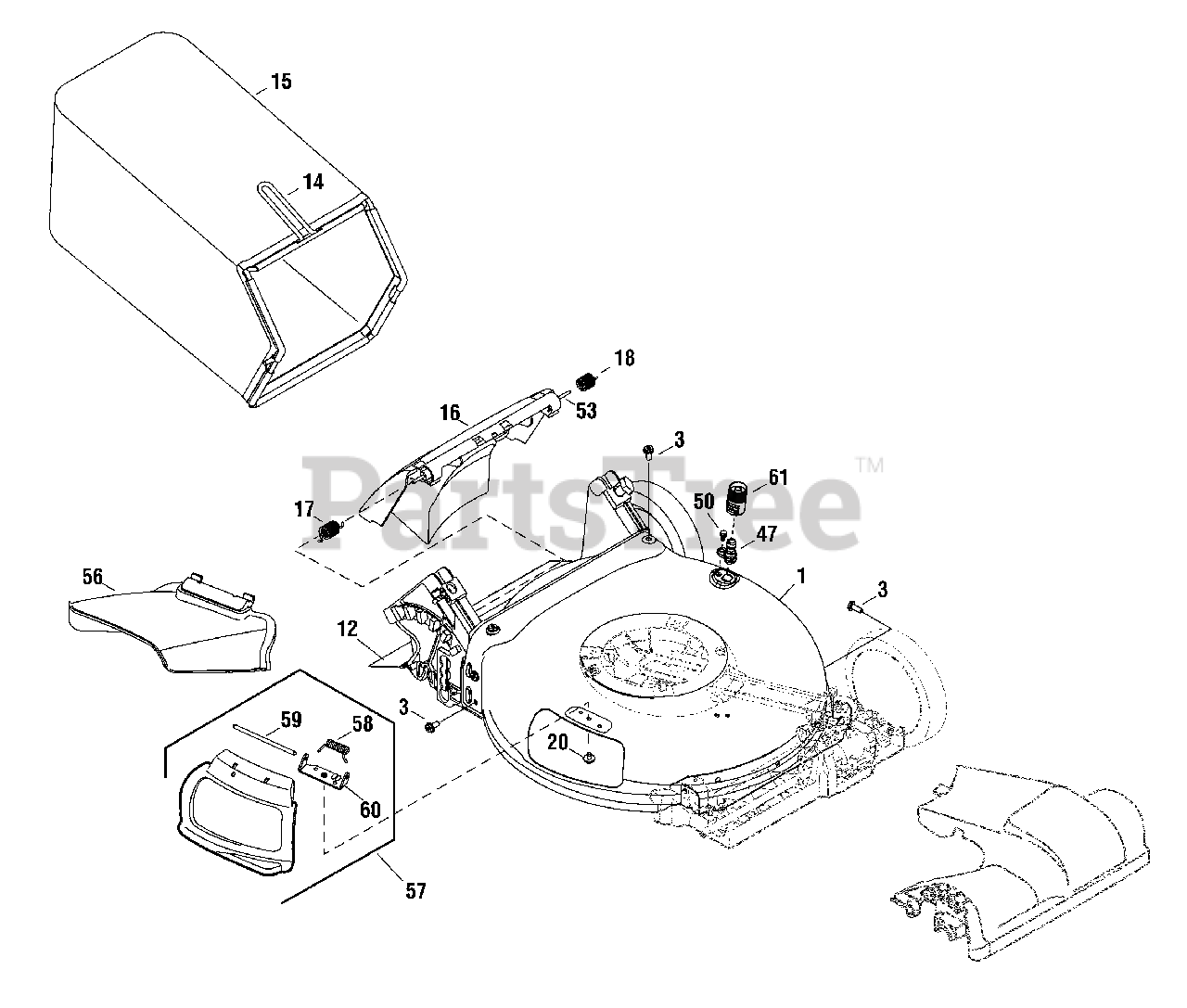

Deck Group Parts Diagram

  • Title

1

DECK, 21"

Note: Not Serviceable

$

$

Not available

3

Snapper 703482

SCREW, 5/16-14 x 3/4

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 703499

SHIELD, Trailing

$18.99

$

Usually ships in 2-12 days

0

14

Snapper 703474

FRAME, Grass Bag

$149.99

$

Usually ships in 2-12 days

0

15

Snapper 703384

BAG, Grass

$134.99

$

Usually ships in 2-12 days

0

16

Snapper 703468

DOOR, Rear Discharge

$131.99

$

Usually ships in 2-12 days

0

17

Snapper 705878

SPRING, Torsion, RH

$14.99

$

Usually ships in 2-12 days

0

18

Snapper 705879

SPRING, Torsion, LH

$14.99

$

Usually ships in 2-12 days

0

20

Snapper B4300GS

SCREW, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

47

Snapper 703502

NOZZLE, Water

$5.99

$

In Stock, only 2 left!

0

50

Snapper 703714

BOLT, Shoulder, 1/4-20 x 1/2"

$

$

Currently unavailable

53

Snapper 703525

ROD, Pivot

$6.49

$

Usually ships in 2-12 days

0

56

Snapper 703376

CHUTE, Side Discharge

$47.99

$

In Stock, Qty 9

0

58

Snapper 703517

SPRING, Torsion

$13.99

$

In Stock, Qty 5

0

57

Snapper 707912

MULCH PLUG

Note: (Includes Ref. Nos. 58, 59 & 60)

$67.99

$

In Stock, Qty 7

0

59

Snapper 703529

PIN, Hinge

$10.99

$

In Stock, only 3 left!

0

60

Snapper 703538

BRACKET, Chute Deflector

$9.49

$

In Stock, only 3 left!

0

61

Snapper 703557

ADAPTER, Water Nozzle

$41.99

$

Usually ships in 2-12 days
